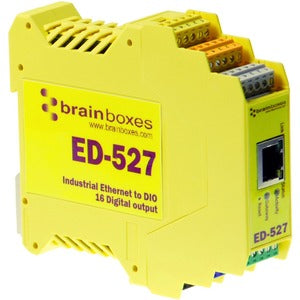

Brainboxes Ethernet to 16 Digital Outputs + RS485 Gateway

The Brainboxes Ethernet to 16 Digital Outputs + RS485 Gateway is a robust, scalable solution designed for modern automation and remote IO applications. This gateway converts Ethernet networks into versatile digital I/O control, delivering 16 non-isolated digital output channels with clean, organized wiring through four groups of four lines, each with its own common rail. Built for performance and reliability, it integrates seamlessly into industrial environments, enabling precise control of machines, sensors, and actuators while bridging legacy RS485 devices to modern TCP/IP networks. With a powerful ARM 80 MHz 32‑bit CPU, the gateway delivers fast, deterministic I/O updates, low-latency responses, and the processing headroom you need for complex automation schemes. Control is flexible and developer-friendly, supporting Modbus TCP for standard industrial communication, as well as simple ASCII commands for rapid prototyping and quick integration. Brainboxes also provides an extensive suite of APIs, enabling engineers to build tailored software interfaces, middleware, and cloud-ready automation workflows without sacrificing performance or reliability. Whether you’re prototyping a new automation project or deploying a mission-critical control system, this gateway provides a compact, cost-effective bridge between Ethernet, digital I/O, and RS485 devices.

• 16 digital output channels with clear grouping: The device provides 16 non-isolated digital outputs organized into four groups of four lines, each group sharing its own common rail for straightforward wiring, fault tracing, and scalable expansion in industrial panels or control cabinets. This layout makes it easy to map outputs to relays, sensors, or actuators while keeping signal integrity and wiring discipline top of mind.
• High‑performance ARM processor: An 80 MHz, 32‑bit ARM CPU powers the gateway, delivering fast and deterministic response times for real-time control tasks. The capable processor handles rapid state changes, polling, and communication traffic concurrently, reducing latency and improving the reliability of automation loops in demanding environments.
• Flexible Ethernet communication with Modbus TCP and ASCII: The gateway communicates over TCP/IP and supports standard Modbus TCP for easy integration with PLCs, HMIs, and SCADA systems. It also accepts simple ASCII commands for quick development, testing, and lightweight control scenarios, enabling rapid prototyping and flexible deployment in various network topologies.
• APIs and developer tooling for rapid integration: Brainboxes provides a suite of APIs to simplify software development, allowing engineers to build robust interfaces in their preferred languages and platforms. Whether you’re integrating with Windows, Linux, or cloud-based orchestration, the APIs reduce development time and help you implement reliable communication with the 16 DIO channels.
• RS485 gateway capability for legacy and field devices: Beyond Ethernet to IO, this gateway doubles as an RS485 bridge, enabling seamless communication with RS485 devices on the same network. This makes it an ideal solution for upgrading automation systems while maintaining compatibility with existing field devices, sensors, and multi-drop networks.

Technical Details of Brainboxes Ethernet to 16 Digital Outputs + RS485 Gateway

• IO configuration: 16 digital output channels, non-isolated, grouped in four channels of four with individual common rails for simplified wiring and diagnostics.
• Processing power: ARM 80 MHz, 32-bit CPU designed to support real-time I/O updates and multi‑task handling without introducing bottlenecks in control loops.
• Networking and protocols: Ethernet interface with TCP/IP stack; supports Modbus TCP for standard industrial integration and ASCII commands for quick testing and lightweight control.
• Software and APIs: Comes with a suite of Brainboxes APIs and example code to accelerate development, enabling rapid integration into diverse software environments and automation ecosystems.
• RS485 gateway function: Acts as a gateway between Ethernet and RS485 networks, allowing control and data exchange with RS485 devices without additional bridging hardware.
• Target applications: Ideal for factory automation, building management systems, test benches, remote monitoring, and situations requiring reliable, scalable digital I/O alongside RS485 interoperability.

How to install Brainboxes Ethernet to 16 Digital Outputs + RS485 Gateway

• Prepare and mount: Identify a suitable enclosure or rack space for the gateway in your control panel. Ensure adequate ventilation and secure mounting to minimize vibration and impact from the environment.
• Connect power and network: Attach the device to a stable power source and connect an Ethernet cable to your local network or management segment. Confirm the device powers on and reaches the network promptly.
• Configure network settings: Set a static IP address or enable DHCP as required by your network policy. Use the provided configuration utility or console interface to confirm network accessibility and ensure the gateway is reachable from your SCADA or PC.
• Define I/O mapping and protocol settings: Configure the 16 DIO channels mapping to outputs and assign the Modbus TCP address space or ASCII command interface as per your integration plan. Specify group common rails and any required pull-ups or pull-downs according to your wiring diagram.
• Test and validate: Use Modbus TCP requests or ASCII commands to toggle outputs, verify responses, and confirm timing characteristics align with your control requirements. Validate wiring, external relays, or actuators to ensure proper operation before full deployment.
• Integrate with your application: Leverage the Brainboxes APIs or standard Modbus TCP to integrate with your SCADA, MES, or custom software. Run end-to-end tests across the network to ensure reliability under real operating conditions.

Frequently asked questions

• What exactly is this device? It is an Ethernet‑based gateway that provides 16 digital output channels (non‑isolated) and includes an RS485 gateway function, designed to bridge Ethernet networks with RS485 devices and four‑channel output groups for clean wiring and scalable automation.
• How many outputs does it have? The unit offers 16 digital output channels, arranged as four groups of four lines, each group sharing its own common rail for straightforward circuit wiring and clear fault isolation.
• Are the outputs isolated? No. The 16 digital outputs are non-isolated, so you should plan external isolation strategies if your application requires electrical isolation between circuits.
• What communication protocols are supported? The gateway supports Modbus TCP over Ethernet for standard industrial communication, along with simple ASCII commands for rapid testing and lightweight control. Brainboxes APIs are also available for custom software integration.
• Can it connect to RS485 devices? Yes. The gateway functions as an RS485 gateway, enabling communication with RS485 devices on the same network and allowing integration with legacy equipment while using Ethernet for control and data exchange.
• What are common use cases? Typical applications include factory automation, remote I/O control, building management systems, test benches, and any scenario requiring reliable digital I/O with Ethernet connectivity and RS485 compatibility.
