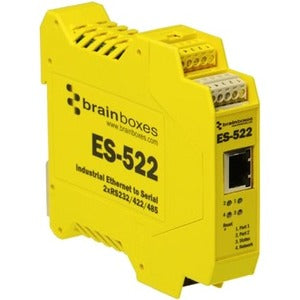

Brainboxes Industrial Ethernet to Serial 2xRS232/422/485

BrainboxesSKU: 3352887

Price:
Sale price$412.38

Description

Brainboxes Industrial Ethernet to Serial 2xRS232/422/485

Meet the Brainboxes Industrial Ethernet to Serial adapter, a rugged two-port bridge that delivers reliable, flexible serial connectivity over Ethernet for demanding industrial environments. Designed to connect modern IP networks to legacy serial devices, this compact device is ideal for factory automation, remote telemetry, and SCADA integrations. The ES-522 model (2-port) offers software-selectable configurations that adapt to RS232, RS422/485 full duplex, or RS422 half duplex, giving you the exact serial topology your equipment requires while preserving network efficiency and data integrity. Built with a slim, end-on enclosure, removable screw-terminal blocks for easy on-site wiring, and a robust DIN rail mounting option, it is engineered to withstand harsh industrial conditions and to install quickly in control cabinets or on equipment racks.

  • Two independent serial ports with software-selectable modes: RS232, RS422/485 (full duplex), or RS422 half duplex, enabling flexible, scalable serial architectures without swapping hardware.
  • Ethernet-to-Serial bridging for remote device management and networked data collection, allowing seamless integration of serial devices into modern networks and cloud-enabled monitoring systems.
  • Removable screw-terminal blocks for fast, secure wiring and simplified field maintenance, combined with a slim, end-on case and integral DIN rail mounting for space-saving installations.
  • Rugged, industrial-grade design optimized for harsh environments, offering a robust solution for factory floors, outdoor enclosures, and mobile equipment (exact operating range available in official specifications).
  • User-friendly configuration and management through standard network tools and Brainboxes utilities, enabling straightforward port setup, baud rates, parity, and timing to match your serial devices and application requirements.

Technical Details of Brainboxes Industrial Ethernet to Serial 2xRS232/422/485

  • Ports: 2 serial channels with software-selectable operation as RS232, RS422/485 (full duplex), or RS422 half duplex.
  • Interface: Ethernet to Serial bridge that enables serial devices to communicate over a TCP/IP network.
  • Wiring: Removable screw-terminal blocks for easy field connections to RS-232/RS-422/RS-485 devices.
  • Mounting: Slim end-on enclosure with integral DIN rail mounting for flexible installation and space efficiency.
  • Environment: Industrial-grade housing designed to withstand a demanding production environment; exact temperature and environmental specs are listed in the official specifications for the SKU/UPC.
  • Power and regulations: Power requirements and regulatory compliance are provided in the official specifications; consult the SKU/UPC documentation for exact values and approvals.

How to install Brainboxes Industrial Ethernet to Serial 2xRS232/422/485

Installing the Brainboxes ES-522 is a straightforward process that minimizes downtime and maximizes reliability in automated systems.

Step 1: Plan the installation. Identify the two serial devices that will connect to the ES-522 ports and determine whether each link will use RS232, RS422 full duplex, or RS422 half duplex. Check that your Ethernet network has appropriate IP addressing and that you have the necessary configuration tools from Brainboxes or your network management software.

Step 2: Mount the device. Attach the ES-522 to a suitable DIN rail or panel location. If you are using the removable screw-terminal blocks, ensure the chassis is accessible for easy wiring and future maintenance. The compact, end-on design helps you fit the unit into tight control cabinets or equipment enclosures.

Step 3: Wire the serial connections. Connect your RS-232 or RS-422/485 devices to the corresponding screw terminals as required. For RS-422/485, observe the correct A/B differential lines and termination recommendations if your network requires biasing or line termination. Verify pinouts against your devices to prevent cross-wiring and ensure stable signal integrity.

Step 4: Connect Ethernet and power. Run an Ethernet cable from your network switch or gateway to the ES-522’s Ethernet port. Provide the appropriate power supply per the official specifications. Powering the unit will initiate the boot process and prepare it for configuration.

Step 5: Configure port settings. Use the Brainboxes configuration utility or the connected network management tool to assign IP settings (static or DHCP as supported), select the desired serial mode for each port (RS232, RS422/485 full duplex, or RS422 half duplex), and configure baud rate, data bits, parity, and stop bits to match the connected devices. Save the configuration and reboot if required.

Step 6: Validate operation. Test each serial link with a terminal program or SCADA/HMI software to confirm that data is transmitted correctly over the Ethernet bridge. Check for data integrity, latency, and any error indicators in the device’s status or management interface. If issues arise, revisit wiring and serial parameters to ensure compatibility with your devices.

Step 7: Integrate into the workflow. Once validated, document the configuration for ongoing maintenance and integrate the ES-522 into your network topology, firewall rules, and monitoring dashboards to ensure continuous visibility and control over your serial-enabled assets.

Frequently Asked Questions

  • What does the Brainboxes Industrial Ethernet to Serial 2xRS232/422/485 do? It is a rugged two-port Ethernet-to-serial bridge that lets you connect serial devices to an Ethernet/IP network, with ports configurable as RS232, RS422/485 in full or half duplex modes, enabling flexible industrial communication architectures.
  • Which serial standards are supported on the ports? Each port can be software-selected as RS232, RS422/485 full duplex, or RS422 half duplex, allowing straightforward adaptation to point-to-point, multi-drop, or networked serial topologies.
  • Can it be mounted on a DIN rail? Yes. The device is designed with an integral DIN rail mount and a slim end-on enclosure, making it ideal for control cabinets and compact enclosures.
  • What about operating conditions? The unit is built for industrial use in harsh environments; exact temperature and environmental specifications are provided in the official SKU/UPC specifications. This ensures reliable operation across typical industrial temperature ranges and voltages.
  • How do I configure and manage the device after installation? Configuration is performed through Brainboxes’ configuration utilities and standard network management tools. You can set IP address, port modes, baud rate, parity, and other serial parameters to align with your devices and application needs, with ongoing status monitoring available via the management interface.
