Description

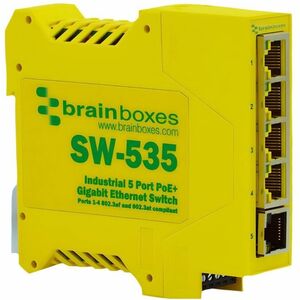

The Brainboxes SW-535 is a compact, rugged industrial Ethernet switch engineered to streamline IP-based networks in demanding environments. This 5-port PoE+ Gigabit switch is purpose-built for CCTV, vision systems, and industrial IoT deployments where reliable, continuous power and data connectivity matter most. With automatic data speed detection across 10/100/1000 Mbps, effortless PoE power delivery, and a robust chassis that stands up to vibration, dust, and temperature extremes, the SW-535 helps you deploy complex surveillance and sensing networks with fewer components and less maintenance. Whether you’re deploying a campus security system, an autonomous manufacturing line, or a logistics hub, this switch brings dependable, plug‑and‑play performance to the edge of your network. The solution is designed to minimize installation time, reduce cable clutter, and improve overall network reliability in environments where downtime is simply not an option.
- Compact industrial design: The SW-535 combines a small footprint with a sturdy, purpose-built enclosure, allowing easy integration into control panels, cabinets, or compact racks. Its rugged construction is optimized for continuous operation in harsh environments where space is at a premium and equipment endures routine vibrations and exposure to dust.
- 5-port PoE+ Gigabit Ethernet: Power up compatible IP cameras, sensors, access points, and other PoE-enabled devices directly from the switch, eliminating the need for separate power injectors or outbound power runs. This simplifies cabling, reduces installation time, and lowers total system cost in CCTV and vision-system deployments.
- Automatic speed negotiation: Each port automatically negotiates the best available speed (10/100/1000 Mbps) to ensure optimal performance for all connected devices without manual configuration, catering to both older equipment and high-bandwidth cameras or sensors.
- Industrial temperature tolerance: Designed to operate reliably from -40°C to +70°C (-40 to +158°F), the SW-535 remains functional in extreme environments such as heated machinery rooms, cold storage areas, or outdoor enclosures when sheltered, delivering dependable performance where consumer-grade switches would fail.
- Unmanaged, plug-and-play operation: No complex setup required. Simply connect power and Ethernet cables, plug in PoE devices, and the SW-535 takes care of itself, providing stable data connectivity and PoE power with minimal maintenance.
Technical Details of Brainboxes SW-535
- Port configuration: 5 x Gigabit Ethernet ports with PoE+ on each port to power IP cameras, sensors, wireless access points, and other PoE-enabled devices directly from the switch.
- Data transfer and speed: Auto-negotiates speeds on each port to 10/100/1000 Mbps, ensuring compatibility with legacy equipment and high-bandwidth video streams without manual settings.
- PoE+ capability: Built-in PoE+ support simplifies deployments by delivering power over the same Ethernet cables used for data, reducing extra wiring and enhancing installation flexibility in CCTV and industrial networks.
- Construction and reliability: Industrial-grade enclosure designed for robust operation in demanding environments, with protection against the typical electrical disturbances found in factory settings.
- Operating temperature: -40°C to +70°C (-40 to +158°F), enabling operation in a wide range of climates and industrial conditions without requiring climate control in every installation.
- Mounting: Compact footprint suitable for panel mounting or DIN-rail integration, making it straightforward to incorporate into existing industrial enclosures and control panels.
- Management: Unmanaged, plug-and-play device that requires no software configuration or network management tools, ideal for CCTV headends, edge deployments, and quick-turn installations.
- Protection and reliability: Engineered to handle the power and data demands of busy industrial networks, with considerations for surge resilience and stable operation in industrial environments (consult official documentation for exact electrical protection specifications).
how to install Brainboxes SW-535
- 1. Mount the SW-535 in a suitable enclosure or panel where heat can dissipate and cables can be routed cleanly. Ensure the installation meets the environmental requirements for -40°C to +70°C operation.
- 2. Connect PoE-enabled devices (cameras, sensors, APs) to the 5 Ethernet ports on the switch, routing data and power through the same cables where applicable.
- 3. Run a standard Ethernet uplink from one port (or another network device) to your core network to provide data access across the broader system.
- 4. Provide the appropriate power to the SW-535 according to the product’s manual, ensuring a stable power source suitable for industrial deployments.
- 5. Power on the switch and verify each connected PoE device powers up and establishes a link. Confirm that the LED indicators reflect active connections and that data passes correctly without manual configuration.
Frequently asked questions
- Q: What is the Brainboxes SW-535 designed for? It is an industrial 5-port PoE+ Gigabit Ethernet switch built to simplify and ruggedize CCTV, vision systems, and other PoE-enabled deployments in harsh environments.
- Q: How many PoE+ ports does it have? The SW-535 provides PoE+ on all five Gigabit Ethernet ports, enabling direct powering of compatible devices from the switch.
- Q: What speeds are supported? Each port auto-negotiates to 10, 100, or 1000 Mbps, ensuring compatibility with a range of devices from older cameras to modern high-bandwidth IP cameras.
- Q: What is the operating temperature range? The device is rated for -40°C to +70°C (-40 to +158°F), making it suitable for extreme industrial environments.
- Q: Is the SW-535 easy to deploy? Yes, it is unmanaged and plug‑and‑play, designed for rapid deployment with minimal setup, perfect for CCTV and vision-system installations.
- Q: Can the switch be mounted in a DIN rail or panel? Yes, the compact design supports typical industrial mounting methods such as panel mounting or DIN-rail installation, depending on the enclosure and hardware used.
