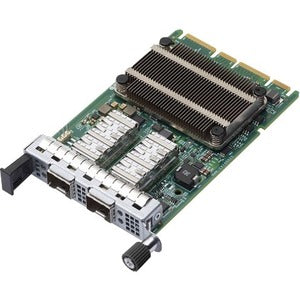

Broadcom Dual-Port 10 Gb/s Ethernet PCI Express 3.0 x8 OCP 3.0 SFF Network Adapter

The Broadcom Dual-Port 10 Gb/s Ethernet PCI Express 3.0 x8 OCP 3.0 SFF Network Adapter is a state-of-the-art solution tailored for high-speed networking. This advanced network adapter harnesses the latest technology to deliver exceptional connectivity and reliability for servers, clients, and workstations. With its dual-port functionality, this adapter not only optimizes space but also enhances performance, making it an ideal choice for any OCP-compliant system.

• Dual-Port Capability: Experience seamless networking with two SFP+ network connectors, allowing simultaneous connections to two network ports through a single expansion slot, optimizing both space and performance.
• High-Speed Data Transfer: Featuring an impressive data rate of 10 Gb/s per port, this adapter ensures rapid and efficient data transmission, providing a reliable networking experience.
• Advanced Compatibility: Fully compliant with PCI Express 3.0 x8 and OCP 3.0 Design Specifications, this adapter supports a diverse range of optical modules and copper direct-attach cables, ensuring exceptional versatility.
• Enhanced Features: Equipped with advanced technologies such as SR-IOV, TruFlow™ flow processing engine, and various offloads including TCP segmentation offload (TSO) and receive-side scaling (RSS), this adapter minimizes CPU load while maximizing performance.
• Robust Performance: The integration of the Broadcom BCM57412 MAC controller enhances the adapter's capabilities, supporting Jumbo frames up to 9 KB and advanced congestion avoidance for optimal performance with heavy data loads.

Technical Details of Product

• Model: BCM957412N4120C
• Interface: PCI Express 3.0 x8
• Data Rate: 10 Gb/s per port
• Ports: Dual-port SFP+
• Jumbo Frame Support: Yes, up to 9 KB
• Virtual Functions (VFs): Up to 128
• Supported Protocols: IPv4, IPv6, TCP, UDP
• Wake-on-LAN: Yes
• DCB Support: Yes

How to Install

1. Ensure your system is powered off and unplugged.
2. Open the computer case to access the PCI Express slots.
3. Locate an available PCI Express 3.0 x8 slot.
4. Carefully insert the Broadcom Dual-Port 10 Gb/s Ethernet Adapter into the slot until it is firmly seated.
5. Secure the adapter to the case with screws if necessary.
6. Close the computer case and reconnect the power supply.
7. Power on your computer and install the necessary drivers for the adapter from the manufacturer's website.

Frequently Asked Questions

• What is the maximum data transfer rate of the Broadcom Dual-Port Adapter? This adapter supports a maximum data transfer rate of 10 Gb/s per port.
• Is this adapter compatible with my existing network setup? Yes, this adapter is compatible with a wide range of optical modules and copper cables, making it suitable for various network environments.
• Can I use both ports simultaneously? Yes, you can utilize both ports at the same time to increase network throughput and redundancy.
• What type of cables can I use with this adapter? You can use SFP+ optical transceivers and copper direct-attach cables with this adapter.
• Does this adapter support Virtual LANs (VLANs)? Yes, it supports VLAN insertion and removal as well as various offloading features to optimize network performance.
