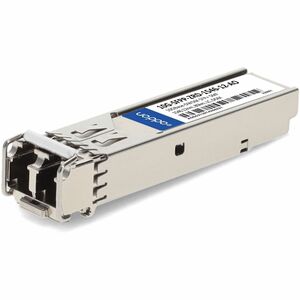

Brocade 10G-SFPP-ZRD-1546-12 DWDM SFP+ Transceiver (SMF, 1546.12nm, 80km, LC, DOM)

Experience enterprise-grade fiber connectivity with a drop-in, TAA-compliant SFP+ transceiver engineered for 10GBase-DWDM performance. This Brocade-compatible transceiver delivers reliable, long-reach data transmission over single-mode fiber, using a precise 1546.12 nm DWDM channel to maximize bandwidth on existing DWDM networks. Built for durability in real-world data center environments, it combines robust optics with digital optical monitoring (DOM) for real-time visibility and proactive management. Whether you’re upgrading legacy links or extending your DWDM backbone, this module is designed to integrate seamlessly with 10G-capable switches and routers that support SFP+ DWDM transceivers.

• High-performance DWDM 10G+: Provides 10GBase-DWDM throughput over SMF with 100 GHz spacing, optimized for 1546.12 nm, enabling long-haul connections up to 80 km with minimal signal loss.
• Drop-in SFP+ form factor: A standard SFP+ transceiver that fits into any compatible 10G port, allowing you to upgrade or extend your network without changing existing hardware footprints.
• Wide operating temperature range: Designed to operate reliably from 0 to 70 C, ensuring stability in data centers, meet-me rooms, or edge deployments where environmental conditions vary.
• LC duplex optical interface: Uses a durable LC connector for clean, efficient fiber termination and compatibility with common DWDM fiber infrastructures.
• Digital Optical Monitoring (DOM) support: Provides real-time, granular insights into optical parameters (power, temperature, and diagnostics) to simplify maintenance and maximize uptime.

Technical Details of Brocade 10G-SFPP-ZRD-1546-12

• Data rate: 10GBase-DWDM (10.3 Gbps typical) over DWDM channels
• Wavelength: 1546.12 nm
• Distance: Up to 80 km on SMF
• Fiber type: Single-mode fiber (SMF)
• Connector: LC duplex
• Form factor: SFP+ transceiver
• Optical monitoring: DOM capable
• Operating temperature: 0 to 70 C
• Compliance: TAA-compliant; compatible with OEM 10G-SFP+ DWDM VFGs and ready for enterprise deployments
• Channel spacing: 100 GHz DWDM grid

how to install Brocade 10G-SFPP-ZRD-1546-12

Insert the transceiver into an available SFP+ slot on a 10G-capable switch or router that supports DWDM SFP+ modules. Ensure the device is powered down or the slot supports hot-swapping as per your equipment’s guidelines. Align the LC fiber pair correctly to the corresponding DWDM link, using appropriate 9/125 μm SMF cabling to maximize performance and minimize loss. After seating the SFP+ module, power up the device and verify recognition in the device OS or management software. Use DOM data to monitor link health, optical power, and temperature, and perform a basic loopback or link test to confirm end-to-end connectivity. If you’re upgrading an existing DWDM backbone, confirm that the 1546.12 nm channel aligns with your DWDM channel plan and that any filter modules are configured to allow this wavelength. For maintenance windows, log into your network management tool to confirm the transceiver’s status and capture initial diagnostics for baseline comparison.

Tips for reliable operation:

• Verify compatible hardware: Check that your switch or router supports DWDM SFP+ 10G transceivers and that the port’s firmware is up to date.
• Fiber quality matters: Use clean, properly terminated SMF cables and LC duplex connectors to minimize insertion loss.
• Power budgets and fiber span: Ensure your network design accounts for attenuation over 80 km, including connector and splice losses, to maintain adequate margin.
• DOM utilization: Enable DOM monitoring if available and schedule periodic checks to catch drift in optical power or temperature, which can indicate aging components or fiber issues.
• Environmental considerations: Keep transceivers within the specified 0–70 C range and avoid exposure to excessive dust or static discharge during handling.

Frequently asked questions

Q: Is this transceiver a direct drop-in replacement for all brands that use 10G-SFPP-ZRD-1546-12?
A: It is designed as a compatible option for devices that support 10GBase-DWDM SFP+ transceivers and 1546.12 nm channels. While it is a compatible substitute for many OEM modules, always verify vendor-supported transceiver compatibility and firmware requirements for your specific switch or router model before deployment.

Q: What is the maximum link distance I can expect with this transceiver?
A: Up to 80 kilometers on single-mode fiber (SMF) when paired with appropriate DWDM infrastructure and optimal fiber quality, following your network’s attenuation budget and DWDM channel plan.

Q: Does it support DOM and what data can I monitor?
A: Yes. It supports Digital Optical Monitoring (DOM), offering real-time data on optical power, temperature, transceiver health, and other diagnostic parameters to help with proactive maintenance and faster fault isolation.

Q: What are the key environmental specifications?
A: The transceiver is designed to operate reliably in environments ranging from 0 to 70 degrees Celsius, suitable for data centers, edge deployments, and telecom backbones where climate controls may vary.

Q: Are there any special installation requirements?
A: As with any DWDM SFP+ deployment, ensure channel alignment with your DWDM grid (100 GHz spacing), use proper SMF connectors (LC), and confirm that your network device supports the 1546.12 nm DWDM channel. Maintain proper power budgets and consider using a fiber management plan to minimize stress on the fiber and connectors.
