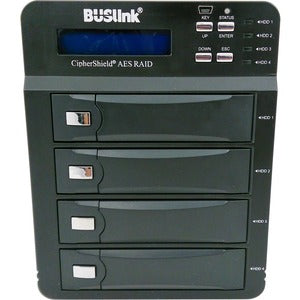

Buslink CipherShield 256-bit AES USB 3.0/eSATA 4-Bay RAID Encrypted External Hard Drive

The Buslink CipherShield 256-bit AES USB 3.0/eSATA 4-Bay RAID Encrypted External Hard Drive is engineered to deliver high-capacity storage with uncompromising security and flexible performance. Designed for professionals who demand robust data protection alongside versatile data throughput, this encrypted external drive enclosure combines hardware-level AES-256 encryption with intelligent RAID options to safeguard sensitive information while maximizing storage efficiency and transfer speeds. Whether you’re safeguarding business-critical backups, archiving large media libraries, or running secure workstations, CipherShield offers a trusted, scalable solution that grows with your needs.

• The CipherShield 256-bit AES encryption is hardware-based, providing strong data-at-rest security that protects files even if the drive is removed from the system. This means your data remains protected with a purpose-built encryption engine that handles cryptographic operations outside the host CPU, helping to preserve system performance while maintaining enterprise-grade confidentiality.
• This 4-bay RAID enclosure supports hot-swappable drive trays for convenient maintenance. You can replace or upgrade individual disks without powering down the unit (availability of hot-plug depends on the selected RAID mode). RAID configurations include RAID 0 for performance, RAID 3 and RAID 5 for redundancy with efficient parity, RAID 10 for a balance of speed and fault tolerance, and Large (JBOD) for maximizing usable capacity when redundancy isn’t required, enabling you to tailor protection and capacity to your workload.
• USB 3.0 and eSATA interfaces provide flexible, high-speed connectivity. USB 3.0 delivers rapid data transfers for everyday file operations, while eSATA offers a direct, high-performance interface for sustained throughput on supported systems. This dual-interface design gives you the versatility to connect to a wide range of hosts, editors, and backup workflows without sacrificing security or performance.
• The enclosure includes intelligent power management features, notably an HDD sleep function that conserves energy during idle periods. By reducing drive activity when not in use, CipherShield minimizes heat generation and noise, extending drive life and lowering operating costs—an ideal attribute for servers, studios, or home labs where the unit runs around the clock but workloads fluctuate.
• Designed for reliability and long-term use, CipherShield emphasizes rugged construction and straightforward maintenance. Removable drive trays simplify upgrades and expansion, while the secure RAID engine ensures data integrity through parity and redundancy schemes. This makes the 4-bay RAID external drive a practical choice for archival storage, nearline backups, and secure media libraries that demand consistent performance alongside strong protection against data loss.

Technical Details of Buslink CipherShield 256-bit AES USB 3.0/eSATA 4-Bay RAID Encrypted External Hard Drive

• Interface options: USB 3.0 and eSATA for flexible, high-speed connections
• Drive bays: 4 removable HDD trays with hot-plug capability for RAID configurations that include redundancy
• RAID support: RAID 0, RAID 3, RAID 5, RAID 10, and Large (JBOD)
• Encryption: Hardware-based CipherShield 256-bit AES encryption for data at rest
• Power management: HDD intelligent sleep function to reduce energy use during idle periods
• Drive compatibility: Supports 3.5" SATA hard drives in the removable trays

How to install Buslink CipherShield 256-bit AES USB 3.0/eSATA 4-Bay RAID Encrypted External Hard Drive

• Unpack the enclosure and ensure all four drive trays are present and clean. Prepare your 3.5" SATA hard drives for installation by verifying their health and removing any existing data if you are reconfiguring from another system.
• Open the drive tray bays and insert each 3.5" SATA HDD into a tray. Secure the drives as directed by the chassis design and reseat the trays in the enclosure.
• Choose a RAID configuration that suits your needs. If you require redundancy, select RAID levels with protection (RAID 3, RAID 5, or RAID 10). If you need maximum speed and capacity without redundancy, RAID 0 or Large (JBOD) can be considered. Use the front-panel controls or the included management software as specified in the user manual to apply the RAID settings.
• Connect the CipherShield enclosure to your computer or compatible host using either USB 3.0 or eSATA. Ensure the power supply is connected and switched on if the unit requires external power. Allow the system to detect the device and initialize the configured RAID array.
• Enable CipherShield encryption if required by your security policy. Follow the on-screen prompts or the user guide to set up a strong encryption key or passphrase. Once encryption is enabled, format the RAID volume if prompted and begin transferring data. Remember to safely catalog and store your encryption keys or passphrases in a secure password manager or vault.
• Perform a data review after the initial backup to confirm integrity, and enable routine backup schedules if needed. Maintain regular health checks on each drive and monitor the sleep behavior to balance performance with energy savings.

Frequently asked questions

• What is CipherShield 256-bit AES encryption? It is hardware-based encryption that protects data at rest by encoding information with a 256-bit AES key, ensuring the data remains secure even if the drive is removed from the system.
• How many drives does this device support? It supports 4 drives inside a removable tray enclosure, enabling multi-drive configurations with RAID options for redundancy or performance.
• Which RAID levels are available? The unit supports RAID 0, RAID 3, RAID 5, RAID 10, and Large (JBOD), giving you a choice between speed, redundancy, and capacity depending on your workload.
• Which interfaces can I use to connect the drive? You can connect via USB 3.0 for fast, flexible connectivity or via eSATA for direct, high-performance attachment to compatible hosts.
• Are the HDD trays hot-swappable? Yes, the removable trays support hot-plug replacement when using RAID configurations that include redundancy, allowing for quick drive upgrade or replacement without downtime.
