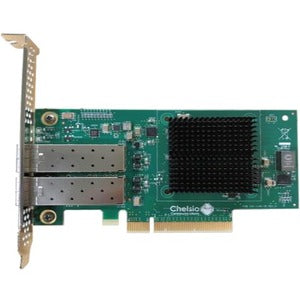

Chelsio T520-SO-CR: 2-Port Low Profile 1/10GbE Server Offload Adapter with PCI-E Gen 3 x8 and SFP+

The Chelsio T520-SO-CR is a high-performance, memory-free dual-port 10 Gigabit Ethernet Unified Wire server offload adapter designed to accelerate data center workloads with minimal CPU overhead. Built on Chelsio’s fifth-generation T5 technology, this PCI Express 3.0 offload engine delivers enterprise-grade throughput, low latency, and deterministic performance for cloud computing, virtualization, storage, and modern datacenter deployments. Its compact low-profile form factor and SFP+ connectors empower dense server configurations, enabling flexible cabling options and scalable networking in 1U and 2U rack environments. Whether you’re deploying virtualized environments, hyperconverged infrastructure, or high-performance data services, the T520-SO-CR offers a proven combination of speed, efficiency, and reliability that helps teams meet demanding SLAs while reducing data path overhead.

• Unified Wire offload for cloud and virtualization: The T520-SO-CR consolidates essential network processing into the NIC, reducing host CPU load and freeing precious compute cycles for applications, databases, and virtual machines. This translates into lower latency, smoother VM migrations, and higher overall system throughput in multi-tenant environments.
• Low-profile PCIe Gen3 x8 design: The card is engineered for dense server chassis with a half-height bracket and a PCI Express 3.0 x8 host interface, delivering abundant bandwidth for peak 10 GbE performance while fitting into compact data-center hardware footprints.
• Dual 10GbE ports with SFP+ connectors: Two independent 10 GbE channels provide flexible cabling through SFP+ transceivers, enabling fiber or DAC (direct-attach copper) options. This versatility supports diverse data-center topologies, including fiber backbones, leaf-spine fabrics, and virtualization clusters.
• Memory-free T5 architecture: By operating without onboard memory, the T520-SO-CR minimizes card complexity and ensures consistent latency characteristics under heavy I/O workloads, a critical advantage for latency-sensitive applications and real-time data services.
• Optimized for datacenter workloads: Designed to accelerate cloud computing, virtualization workloads, storage services (including iSCSI/offload scenarios), and virtual networking, the T520-SO-CR helps optimize performance for multi-VM hosts, containerized apps, and software-defined data centers.

Technical Details of Chelsio 2-Port Low Profile 1/10GbE Server Offload Adapter

• Model: Chelsio T520-SO-CR
• Ports: 2 x 10 GbE SFP+ ports
• Form factor: Low-profile PCIe 3.0 card with standard half-height bracket
• Host interface: PCI Express 3.0, x8 compliant
• Architecture: Memory-free T5 Unified Wire offload engine
• Connector type: SFP+ connectors compatible with a range of transceivers and DAC cables
• Operating system compatibility: Driver support for common server OSes (Linux and Windows) via Chelsio software packages and repositories
• Offload capabilities: TCP/IP offload (TOE), storage offload options, and virtualization-oriented networking features (as implemented by Chelsio drivers and utilities)
• Performance characteristics: High-throughput, low-latency networking designed for virtualization, cloud workloads, and storage acceleration
• Warranty and service: Manufacturer warranty terms available through Chelsio and authorized distributors (region dependent)

how to install Chelsio 2-Port Low Profile 1/10GbE Server Offload Adapter

Installing the Chelsio T520-SO-CR is a straightforward process that fits into standard data center deployment workflows. Follow these general steps to install and configure the card for immediate networking benefits:

• Prepare the server: Power down the server, unplug power cables, and open the chassis. Ground yourself to prevent static discharge and verify that you have an available PCIe slot suitable for a low-profile x8 card.
• Insert the adapter: Insert the Chelsio T520-SO-CR into an available PCIe 3.0 x8 slot, ensuring the connector and the card align with the slot. Press firmly to seat the card and secure the bracket with a mounting screw.
• Attach transceivers or cables: Install appropriate SFP+ transceivers for your network (e.g., SR/LR optics or DAC) and connect the 10 GbE cables to your switches or storage devices. Confirm that the cabling meets your distance and compatibility requirements.
• Power up and install drivers: Reassemble the chassis, reconnect power, and boot the server. Install Chelsio drivers and management utilities from the official Chelsio website or your OS package repository. Ensure the driver version supports the T520-SO-CR and your operating system edition.
• Configure networking: Use the operating system’s network configuration tools or Chelsio utilities to assign IP addresses, enable offload features, configure VLANs, and set up any virtualization enhancements (such as SR-IOV or virtual NICs if supported by your hypervisor and driver package). Validate connectivity with ping tests and throughput benchmarks to confirm the expected performance.
• Validate and monitor: Monitor link status, offload activity, and latency using Chelsio’s monitoring utilities or standard OS performance tools. Apply any firmware updates or driver revisions as needed to maximize stability and compatibility.

Frequently asked questions

• Q: What makes the Chelsio T520-SO-CR suitable for modern data centers?
  A: It combines a low-profile, high-bandwidth dual-port 10 GbE design with memory-free T5 offload technology and Unified Wire capabilities, delivering enhanced VM performance, reduced CPU overhead, and flexible cabling for diverse data-center topologies.
• Q: Which cabling options does it support?
  A: The two SFP+ ports support a range of transceivers for fiber optic connections as well as direct-attach copper (DAC) cables, enabling fiber or copper deployments depending on your infrastructure needs.
• Q: Is this adapter compatible with virtualization platforms?
  A: Yes. The T520-SO-CR is designed for virtualization-heavy environments and works with common hypervisors when paired with the appropriate Chelsio drivers and management tools. For advanced virtualization features (like SR-IOV), verify driver and hypervisor support for your specific setup.
• Q: What operating systems are supported?
  A: Chelsio provides drivers and utilities for major Linux distributions and Windows Server editions. Always check the latest Chelsio driver package for exact OS and version compatibility before deployment.
• Q: Does this card require external power beyond the PCIe slot?
  A: No. Like most PCIe network adapters, it draws power from the PCI Express bus and does not require separate power connectors, simplifying integration in dense server environments.
• Q: How does the memory-free design affect performance?
  A: A memory-free architecture reduces NIC complexity, helps maintain predictable latency under high I/O loads, and minimizes potential bottlenecks in virtualization-heavy workloads, contributing to steadier throughput as traffic scales.
