Chief 1' x 2' Above Suspended Ceiling Storage Box with Column Drop - White

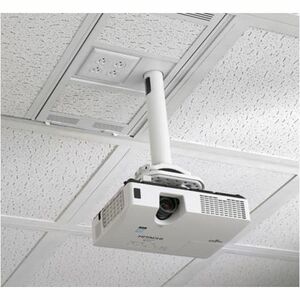

Designed for classrooms, conference rooms, and corporate training spaces, this Chief 1' x 2' Above Suspended Ceiling Storage Box with Column Drop hides AV equipment above a 2'x2' ceiling tile while seamlessly supporting a 1.5" NPT column drop. The result is a clean, professional look that minimizes clutter and keeps projectors, cables, and media gear within easy reach for setup and maintenance. Built to withstand high-traffic environments, the white finish blends with most ceiling tiles and grid systems, delivering a polished aesthetic without sacrificing accessibility or performance. This ceiling storage solution is the backbone of an organized AV setup, delivering reliability, efficiency, and rapid service access in education and business facilities.

• Concealed AV storage above the ceiling: Keeps projectors, media players, cables, and accessories tucked neatly out of sight, preserving a clean visibility-free ceiling line in classrooms and meeting rooms.
• 1.5" NPT column drop compatibility: Designed to mount projectors within the same 2'x2' ceiling tile grid, enabling a compact, integrated display system with a professional, streamlined appearance.
• Durable white finish and steel construction: Powder-coated steel provides long-lasting durability, easy cleaning, and a crisp look that stands up to daily use in educational and corporate environments.
• Efficient ceiling-mount design: Modular components and thoughtful layout maximize mounting efficiency, simplify installation, and offer straightforward access for maintenance without disrupting the room.
• Integrated cable management and service access: Built-in pathways and access points help organize cables and simplify servicing, so upgrades or adjustments can be performed quickly and safely.

Technical Details of Chief 1' x 2' Above Suspended Ceiling Storage Box with Column Drop - For Projectors - White

• Finish: White powder-coated steel
• Material: Heavy-duty steel construction
• Ceiling grid compatibility: Accepts standard 2' x 2' ceiling tile grids
• Column drop: 1.5" NPT for projector mounting within the tile grid
• Purpose: Conceals AV equipment above ceiling tiles while providing a secure mounting point for projectors inside the grid
• Intended environment: Ideal for classrooms, conference rooms, and corporate training spaces

how to install Chief 1' x 2' Above Suspended Ceiling Storage Box with Column Drop

To achieve a clean, professional setup, follow these general installation steps. Ensure power is turned off to the area and that you have the appropriate ceiling grid components and safety equipment for working above the ceiling.

1) Plan and verify compatibility. Confirm that your ceiling grid is a 2' x 2' configuration and that the space overhead can accommodate a 1.5" NPT column drop and the size of the storage box. Identify a location that allows convenient projection reach and meets cable routing needs.

2) Access and prepare the ceiling. Gently remove or pry back the relevant 2' x 2' ceiling tile within the chosen grid area to reveal the plenum above. Inspect the area for overhead structure, existing AV conduits, and any obstacles to installation.

3) Install the mounting framework. Attach the ceiling-mount framework or brackets specified for the Chief storage box to the ceiling grid or building structure as required. Ensure the framework is square, level, and securely fastened to support the weight of the box and projector assembly.

4) Connect the 1.5" NPT column drop. Install the 1.5" NPT column drop into the mounting framework, ensuring it is plumb and able to support the projector's weight. Attach any necessary projector adapter or mounting plate compatible with your projector model, aligning it with the column drop.

5) Position and secure the storage box. With the tile still out of the way, place the ceiling storage box above the tile plane and secure it to the mounting framework or grid system as directed by the installation instructions. Verify that the box sits flush with the tile edge and that all fasteners are tightened to specification.

6) Route cables and manage ventilation. Thread power, video, and control cables through built-in conduits or cable channels, keeping them organized and away from heat sources or moving parts. Ensure adequate ventilation for any enclosed AV equipment stored inside the box.

7) Reinstall tile and finalize. Reinstall the ceiling tile into the grid, ensuring a snug fit around the box and any protruding cables. Calibrate the projector alignment and zoom as needed to achieve the desired image size and focus while maintaining a clean ceiling line.

8) Test and verify. Power up the projector and AV devices, confirm alignment, check for overheating, and verify ease of service access for future maintenance. Document cable pathways and keep a spare parts or accessory kit within the storage box if provided by the installer.

Frequently asked questions

• Q: What is the primary purpose of the Chief ceiling storage box?
  A: To conceal AV equipment above a 2'x2' ceiling tile while providing a dedicated, integrated mounting point for projectors within the tile grid, resulting in a clean, professional room appearance.
• Q: What tile grid size does it fit?
  A: It is designed for standard 2' x 2' ceiling tile grids, enabling seamless integration into many classroom and conference room setups.
• Q: What projector mounting option does it support?
  A: It supports a 1.5" NPT column drop, allowing projectors to be mounted inside the same tile grid for compact, centralized projection systems.
• Q: Is the finish durable for frequent use?
  A: Yes. The unit features a white powder-coated steel finish, chosen for durability, cleaning ease, and consistent aesthetics in high-traffic spaces.
• Q: How does installation impact ceiling aesthetics?
  A: The storage box is installed above the ceiling plane, concealing AV components and keeping the visible ceiling line clean and uncluttered while maintaining quick access for servicing.
