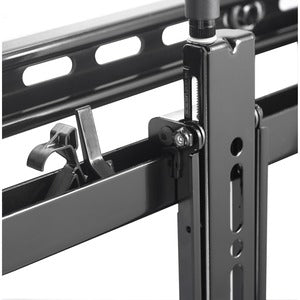

Chief ConnexSys CSAS072 Wall Mount for Menu Board, Video Wall - Black

ChiefSKU: 5600199

Price:
Sale price$136.57

Description

Chief ConnexSys CSAS072 Wall Mount for Menu Board, Video Wall - Black

Enhance the efficiency and precision of your menu board and video wall installations with Chief ConnexSys CSAS072 Wall Mount. This pre-painted black strut channel is purpose-built for seamless integration with the ConnexSys Video Wall Mounting System, enabling installers to perfectly level multiple mount rows for a clean, professional display. Whether you’re outfitting a fast-casual restaurant, a retail environment, or a corporate lobby, the CSAS072 delivers dependable support, straightforward adjustability, and a polished look that stays consistent under high-traffic use. Available in convenient pre-cut lengths of 60", 72", and 90", this component is designed to adapt to a variety of layouts while maintaining the sturdy, dependable performance that Chief products are known for.

  • Pre-painted black strut channel designed specifically for use with the ConnexSys Video Wall Mounting System, delivering a cohesive aesthetic and durable, corrosion-resistant finish for long-term commercial use.
  • Easy leveling across multiple mount rows ensures precise alignment of menu boards and video walls, reducing setup time and eliminating the frustration of sloped or misaligned displays.
  • Flexible length options include 60", 72", and 90" pre-cut lengths, allowing you to tailor the mounting framework to your wall dimensions and desired display spacing without unnecessary trimming.
  • Compact cross-section with a dimension equivalent to most W x D 1-5/8" x 13/16" profiles, enabling installation in tight spaces while maintaining strong structural support for signage systems.
  • Rugged steel construction with a durable finish provides reliable performance in busy environments, sustaining load integrity and a professional appearance across years of use.

Technical Details of Chief ConnexSys CSAS072

  • Material: Steel strut channel
  • Finish: Black powder-coated (pre-painted)
  • Available lengths: 60", 72", 90" pre-cut
  • Cross-section: Equivalent to approximately 1-5/8" W x 13/16" D
  • Mounting system compatibility: ConnexSys Video Wall Mounting System
  • Primary application: Supports menu boards and video walls in commercial installations

How to install Chief ConnexSys CSAS072

  • Plan the layout: Determine the wall surface, stud locations, and the number of mount rows you will align. Measure for the exact lengths needed (60", 72", or 90") to ensure clean, level installation across your display array.
  • Prepare the mounting surface: Use appropriate wall anchors or studs to secure the strut channel. Ensure the wall is free of obstructions and capable of bearing the combined load of the sign components and mounting hardware.
  • Install the strut channel: Attach the CSAS072 length to the wall, keeping the channel straight and level. For best results, verify alignment with a spirit level at multiple points along the length before fastening.
  • Attach ConnexSys components: Mount the ConnexSys Video Wall Mounting System to the CSAS072 channel according to the manufacturer’s instructions. Ensure all fasteners are tightened securely and that the mounting rails are parallel to each other for easy, level row alignment.
  • Level and secure: Use built-in leveling features (or external shims if required) to align each mount row precisely. After leveling, secure all connections and perform a test with the display panels to confirm stability and spacing.
  • Route cabling and finalize: Tidy any power and data cables, ensuring they are neatly managed to preserve the clean aesthetic. Double-check that all panels are securely fastened and level, then perform a final inspection before powering on the displays.

Frequently asked questions

  • Q: What is the CSAS072 designed for?
    A: It is a wall-mount strut channel built to work with the ConnexSys Video Wall Mounting System, offering precise leveling and robust support for menu boards and video walls in commercial settings.
  • Q: What lengths are available?
    A: The CSAS072 is available in pre-cut lengths of 60", 72", and 90" to accommodate a range of wall configurations and mounting plans.
  • Q: What finish does it have?
    A: The channel comes in a pre-painted black powder-coated finish for a durable, professional look and added corrosion resistance in busy environments.
  • Q: What are the cross-sectional dimensions?
    A: The cross-section is equivalent to approximately 1-5/8" wide by 13/16" deep, helping it blend with standard framing while providing strong support.
  • Q: Is it compatible with other brands?
    A: The CSAS072 is specifically designed for use with Chief’s ConnexSys Video Wall Mounting System; while it may physically interface with some compatible components, optimal performance is achieved when paired with the ConnexSys system.
