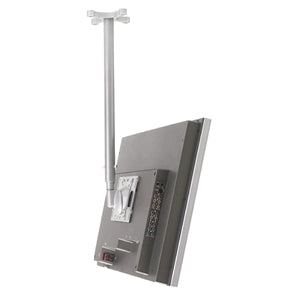

Chief FHP-110S Centris Small Flat Panel Ceiling Mount Kit

The Chief FHP-110S Centris Small Flat Panel Ceiling Mount Kit offers a sleek, space-saving ceiling solution designed for compact displays. Built on Chief’s trusted Centris platform, this mount delivers precise, fluid motion and secure support for VESA 75x75 and 100x100 displays. The kit includes an adjustable column, two snap-on cable management covers, and a range of screen positioning options to create a clean, professional presentation in conference rooms, classrooms, retail environments, and control rooms. With its slender column and refined finish, the FHP-110S blends into modern interiors while providing dependable performance and flexible installation.

• Centris motion and positioning: Engineered for smooth tilt, pan, and rotation, the Centris mechanism delivers precise, controlled movement so you can find the perfect viewing angle without fuss. This capability is ideal for presentations, collaborative workspaces, and public displays where exact screen positioning matters.
• Compact, adaptable design: The slender column and compact ceiling-mount footprint maximize usable space while maintaining a strong, secure hold on small to mid-size flat panels. The kit is purpose-built for venues that demand a low-profile solution with maximum flexibility.
• VESA compatibility and mounting versatility: The FHP-110S supports common VESA 75x75 and 100x100 mounting patterns, enabling quick, universal compatibility with a wide range of 13–27 inch displays. This makes it ideal for upgrading classrooms, meeting rooms, kiosks, and showroom displays without replacing existing mount hardware.
• Cable management for a clean look: Two snap-on cable management covers help conceal power and data cables for a tidy, professional appearance. The covers snap directly into the mount, delivering a polished finish that reduces visual clutter on the ceiling plane.
• Quality build and easy installation: Constructed from durable materials with a refined satin finish, the FHP-110S is designed for long-term reliability and simple installation. The included components and clear mounting options streamline setup, enabling fast deployment in busy environments.

Technical Details of Chief FHP-110S Centris Small Flat Panel Ceiling Mount Kit

• Display compatibility: VESA patterns 75x75 mm and 100x100 mm
• Mounting type: Ceiling mount with an adjustable column for versatile installation in various room heights
• Positioning options: Multiple screen positioning configurations enabled by the Centris system, including tilt, pan, and rotation to optimize viewing angles
• Cable management: Two snap-on cable management covers for a clean, cable-concealed installation
• Construction and finish: Slim, high-strength column and mounting arms with a satin aluminum finish for a modern, low-profile look
• Compatibility notes: Designed to accommodate a range of small flat-panel displays; verify specific load ratings and VESA compatibility on the official product sheet

how to install Chief FHP-110S Centris Small Flat Panel Ceiling Mount Kit

Follow these steps to install the Chief FHP-110S Centris Small Flat Panel Ceiling Mount Kit with confidence. This guide emphasizes safe, sturdy mounting and optimal display positioning for professional environments.

• Prepare and inspect components: Unpack the kit and verify that all parts are present. Inspect mounting components for any signs of damage. Gather the necessary tools as specified in the instruction manual, including a stud finder and appropriate anchors for the ceiling material.
• Identify a secure ceiling location: Use a stud finder or confirm structural support in the ceiling to ensure a solid mounting point. The adjustable column requires a strong, stable ceiling anchor to support the display’s weight and movement.
• Attach the ceiling plate: Mount the ceiling plate to the structural surface following the manufacturer’s recommended spacing and fastener guidelines. Ensure the plate is level before proceeding.
• Connect the adjustable column: Secure the adjustable column to the ceiling plate, ensuring all connection points are tightened to prevent play or movement. Verify that the column can smoothly extend and retract as needed.
• Attach the display adapter and mounting arms: Align the display adapter with the VESA pattern on the back of your monitor or TV. Secure the mounting arms to the adapter and then attach the assembly to the lower end of the column. Double-check all fasteners for tightness.
• Mount the display and route cables: Hang the display on the mounting assembly and ensure the weight is evenly distributed. Use the two snap-on cable management covers to conceal power and data cables, guiding wires through the channels to maintain a clean ceiling line.
• Adjust position and test: With the display mounted, use the Centris mechanism to tilt, pan, and rotate to the desired viewing angle. Test the system by gently moving the screen to confirm smooth operation and secure end stops.
• Finalize alignment: Re-check the level and alignment, verify cable routing, and power up the display to confirm proper operation. If needed, make small positional adjustments for optimal visibility in the room.

Frequently asked questions

• Q: What displays can be mounted with the Chief FHP-110S?
  A: The mount supports VESA 75x75 and 100x100 patterns and is intended for small to mid-size flat-panel displays. Always verify the specific display’s weight, VESA pattern, and compatibility with Chief’s official product documentation before installation.
• Q: How much weight can the FHP-110S hold?
  A: Weight capacity varies by display and installation conditions. Refer to the official spec sheet for the precise load rating and follow all installation guidelines to ensure safe operation. If your display exceeds standard limits, contact Chief support for guidance.
• Q: Is the ceiling mount suitable for all ceiling types?
  A: The FHP-110S requires a structurally sound ceiling support and appropriate anchors for your ceiling material. Use the recommended fasteners and hardware for wood joists, metal studs, or concrete ceilings, as specified in the installation manual.
• Q: Can I adjust the screen after installation?
  A: Yes. The Centris platform provides smooth tilting, swiveling, and rotational positioning to achieve optimal viewing angles. After mounting, you can fine-tune the display to fit the room’s seating arrangement and lighting conditions.
• Q: Are cable management covers included and can they be updated?
  A: Two snap-on cable management covers are included to achieve a clean, professional look. They are designed for easy removal and reattachment if you need to re-route cables or add accessories in the future.
