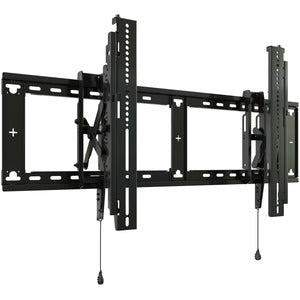

Chief Fit Large Extended Tilt Display Wall Mount — 43–86" Black

The Fit series RLXT3 is a heavy‑duty, large extending tilt display wall mount designed to securely hold 43" to 86" displays. This next‑generation wall mount blends robust construction with sleek, low‑profile aesthetics, delivering a powerful combination of strength, versatility, and precise alignment. Ideal for residential theaters, corporate conference rooms, education spaces, and digital signage, this mount supports expansive mounting patterns and heavy displays while maintaining a clean, professional look. With a thoughtful design that emphasizes post‑installation leveling, easy access for service, and smooth tilt capabilities, the RLXT3 makes it simple to achieve optimal viewing angles in any room layout.

• Large extending tilt design for 43"–86" displays with mounting patterns up to 863 x 450 mm.
• Post‑installation leveling of 0.75" (19 mm) to dial in precise alignment after installation.
• Heavy‑duty wall plate engineered to support up to 150 lbs (68 kg) for broad display compatibility.
• Universal compatibility with common VESA patterns, enabling flexible mounting options for most modern flat panels.
• Durable black finish and robust steel construction designed for long‑term reliability in high‑use environments.

Technical Details of Chief Fit Large Extended Tilt Display Wall Mount

• Display compatibility: 43"–86" typical displays
• VESA mounting patterns supported: up to 863 x 450 mm
• Weight capacity: up to 150 lbs (68 kg)
• Post‑installation leveling: 0.75" (19 mm)
• Finish and construction: Black, steel design with durable coating

How to install Chief Fit Large Extended Tilt Display Wall Mount

Installing the Chief Fit Large Extended Tilt Wall Mount is straightforward when you follow these general steps. Always refer to the included installation guide and use appropriate hardware rated for your wall type and the weight of your display.

1) Plan a safe mounting location. Determine the wall where the display will be mounted, locate studs, and confirm clearance for extended reach and tilt. Use a stud finder to identify solid framing and mark the exact mounting points according to the wall plate template.

2) Attach the wall plate. With the wall plate aligned to the marked studs, secure it to the wall using the provided hardware designed for your wall type. Ensure the plate is level, since the RLXT3 offers post‑installation leveling to finalize precise alignment.

3) Prepare the display mounting hardware. Attach the compatible mounting arms to the back of your display using the correct VESA pattern and hardware. Ensure that the weight is evenly distributed and that all fasteners are tight, but do not overtighten.

4) Hang and connect. With assistance, lift the display and engage it with the wall plate or mounting arms according to the RLXT3 installation instructions. Verify secure engagement and begin with the default tilt position before adjusting.

5) Level, extend, and tilt. Use the post‑installation leveling feature to achieve perfect horizontal alignment. Then, adjust the extension and tilt to find the ideal viewing angle for your space, ensuring clear clearance from walls, furniture, and ceilings. Once satisfied, tighten all adjustment knobs and verify the display remains securely mounted.

6) Final checks. Confirm all fasteners are tightened to the recommended torque, test the range of motion (tilt and extension), and re‑check level after a period of use. Proper setup ensures reliable performance and reduces vibration or misalignment over time.

Note: Always follow safety guidelines and use a second pair of hands when mounting large displays. If you’re unsure about wall strength or mounting hardware, consult a professional installer to ensure code compliance and structural integrity.

Frequently asked questions

• Q: What display sizes does the Chief Fit Large Extended Tilt Wall Mount fit?
  A: It is designed for 43" to 86" displays with a mounting pattern up to 863 x 450 mm.
• Q: How much weight can this wall mount support?
  A: The wall plate is rated to support up to 150 lbs (68 kg).
• Q: Does the mount allow post‑installation leveling?
  A: Yes. The RLXT3 includes post‑installation leveling of 0.75" (19 mm) to ensure precise alignment after installation.
• Q: Can I adjust the viewing angle after mounting?
  A: Absolutely. The mount is designed for extended tilt and easy angle adjustment to achieve the best viewing experience while maintaining a slim wall profile.
• Q: What is the finish and build quality?
  A: The mount features a durable black finish on a robust steel construction, built to withstand frequent use in high‑traffic environments.
