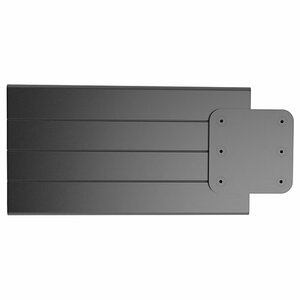

Chief FUSION FCAX14 Mounting Bracket for Flat Panel Display - Black

ChiefSKU: 3743142

Price:
Sale price$185.60

Description

Chief FUSION FCAX14 Mounting Bracket for Flat Panel Display - Black

Designed for professional-grade video wall installations, the Chief FUSION FCAX14 Mounting Bracket delivers secure support and scalable performance for flat-panel displays. This extension bracket is purpose-built to integrate with Chief’s LVM, LBM, and LCM video wall products, enabling you to reach larger displays and accommodate wider mounting patterns without compromising stability or aesthetics. The FCAX14 is a cornerstone in any Fusion-ready setup, providing a reliable, convenient mounting solution that seamlessly blends with existing Fusion components while maintaining a clean, low-profile silhouette. Whether you’re building a dynamic digital signage solution, a multi-panel control room display, or a high-impact retail installation, the FCAX14 helps you maximize space, improve visual impact, and simplify maintenance with a modular approach that scales as your needs evolve. With support for up to 60-inch displays, this bracket expands your creative options, enabling expansive, edge-to-edge configurations that captivate audiences and deliver consistent, crisp imagery across every panel.

  • Flexible compatibility within the Chief Fusion system: The FCAX14 extension brackets are designed to integrate with LVM, LBM, and LCM video wall products, enabling seamless expansion to larger displays and enabling wider mounting patterns across your video wall array. This compatibility ensures a cohesive, modular installation that scales as your needs change, from single displays to expansive, multi-panel configurations. Installers appreciate the predictable integration path, as FCAX14 remains consistent with other Fusion components, reducing on-site guesswork and accelerating project timelines.
  • Maximize display size and mounting footprint: By extending the mounting range, FCAX14 supports displays up to 60 inches and allows for wider center-to-center spacing. The result is a clean, professional look with a stable, level presentation across all panels, even on edge-to-edge video walls or curved arrays. This flexibility makes it ideal for digital signage, corporate lobbies, control rooms, and public-facing installations where visibility and uniformity are critical to brand impact and operational readability.
  • Reliable construction for long-term durability: Built to withstand the demands of commercial use, the FCAX14 combines rugged materials with precise engineering. The result is a dependable mounting solution that minimizes flex and sag, maintains alignment through daily operation, and stands up to frequent maintenance or reconfigurations. The black finish complements a broad spectrum of displays and interiors while resisting wear in high-traffic environments, ensuring the solution looks professional year after year.
  • Smooth alignment, easy adjustment, and quick setup: The FCAX14 is engineered for straightforward installation with precise alignment features. With multiple mounting options and symmetric patterns, installers can quickly level and align the display across the video wall. The result is a crisp, uniform image across all panels, reducing time on-site and ensuring a professional presentation from the first power-on. User-friendly hardware and clear mounting points help minimize tool time while maximizing precision and repeatability.
  • Low-profile, professional aesthetics: The FCAX14’s compact form and black matte finish integrate neatly into most display environments. The slim profile minimizes protrusion from the wall, preserving sightlines and reducing glare. This makes it an excellent choice for retail displays, corporate lobbies, and mission-critical control rooms that require both performance and appearance. The sleek silhouette helps maintain a cohesive visual flow in multi-monitor installations, contributing to a polished, modern presentation space.

Technical Details of Chief FUSION FCAX14

  • Compatibility: Designed to work with Chief's LVM, LBM, and LCM video wall products as an extension bracket to achieve larger displays and wider mounting patterns.
  • Max Display Size: 60 inches maximum height/width configuration supported when used as an extension within compatible Fusion setups.
  • Finish: Black matte coating that resists fingerprints and blends with most contemporary displays.
  • Mounting Type: Extension mounting bracket for Chief FUSION video wall systems, enabling expanded footprint and larger panel arrangements.
  • Intended Use: Ideal for professional digital signage, control rooms, corporate lobbies, and retail environments requiring scalable, reliable display walls with uniform alignment across panels.

How to install Chief FUSION FCAX14

  • Prepare your Fusion wall configuration: Before installation, verify that your LVM, LBM, or LCM video wall modules are safely deployed and that the total weight of the extended display setup remains within the manufacturer’s guidelines. Have the installation manual on hand for reference, and ensure you have the required tools and fasteners supplied with the kit.
  • Position the FCAX14 extension brackets: Align the FCAX14 extension brackets with the appropriate mounting points on the base video wall modules. Make sure the brackets are oriented correctly for the intended display configuration, whether you are building a linear array or a broader grid. Double-check that all holes align and that there is ample space for cable management behind the panels.
  • Secure the extension to the system: Attach the FCAX14 brackets using the supplied hardware, tightening progressively to achieve a snug, level fit. Avoid overtightening, which can deform mounting surfaces or misalign the panel plane. Periodically verify alignment after snugging each fastener to maintain a consistent baseline across the wall.
  • Attach the flat-panel display: With assistance as needed, mount the 60-inch display onto the FCAX14 extension bracket, following the display manufacturer’s VESA mounting pattern and weight limits. Use the appropriate screws and spacers as specified for your panel to ensure even contact and secure seating against vibration or movement.
  • Level, align, and test: Once all displays are mounted, perform a thorough leveling check across the entire wall. Adjust shims or fasteners as necessary to achieve uniform gaps and a consistent axis. Power the system and run a test pattern to confirm brightness, color uniformity, and image alignment across all panels before handing the installation to the client or end users.

Frequently asked questions

  • Q: What displays does FCAX14 support? A: It supports flat-panel displays up to 60 inches when used as an extension within Chief's Fusion LVM/LBM/LCM video wall ecosystem. Confirm individual display compatibility with your layout and weight requirements, and ensure the mounting pattern aligns with the FCAX14 capabilities.
  • Q: Is FCAX14 compatible with other brands? A: FCAX14 is designed for Chief Fusion video wall systems (LVM, LBM, LCM); compatibility with third-party mounting hardware is not guaranteed. Always follow Chief's installation guidelines and consult the latest product documentation for any cross-brand considerations.
  • Q: Does FCAX14 require special tools? A: Basic hand tools are typically sufficient. Refer to the installation guide for torque specifications, fastener types, and mounting patterns to ensure secure installation and to maintain warranty compliance.
  • Q: Can FCAX14 support curved or edge-to-edge video walls? A: Yes, the extension design supports wider mounting patterns necessary for large or irregular video walls, enabling scalable configurations while maintaining a clean appearance and consistent image alignment across panels.
  • Q: How do I know if FCAX14 is the right extension for my setup? A: Assess your display size, mounting pattern, and the existing Fusion system; FCAX14 is intended to extend the FCAX extension family for larger displays and wider mounting patterns in compatible LVM/LBM/LCM configurations. If your layout requires broader spacing and higher flexibility, FCAX14 is the recommended choice.
