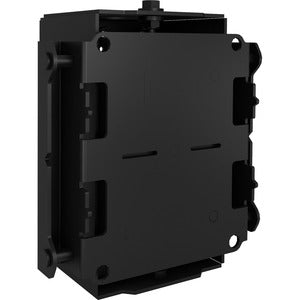

Chief Fusion Height-Adjust Ceiling Box - Black
Designed for professional installers and ambitious projects, the Chief Fusion Height-Adjust Ceiling Box - Black is the essential connector that anchors Fusion extrusions to ceiling columns with precision. The FMSCM micro-adjustable column box lets you dial in exact height and alignment, reducing field rework and delivering a clean, professional look from above. Built for durability, this ceiling box features a rugged steel construction finished in a discreet black powder coat, ensuring long-lasting performance in high-traffic environments. Whether you’re supporting suspended ceiling grids, architectural displays, or ceiling-mounted hardware, this small but mighty component offers reliability, versatility, and faster installation in one compact package.
- Micro-adjustable height for precise alignment: The FMSCM micro-adjustable column box provides fine-tuning capability to achieve perfect alignment between ceiling columns and Fusion extrusions, minimizing gaps and uneven surfaces in finished installations.
- Seamless integration with Chief Fusion components: Engineered to work in concert with the Fusion mounting ecosystem, it delivers consistent performance and streamline compatibility across Fusion extrusions, brackets, and supports.
- Durable black powder-coated finish: The robust steel construction is protected by a corrosion-resistant black finish that stays visually discreet while sustaining heavy-use environments over time.
- Fast, tool-efficient installation: Designed to simplify on-site assembly, the height-adjust mechanism and mounting interface reduce installation steps and help technicians achieve a secure, level setup quickly.
- Reliable support for ceiling-mounted installations: This ceiling box is engineered to provide stable, plumb support for ceiling-based displays and equipment, maintaining alignment even in dynamic or high-traffic spaces.
Technical Details of Chief Fusion Height-Adjust Ceiling Box - Black
- Product name: Chief Fusion Height-Adjust Ceiling Box
- Model: FMSCM Micro-Adjustable Column Box
- Finish: Black powder coat
- Material: Steel construction
- Purpose: Attaches Fusion extrusions to ceiling columns in ceiling-mounted installations
- Compatibility: Part of the Chief Fusion mounting system; designed to pair with Fusion extrusions and related components
How to Install Chief Fusion Height-Adjust Ceiling Box
- Plan the layout in coordination with the Fusion mounting system guidelines. Confirm that the ceiling structure and columns are ready to receive the height-adjustable box and associated extrusion.
- Mount the ceiling box to the ceiling column or supporting structure using the recommended fasteners from your installation kit. Ensure the box is oriented correctly for the intended extrusion path and alignment.
- Connect the Fusion extrusion to the height-adjust ceiling box, making sure the interface is clean, square, and free of obstructions. Secure all connections according to the approved torque and hardware guidelines.
- Use the micro-adjustment feature to dial in the exact height and vertical alignment. Make small, incremental adjustments while verifying plumb and level with a standard spirit level or laser tool.
- Verify overall stability by applying light load and checking for movement or misalignment. Once alignment is confirmed, secure any covers or trim pieces included in your Fusion system to achieve a clean ceiling finish.
- Perform a final inspection, ensuring the installation remains consistent with project specifications and safety requirements. Document the setup for future maintenance and any potential reconfigurations.
Frequently asked questions
- Q: What is the Chief Fusion Height-Adjust Ceiling Box used for? A: It is the essential ceiling-mounted connector that anchors Fusion extrusions to ceiling columns, enabling precise height adjustment and secure alignment for ceiling installations in commercial and residential applications.
- Q: How does the micro-adjustment work? A: The micro-adjustable mechanism allowsFine-tuning of the vertical height and alignment of the connected extrusion, helping installers achieve perfect plumb and level with small incremental turns.
- Q: Is this ceiling box compatible with other Chief Fusion components? A: Yes. It is designed to integrate with the Fusion mounting system and Fusion extrusions, providing cohesive performance across compatible components.
- Q: What finish and durability does it offer? A: The box features a black powder-coated finish on rugged steel, delivering a durable, low-profile aesthetic that resists wear and corrosion in busy environments.
- Q: Do I need special tools or training to install it? A: Basic installation tools and adherence to Fusion system guidelines are typically sufficient. For complex layouts or heavy loads, follow the project’s structural requirements or consult a qualified installer.
