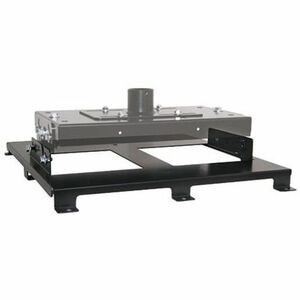

Chief HB93C Mounting Bracket for Projector - Black
Experience a professional-grade, ceiling-ready mounting solution with the Chief HB93C Mounting Bracket for Projector in a sleek black finish. This bracket is part of Chief’s Custom VCM Interface Brackets family, engineered for your exact projector model to deliver a fast, precise, and secure installation. The HB93C is more than a bracket—it’s a carefully engineered interface that integrates seamlessly with Chief’s mounting ecosystem, ensuring reliable performance, simple serviceability, and a clean, professional look in any conference room, classroom, or home theater.
From unboxing to on-screen results, the HB93C emphasizes exacting fit and effortless setup. Its rugged steel construction stands up to demanding environments while maintaining a low-profile silhouette that minimizes visual clutter. The black powder coating not only looks premium but also resists scuffs and corrosion over years of daily use. With included custom hardware and clear installation guidance, you can go from wall to wow without unnecessary delays, helping you achieve precise image geometry, stable alignment, and enduring durability.
- Rugged steel construction with a durable black powder coating provides long-lasting strength and a sleek, professional look that resists corrosion and wear in high-traffic settings. The robust build keeps your projector secure through routine maintenance and frequent access, maintaining performance over time.
- Custom VCM Interface Brackets are designed for your specific projector model, enabling a fast, install-ready experience with minimal alignment effort. This tailored interface reduces installation guesswork and accelerates commissioning, so you can focus on presenting rather than wrestling with hardware.
- Precise alignment and adjustment features ensure the projector sits perfectly level and centered, optimizing image geometry and keystone control for a clean, professional presentation. Fine-tuned tilt, pan, and roll adjustments help you achieve edge-to-edge clarity across seating rows and rooms of varying sizes.
- Includes all mounting hardware and intuitive installation guides, so you can complete a secure setup with confidence—no guessing which screws go where. The kit is designed for straightforward, tool-assisted assembly that minimizes time on site while maximizing reliability.
- Integrated ecosystem compatibility works seamlessly with Chief’s ceiling mounts and accessory components, offering flexible positioning options and future-proof adaptability for evolving AV needs. This means easier upgrades or reconfigurations as room layouts change or new projectors are introduced.
Technical Details of Chief HB93C Mounting Bracket for Projector
- Material: Steel construction engineered for high load tolerance with a durable black powder coat, delivering dependable strength without adding excessive bulk.
- Finish: Matte black finish designed to blend with most ceiling environments while resisting scuffs, fingerprints, and routine wear for a consistently clean appearance.
- Compatibility: Designed for use within Chief's mounting ecosystem and to accommodate select projectors that support the VCM Interface Bracket system, ensuring reliable integration with existing Chief hardware.
- Hardware Included: All required mounting screws, spacers, and quick-connect hardware to simplify on-site installation, so technicians can complete the setup with confidence and speed.
- Design Intent: A purpose-built interface that aligns with Chief’s engineering standards for rigidity, alignment accuracy, and serviceability, enabling straightforward future adjustments or component swaps when needed.
How to install Chief HB93C Mounting Bracket for Projector
- 1. Plan and verify: Assess the projector model, ceiling structure, and mounting location. Confirm that the HB93C bracket is compatible with your Chief ceiling mount system and that the ceiling can support the combined load. Gather the included hardware and tools, and prepare a clear workspace for safe installation.
- 2. Attach the VCM interface to the projector: Align the Custom VCM Interface Bracket with the projector’s mounting points and secure using the provided screws. Ensure the interface sits flush against the projector housing and that all fasteners are tightened to the recommended torque to prevent any vibration or slippage during use.
- 3. Prepare the ceiling mount: If you’re pairing with an existing Chief ceiling arm or plate, verify the attachment points and ensure the area is clear of obstructions. Mount the HB93C assembly to the ceiling interface according to Chief’s alignment guidelines, keeping the assembly centered along the projection axis.
- 4. Achieve level and alignment: Use the bracket’s adjustment features to fine-tune tilt, pan, and roll. Carefully level the projector so that the image is square to the screen and parallel with the room’s geometry. Lock all adjustment points once alignment is achieved to maintain stability over time.
- 5. Cable routing and final test: Route power, HDMI, and data cables through the bracket’s designated pathways to maintain a clean install and protect cables from damage. Reconnect all devices, power on, and verify image quality, focus, keystone correction, and brightness across multiple seating positions.
Frequently asked questions
-
Q: What projectors is the HB93C bracket compatible with?
A: The HB93C is designed for use within Chief’s mounting ecosystem and is compatible with select projectors that support the VCM Interface Bracket system. For exact compatibility, reference Chief’s official compatibility lists or contact support with your projector model and serial details. -
Q: Does this include hardware for installation?
A: Yes. The HB93C kit includes all necessary mounting hardware and quick-start guidance to complete a secure, installation-ready setup, reducing the need for extra purchases or substitutions on site. -
Q: Can I adjust the projector after mounting?
A: Absolutely. The bracket provides adjustable tilt, pan, and roll, enabling precise image geometry corrections. This ensures optimal alignment from different seating areas and screen sizes. -
Q: Is this product suitable for ceiling or wall mounts?
A: The HB93C is primarily designed for ceiling mounting within Chief’s mounting ecosystem. For wall-mount configurations, additional components or adapters may be required, depending on your room layout and projector model. -
Q: How do I ensure safety and compliance?
A: Always confirm weight ratings, use appropriate anchors and hardware for your ceiling structure, and follow the installation manual. If you’re unsure about any step, consult a qualified AV installer to ensure safe, compliant mounting.
