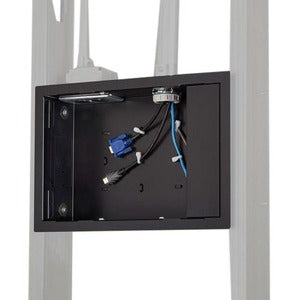

Chief Proximity In-Wall Storage Box with Flange for Flat Panel Displays - Black

The Chief Proximity In-Wall Storage Box with Flange (PAC525F) is a purpose-built solution for clean, professional flat-panel installations. Designed to simplify cable management, this in-wall box provides a recessed space to neatly route excess cables and to securely attach surge protectors or power conditioners. The addition of the flange delivers a refined, trimmed appearance that blends seamlessly with drywall, giving your wall-mounted display a polished, showroom-ready look. Built to integrate with Chief’s PST, PRO, and PLP mounting systems, the PAC525F is a versatile choice for installers seeking a discreet, efficient way to hide clutter and protect critical power components behind the screen.

• Efficient cable management: The PAC525F creates a dedicated, recessed cavity to route excess HDMI, power, and data cables, reducing strain on connectors and minimizing visible cable clutter around your wall-mounted display.
• Integrated surge protector/power conditioner mounting: Designed to securely hold surge protectors or conditioners, this in-wall storage box helps safeguard your AV gear while keeping power accessories organized and out of sight.
• Trimmed, aesthetic flange: The included flange provides a clean, professional edge that sits flush with the wall, delivering a refined finish and enabling straightforward drywall mounting for a seamless installation.
• Drywall-friendly installation: The flange and box are engineered to integrate with typical wall framing, enabling a tidy, low-profile installation behind flat-panel displays.
• Compatibility with Chief systems: Specifically designed to work with Chief PST, PRO, and PLP mounting solutions, ensuring a cohesive, integrated mounting ecosystem for reliable performance.

Technical Details of Chief Proximity In-Wall Storage Box with Flange

• Model: PAC525F
• Product: Proximity In-Wall Storage Box with Flange
• Color: Black
• Purpose: In-wall storage and cable management for flat-panel displays
• Features: Recessed space for routing excess cables and mounting surge protectors/power conditioners
• Flange: Provides aesthetic trim and drywall mounting capability
• Compatibility: Designed for use with Chief PST, PRO, and PLP mounting systems

How to Install Chief Proximity In-Wall Storage Box with Flange

• Plan the installation: Determine the best location behind your wall-mounted display, ensuring there is enough cavity space for the box and the cables you intend to route. Verify that the wall structure can accommodate the flange and mounting requirements.
• Prepare the wall opening: Mark and cut the wall opening according to the PAC525F specifications to create a recessed cavity that accommodates the storage box while leaving room for the flange to sit flush with the surface.
• Route cables: Thread HDMI, power, and data cables through the opening and into the recessed area, keeping power and signal lines organized and separated to minimize interference and ensure a clean installation once the box is in place.
• Mount surge protector/power conditioner: Place the surge protector or power conditioner inside the recessed cavity, securing it in a stable position to prevent movement and protect connected equipment behind the display.
• Attach the flange and finalize: Align the flange with the wall surface, stabilizing it within the cutout so that it sits flush with the drywall. Secure the box and flange according to local building codes and Chief mounting recommendations, then route remaining cables neatly and reassemble the wall plate or display mount as needed.

Frequently asked questions

• Q: What is the primary purpose of the Chief PAC525F? A: It provides a recessed in-wall storage space for routing excess cables and mounting surge protectors/power conditioners behind flat-panel displays, with a flange that creates a clean, finished look.
• Q: Which Chief mounting systems is the PAC525F compatible with? A: It is compatible with Chief PST, PRO, and PLP mounting solutions, ensuring cohesive integration with your existing setup.
• Q: Can the flange be used to mount the box directly to the wall? A: Yes, the flange is designed to deliver drywall mounting capability and a trim appearance, helping the installation blend with the surrounding surface.
• Q: Does the PAC525F support multiple power components? A: The recessed cavity is intended to house surge protectors or power conditioners as part of a tidy in-wall cable management system behind a flat-panel display.
• Q: Is professional installation required? A: The PAC525F is designed to simplify installation, but it is typically installed by skilled installers or technicians familiar with in-wall wiring and safety practices—always adhere to local electrical codes and manufacturer guidelines.
