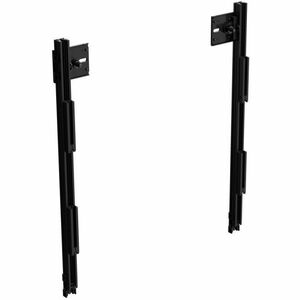

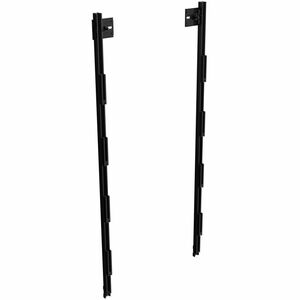

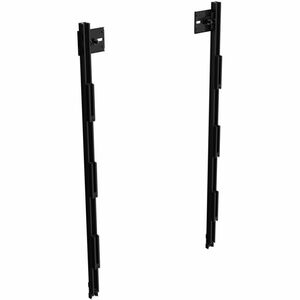

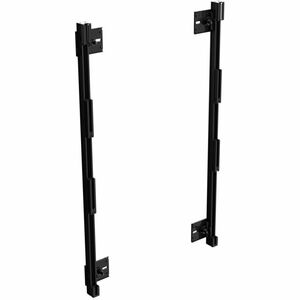

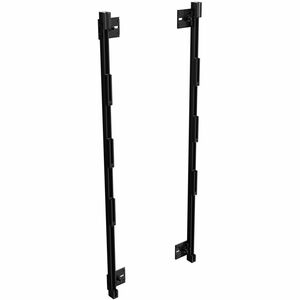

Chief TiLED Wall Mount: Universal Modular dvLED Mounting System for Landscape LED Displays

The Chief TiLED Wall Mount redefines how you install and scale high-performance LED displays. Built as a patent-pending universal modular system, it delivers a flexible, scalable solution that works seamlessly with interlocking dvLED panels from leading manufacturers. Designed to streamline every phase of your project—from specification and ordering to installation and service—the TiLED wall mount is engineered to deliver precise alignment, rapid deployment, and dependable performance for video walls, large LED displays, and modular panels. This landscape-oriented mounting system combines robust construction with smart hardware to reduce field complexity while maximizing image quality and seam integrity. If you’re outfitting a showroom, control room, stadium, or immersive digital signage installation, the TiLED Wall Mount offers the adaptability and reliability you need to achieve a flawless, high-impact display with minimal downtime.

• Universal modular compatibility

  Engineered as a patent-pending universal modular system, the TiLED Wall Mount is designed to adapt to a broad range of interlocking dvLED panels from top manufacturers. This modular approach means you can configure for various panel sizes, pitches, and wall geometries without swapping mounting hardware. The system scales with your video wall, enabling future upgrades or panel substitutions without retooling your entire mount. The result is a future-proof mounting solution that simplifies procurement and reduces long-term lifecycle costs while preserving structural integrity and visual alignment across seams.

• Floating button-capture technology for fast, secure alignment

  One of the standout features of the TiLED Wall Mount is its floating button-capture technology. This innovative mechanism makes panel-to-panel alignment effortless, while maintaining a secure interlock that resists drift over time. The technology enables quick-release and precise reseating during panel swaps, reducing labor time on large installations. The combination of floating capture and high-precision tolerances ensures consistent bezel-to-bezel alignment, which is essential for immersive video walls and high-refresh-rate content. Operators appreciate the simplified workflow, especially in multi-panel configurations where uniformity matters most.

• Landscape orientation optimized for expansive video walls

  The Chief TiLED Wall Mount is optimized for landscape installations, delivering a wide, stable base that supports large-scale video walls with clean seams. The landscape configuration maximizes field of view for advertising, entertainment, and content-rich displays, while maintaining level planes across dozens of panels. With careful attention to plumb, square, and alignment, the system ensures a visually seamless canvas, making it ideal for corporate lobbies, stadiums, retail environments, and command centers where image integrity is critical.

• Installation efficiency and comprehensive mounting hardware

  Designed to speed up the ordering-to-installation workflow, the TiLED Wall Mount ships with purpose-built mounting arms, brackets, fasteners, and alignment guides that fit common dvLED panel grids. The modular pieces are color-coded and labeled for straightforward assembly, reducing on-site errors and time-to-first-display. Integrated cable management options help keep power and data lines tidy, while the rigid steel construction provides strength to support large panels with minimal flex. This emphasis on ease of installation translates into lower labor costs and faster project completion without sacrificing safety or performance.

• Durability, safety, and serviceability for long-term performance

  Built to endure the demands of professional deployments, the TiLED Wall Mount features durable materials and precise machining that resist wear in busy environments. The system is engineered for secure mounting, straightforward maintenance, and serviceability, enabling technicians to access panel joints and hardware quickly for inspection or replacement. The design minimizes vibrations and provides stable support for high-resolution LED displays, ensuring reliable operation in settings ranging from corporate environments to public venues.

Technical Details of Chief TiLED Wall Mount

• Compatibility: Universal modular system designed to work with interlocking dvLED panels from leading manufacturers.
• Orientation: Landscape configuration optimized for wide video walls and immersive LED displays.
• Technology: Patent-pending floating button-capture mounting hardware to streamline alignment and installation.
• Construction: High-strength steel chassis with precise tolerances to ensure long-term rigidity and panel-to-panel consistency.
• Installation: Includes mounting arms, brackets, and hardware designed for efficient assembly and secure attachment; supports streamlined cable management and field servicing.

How to install Chief TiLED Wall Mount

• Plan the layout: verify wall structure, panel size, and display height. Ensure the surface can support the collective weight of the dvLED panels and mounting hardware.
• Attach the main wall plate: mount the primary support plate to the wall or mounting surface using appropriate anchors or studs. Confirm plumb and level before proceeding.
• Attach modular arms and brackets: connect the universal modular components to the wall plate, aligning with the interlocking panel system. Use the floating capture mechanism to establish a secure baseline fit.
• Mount dvLED panels: sequentially engage each panel’s interlocking edges with the corresponding mounting components, securing with the provided fasteners. Carefully align neighboring panels to minimize seams and ensure uniform gaps.
• Final alignment and testing: level the entire array, verify seam continuity, and route cables for clean management. Power on the display and verify image quality, uniform brightness, and signal integrity across the full video wall.

Frequently asked questions

• Q: Is Chief TiLED Wall Mount compatible with all dvLED panels?

  A: The TiLED Wall Mount is designed as a universal modular system that accommodates interlocking dvLED panels from leading manufacturers. Some panel-specific adapters may be required for certain models; consult product documentation for compatibility details.

• Q: What orientation does the TiLED Wall Mount support?

  A: It is optimized for landscape orientation, ideal for wide video walls and expansive LED displays, though configurations can be adapted as needed for specific projects.

• Q: What hardware is included?

  A: The kit includes mounting arms, brackets, fasteners, and alignment guides designed for efficient installation. Depending on the panel model, additional adapters or hardware may be recommended.

• Q: Can I adjust the mount after installation?

  A: Yes. The system provides precise leveling and alignment adjustments to ensure seamless seams and a flat display plane across the entire wall.

• Q: Where can I find the exact specifications?

  A: Refer to the product’s official specifications from the manufacturer or vendor page for precise details on load ratings, mounting patterns, and compatibility. If a specific SKU or UPC is available, consult the technical details section on the supplier’s site for exact figures.
