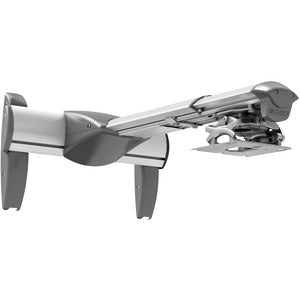

Chief Ultra Short Throw and Universal Projector Mount Kit (Dual Stud) - 12.8-20" Extension - Silver
Upgrade your projection setup with a solution built for flexibility, strength, and precision. The Chief Ultra Short Throw and Universal Projector Mount Kit combines a dual stud short throw extension arm (WM210S) with the Universal RPA Elite projector mount (RPMAUS) to deliver a robust mounting system capable of supporting projectors up to 50 lbs. This silver kit is designed to optimize throw distances, reduce clutter, and provide dependable performance in a wide range of environments—from classrooms and boardrooms to home theaters. With a 12.8 to 20 inch extension, you can fine-tune image alignment for the perfect screen position, even in rooms with challenging sightlines. The kit’s modular design ensures compatibility with both short-throw and long-throw projectors, making it a versatile choice for future-proof installations.
- Dual stud short throw extension arm (WM210S) paired with Universal RPA Elite projector mount (RPMAUS) for a compact, flexible mounting solution that maintains a clean, low-profile look.
- Weight capacity up to 50 lbs (22.7 kg), ensuring compatibility with a broad range of mid- to large-format projectors used in education, business, and home cinema settings.
- Extension range from 12.8 to 20 inches to precisely tune throw distance and screen placement, enabling optimal image alignment in rooms with varying ceiling heights and seating layouts.
- Long-throw compatibility in addition to short-throw capability, offering versatility for room layouts where projector-to-screen distance may change or require adjustment over time.
- Includes hardware for quick, secure installation, plus a durable silver finish that complements contemporary interiors while delivering dependable performance.
Technical Details of Chief Ultra Short Throw and Universal Projector Mount Kit (Dual Stud) - 12.8-20" Extension - Silver
- Kit components: WM210S dual-stud short throw extension arm + RPMAUS universal RPA Elite projector mount
- Weight capacity: supports projectors up to 50 lbs
- Extension: 12.8–20 inches
- Color/finish: Silver
- Includes hardware for installation
- Compatibility: designed to support both short-throw and long-throw projectors
How to install Chief Ultra Short Throw and Universal Projector Mount Kit (Dual Stud)
- Step 1: Plan your mounting location by assessing ceiling or wall structure, throw distance requirements, and screen placement to determine the optimal mounting position for the RPMAUS.
- Step 2: Attach the RPMAUS universal projector mount to the ceiling or wall bracket using the included hardware, ensuring a level, secure base and appropriate anchor selection for your surface.
- Step 3: Connect the WM210S dual-stud short throw extension arm to the RPMAUS mount, aligning the attachment points and tightening fasteners so the arm sits firmly with minimal play.
- Step 4: Mount the projector to the RPMAUS using the provided hardware, making sure the projector weight does not exceed 50 lbs and the mounting pattern matches the projector’s VESA standard where applicable.
- Step 5: Thread the projector cables through the mount and align the projector so that the image aligns correctly with the screen. Adjust tilt, swivel, and extension within the 12.8–20 inch range to fine-tune throw distance and image geometry.
- Step 6: Lock all adjustment points securely, perform a basic test run to verify stability, and confirm that the projection is square with the screen and free of keystone distortion.
Frequently asked questions
-
Q: What is the weight limit for the Chief Ultra Short Throw and Universal Projector Mount Kit?
A: The kit is rated to support projectors up to 50 lbs (22.7 kg). -
Q: What throw distances does the WM210MAUS kit accommodate?
A: The extension range is 12.8 to 20 inches, allowing flexible throw distance adjustments for different room sizes and screen positions. -
Q: Does the kit include all necessary installation hardware?
A: Yes, the kit includes hardware required for installation, along with the dual-stud extension arm and universal mount components.
