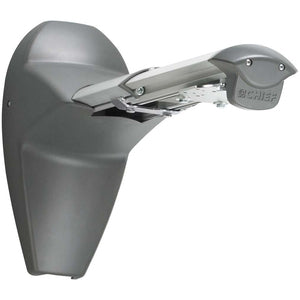

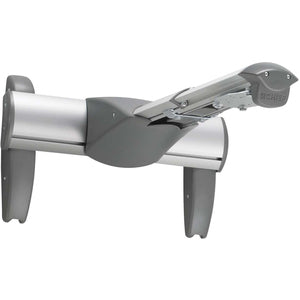

Chief Ultra Short Throw Wall Mount WM110S for Projectors — Silver

The WM110S from Chief is engineered to deliver unparalleled precision and ease for ultra-short throw projector setups. Designed for mounting on a single stud, this wall mount combines a fast, intuitive installation with advanced adjustment capabilities to ensure your image is perfectly aligned from the moment you power up. Whether you’re outfitting a classroom, a conference room, or a home theater, the WM110S offers a robust, professional solution that keeps your projector securely in place while enabling flexible placement to achieve optimal throw distance and screen geometry. The sleek silver finish complements a wide range of projector styles and room décors, providing a clean, low-profile aesthetic that minimizes visual clutter and maximizes viewing space. Built to withstand the rigors of daily use, this mount is a dependable choice for demanding environments where reliability, ease of installation, and precise image alignment matter most.

• Fast installation with Chief’s innovative quick-connect system enables effortless mounting and quick adjustments, reducing downtime during installation or re-positioning while ensuring a secure, stable hold for your short-throw projector.
• Extension from wall ranges from 11.25 to 18.00 inches, offering flexible placement to achieve the ideal throw distance, screen alignment, and cabinet clearance in rooms with varying ceiling heights or built-in constraints.
• Industry-leading micro height and leveling adjustment lets you dial in the projector’s vertical position with accuracy, compensating for minor wall irregularities and ensuring a perfectly square image without fiddling with shims or extensive rework.
• Precision image alignment achieved through micro roll and pitch adjustments, delivering keystone-free results and consistent geometry across the entire screen even if the projector shifts slightly over time or during routine use.
• Durable, sophisticated silver finish combined with high-strength construction provides a low-profile, professional appearance that complements a wide range of projector brands while maintaining long-term stability and reliability.

Technical Details of Chief Ultra Short Throw Wall Mount

• Extension from wall: 11.25"–18.00"
• Mounting configuration: Short-throw projector mounting on a single stud
• Installation system: Innovative quick-connect system for fast, tool-free setup
• Adjustment features: Micro height adjustment and leveling for precise image placement
• Image alignment adjustments: Micro roll and pitch for accurate geometry across the screen
• Finish and construction: Silver finish with durable steel construction designed for long-lasting performance

How to install Chief Ultra Short Throw Wall Mount

• Identify a suitable wall location with access to a reliable single wall stud and verify the wall can support the projector’s weight. Use a stud finder to locate the center of the stud and confirm there are no hidden utilities in the mounting area.
• Position the wall plate and mark the mounting holes according to the specified pattern, then drill pilot holes aligned with the stud for secure attachment.
• Attach the wall plate to the stud using the supplied hardware, ensuring the plate is perfectly level before tightening the fasteners.
• Attach the WM110S mounting arm or quick-connect portion to the wall plate, making sure all connections are secure and aligned with the projector’s mounting pattern. Tighten hardware to the recommended torque to prevent slippage.
• Mount the projector onto the wall mount according to the projector’s mounting pattern, connect relevant cables, and use the micro height, roll, and pitch adjustments to achieve precise image geometry. Adjust the extension to the desired distance from the wall to fit your screen setup, then perform a final image test and alignment pass.

Frequently asked questions

• What is the primary purpose of the WM110S? - It is an ultra-short throw wall mount designed for projectors, optimized for single-stud installations and precise image alignment.
• What is the extension range from the wall? - The mount extends from 11.25 inches to 18.00 inches, allowing flexible placement and throw distance management.
• Does the WM110S provide micro height and leveling adjustment? - Yes, it includes micro height adjustment and leveling features to help achieve a perfectly square image on the screen.
• Are micro roll and pitch adjustments available for image correction? - Yes, the mount supports micro roll and pitch adjustments to maintain keystone-free geometry across the full screen.
• What finishes are available? - The WM110S features a silver finish with a durable steel construction designed for long-term use in various environments.
