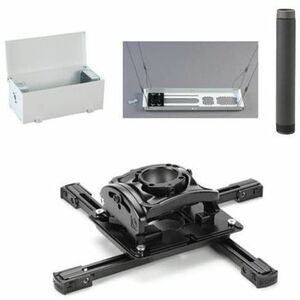

Chief Universal Ceiling Mount Kit for Projectors - Black

Designed to simplify buying, ordering, and installation, the Chief Universal Ceiling Mount Kit for Projectors in Black is a complete, preconfigured solution built to support most suspended ceiling installations. This all-in-one kit consolidates the essential mounting hardware, arms, brackets, and cable management into a single package, helping you streamline procurement for classrooms, conference rooms, auditoriums, and home theater setups. The robust, low-profile design blends seamlessly with modern interiors while delivering dependable projector support and convenient storage for non-plenum rated cables and equipment. Whether you’re retrofitting an existing space or outfitting a new installation, this ceiling mount kit offers a reliable mounting foundation that reduces installation time and ensures your projector stays precisely positioned for optimal image alignment.

• All-in-one, preconfigured kit: Eliminate guesswork and multiple vendor orders with a single package that includes the essential mounting components, making procurement and installation faster and more cost-effective than assembling parts piecemeal.
• Universal compatibility and adaptable design: Built to accommodate a wide range of projectors, this kit supports common VESA patterns and offer adjustable arms to fit different throw distances, weights, and mounting needs, ensuring dependable performance across diverse environments.
• Designed for suspended ceilings with organized cable storage: Specifically tailored for most grid-style or suspended ceiling installations, the kit includes integrated storage solutions for non-plenum rated cables and equipment, helping you keep cables neatly managed and out of the way for maintenance and future upgrades.
• Durable construction with a sleek black finish: Crafted from sturdy materials to withstand daily use in commercial and educational spaces, the low-profile black finish minimizes visual impact while delivering long-term reliability and ease of maintenance.
• Ease of installation and maintenance readiness: The kit is engineered to simplify mounting and alignment, with intuitive assembly steps, clearly organized hardware, and a design that facilitates quick projector installation, adjustment, and service when needed.

Technical Details of Chief Universal Ceiling Mount Kit for Projectors - Black

• Finish: Black powder-coated or equivalent durable finish designed to resist wear and blend with most interiors.
• Material: High-strength steel construction for reliable support and long-lasting performance.
• Ceiling compatibility: Optimized for suspended ceilings and standard grid installations, with mounting components sized for common structural grid dimensions.
• Weight and load handling: Designed to support a wide range of projectors; exact weight capacity varies by model and installation; refer to the included documentation for install-specific limits.
• Mounting patterns: Universal compatibility with common VESA patterns; adjustable arms and brackets provide flexibility for different projector geometries and throw settings.
• Cable management: Integrated storage and routing options for non-plenum rated cables and equipment to keep workspaces tidy and reduce strain on cables.

how to install Chief Universal Ceiling Mount Kit for Projectors

Step 1 — Prepare the space and gather hardware: Before you begin, review the included mounting hardware and layout. Clear the ceiling area, drain any obstructions, and confirm that your suspended ceiling grid is stable. Lay out brackets, arms, and fasteners so you can access them easily during installation.

Step 2 — Attach the ceiling plate or mounting adapter: Secure the ceiling plate or adapter to the grid or structural supports using the supplied hardware. Ensure the plate is level and firmly anchored. If your installation requires a specialty adapter for non-standard grids, follow the included instructions to attach it correctly and maintain level alignment.

Step 3 — Install projector arms and crossbars: Attach the adjustable arms to the mounting plate, aligning them with your projector’s mounting pattern. Extend or retract the arms to match the projector’s width and weight distribution. Verify that the arms move smoothly and lock securely in place.

Step 4 — Mount the projector and align: With the projector prepared, hang it onto the arms and tighten the fasteners. Adjust pitch, roll, and yaw to achieve the correct image orientation. Use a level and measurement references to ensure precise alignment with the screen, then tighten all adjustment screws to maintain stability.

Step 5 — Route cables and finalize the setup: Route power, video, and control cables through the integrated cable management channels. Store excess lengths in the built-in cable storage area to reduce clutter. Connect the projector, test the signal, and fine-tune focus, keystone, and uniformity as needed. Perform a final safety check to confirm that all hardware is secure and cables are protected from wear.

Frequently asked questions

• Q: Is the Chief Universal Ceiling Mount Kit compatible with most projectors? A: Yes. The kit is designed as a universal solution with adjustable arms and common VESA patterns to accommodate a wide range of projectors. However, always verify the projector’s VESA pattern, weight, and throw distance against the kit’s specifications before installation.
• Q: Does this kit include cable management for non-plenum rated cables? A: Indeed. The kit provides convenient storage and routing options for non-plenum rated cables and equipment, helping keep the ceiling space organized and compliant with general installation practices.
• Q: Is installation easy for non-technical users? A: The kit is designed to streamline installation with preconfigured components and clear assembly steps. While basic mechanical skills are helpful, following the included instructions will guide most users through a successful setup. For complex structural ceilings, professional installation is recommended.
• Q: What about maintenance or future upgrades? A: The modular, adjustable design accommodates projector upgrades and reconfigurations. The built-in cable management remains useful for future changes, and the system can be re-tightened and adjusted as needed to maintain optimal alignment.
• Q: How do I confirm compatibility and safety? A: Check the projector’s weight rating, VESA pattern, and throw distance against the kit’s documented specifications. Always ensure all fasteners are tightened securely and that the ceiling grid and mounting hardware are rated for your installation environment.
