Description

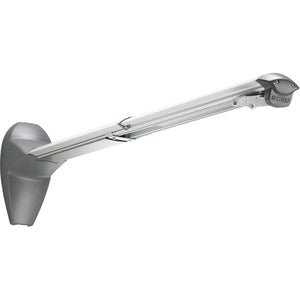

Chief WM130 Mounting Arm for Projector - Silver
The Chief WM130 Mounting Arm for Projector - Silver is the centerpiece of a clean, reliable short-throw projection setup. Engineered to provide ideal placement and effortless alignment on a single ceiling stud, the WM130S offers precise control, fast installation, and a dependable mount that adapts to dynamic AV environments. This arm is designed to work seamlessly with the RPA family and its Elite variants, including the RPA, RPA Elite, RPA Mini, and RPA Elite Mini Series project mounts, giving installers a versatile, scalable solution for classrooms, conference rooms, and home theaters. With its innovative quick-connect system and fine-tuned alignment capabilities, it makes achieving a crisp, perfectly focused image straightforward — even in complex ceiling configurations. The WM130 combines functional engineering with a sleek silver finish that complements modern interiors while keeping the projector hardware securely supported and easy to service.
- Fast installation with innovative quick-connect system — set up a reliable projection solution in minutes, reducing on-site time and labor costs while maintaining high precision and repeatability.
- Precision image alignment with micro roll, pitch and yaw — fine-tune the projector’s orientation to achieve a perfectly level image, eliminating keystone distortions and ensuring consistent throw accuracy across different rooms.
- Designed for short-throw projection on a single stud — saves ceiling space and simplifies mounting in environments with limited ceiling exposure, making it ideal for classrooms, media rooms, and compact offices.
- Broad compatibility with RPA mounts — compatible with RPA, RPA Elite, RPA Mini and RPA Elite Mini Series projector mounts, enabling flexible configurations and easy upgrades as AV needs evolve.
- Robust silver finish and durable construction — combines a professional aesthetic with reliable performance to withstand daily use in education, corporate, and residential settings.
Technical Details of Chief WM130 Mounting Arm for Projector - Silver
- Compatibility: Works with RPA, RPA Elite, RPA Mini and RPA Elite Mini Series projector mounts.
- Mounting type: Short-throw projector mounting on a single stud, designed to maximize space and minimize installation complexity.
- Installation system: Fast, tool-efficient quick-connect design for rapid setup and reliable repeatability.
- Adjustment: Precision image alignment through micro roll, pitch and yaw adjustments for accurate, keystone-free projection.
- Finish: Silver color with a clean, modern appearance suitable for a variety of room decors.
- Construction note: Engineered for durability in demanding environments such as classrooms and meeting spaces; designed to support consistent performance over time.
How to install Chief WM130 Mounting Arm for Projector
- Step 1 — Assess the ceiling structure: Confirm the mounting surface is a suitable ceiling stud with adequate load capacity for your projector and mounting hardware.
- Step 2 — Attach the WM130 arm: Use the provided hardware to secure the WM130 mounting arm to the single ceiling stud, ensuring the arm is plumb and square for optimal alignment.
- Step 3 — Connect the RPA mounting plate: Attach the RPA (or compatible RPA Elite/Mini variant) mounting plate to the WM130 arm, following the quick-connect protocol for a secure, tool-free connection.
- Step 4 — Mount the projector: Hang the projector onto the mounted RPA plate via the quick-connect mechanism, ensuring the projector is centered and level in the intended throw area.
- Step 5 — Fine-tune alignment: Use the micro-adjust controls to refine roll, pitch, and yaw until the projected image sits perfectly square on the screen with correct keystone levels.
- Step 6 — Lock and test: Tighten all fasteners and verify stability by gently testing the setup, then run a quick image check to confirm brightness, focus, and alignment across the screen.
- Step 7 — Cable routing and management: Route cables cleanly along the arm and ceiling line, using available channels or clips to maintain a tidy appearance and prevent cable strain.
Frequently asked questions
- Q: What project mounts are compatible with the WM130? A: The WM130 is designed to be compatible with RPA, RPA Elite, RPA Mini, and RPA Elite Mini Series projector mounts, providing a versatile solution that covers a wide range of short-throw projectors.
- Q: Can I install the WM130 on any ceiling surface? A: The WM130 is intended for single-stud installations; ensure the ceiling stud is structurally capable of supporting the projector and arm together. If in doubt, consult a professional installer.
- Q: How does the quick-connect system benefit installation? A: The quick-connect system reduces tool requirements and installation time while ensuring a secure and repeatable attachment between the WM130 arm and the RPA mounting plate.
- Q: How do I achieve precise image alignment? A: The WM130 provides micro-adjustment controls for roll, pitch, and yaw. Small, incremental turns allow you to align the projector image with screen edges, horizontal lines, and keystone corrections for a crisp, professional result.
- Q: Is the WM130 suitable for classroom and business environments? A: Yes. Its compact, single-stud design, durable construction, and compatibility with common RPA mounts make it a fit for educational spaces, meeting rooms, and home theaters alike.
- Q: What maintenance is required? A: Periodically check fasteners for tightness, inspect the quick-connect interfaces, and ensure the arm remains securely mounted. Routine inspection helps maintain alignment and safety over time.
