Description

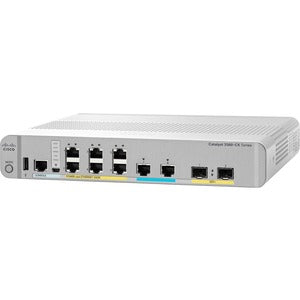

Cisco 3560-CX Switch 6 GE PoE+, 2 MultiGE PoE+, uplinks: 2 x 10G SFP+, IP Base
The Cisco Catalyst Compact Switches bring the power and reliability of Cisco switching to edge workspaces, hallways, and other space-constrained environments. The 3560-CX model in particular is designed to extend Ethernet and Multigigabit Ethernet connectivity beyond the traditional wiring closet, enabling new workspaces, expanding wireless LANs, and powering PoE devices with efficiency and quiet operation. This fanless, compact switch fits neatly into offices, retail spaces, or education environments where space is at a premium but performance cannot be compromised. With six PoE+ ports, two Multigig ports, and two 10G SFP+ uplinks, it delivers the flexible, scalable connectivity needed for modern networks while maintaining Cisco’s trusted reliability and security. Its IP Base software brings essential routing and Layer 2/3 capabilities, VLAN segmentation, QoS, and security features, all accessible through familiar Cisco IOS XE management. The result is a highly adaptable edge switch that blends into open spaces without sacrificing performance, ease of administration, or manageability.
- Compact, fanless design: A silent, space-saving chassis that operates without fans, making it suitable for open offices, classrooms, and reception areas where noise is a distraction.
- Six PoE+ Ethernet ports: Power and connect IP phones, security cameras, wireless access points, and IoT devices directly from the switch, simplifying deployment and reducing cabling.
- Two Multigig ports with PoE+ support: Flexible high-speed ports that accommodate modern wireless controllers and high-density client devices, delivering bandwidth where it’s needed most.
- Two 10G SFP+ uplinks: High-bandwidth uplinks that aggregate to the network core or data center, enabling scalable, resilient connectivity with fiber or DAC options.
- Cisco IOS XE IP Base: A robust feature set for essential routing, VLANs, quality of service, and baseline security, allowing you to implement segmentation and policy consistently across the network.
Technical Details of Cisco 3560-CX Switch 6 GE PoE+, 2 MultiGE PoE+, uplinks: 2 x 10G SFP+, IP Base
- Form factor: Compact, fanless chassis designed for edge deployments and space-constrained environments
- Ports: 6 PoE+ Ethernet ports plus 2 Multigig PoE+ ports for flexible device power and speed
- Uplinks: 2 x 10G SFP+ uplinks for scalable fiber connectivity to distribution or core
- Software: IP Base license with Cisco IOS XE features, including VLANs, QoS, basic security controls, and routing capabilities
- Power and cooling: Passive cooling with silent operation suitable for open environments
- Management: Cisco IOS XE-based management via CLI with secure remote access and local console support
how to install Cisco 3560-CX Switch 6 GE PoE+, 2 MultiGE PoE+, uplinks: 2 x 10G SFP+, IP Base
Installing this Catalyst Compact Switch is designed to be straightforward and adaptable to a variety of edge scenarios. Begin by selecting a location with adequate ventilation and proximity to power outlets and your PoE devices. The unit can be placed on a desk, shelf, or mounted in a small cabinet or equipment rack, depending on space and organizational needs. Connect the two 10G SFP+ uplinks to your network core or distribution layer using compatible SFP+ transceivers and fiber cables or DAC assemblies. This establishes a high-speed path for traffic entering and leaving the edge. Attach PoE devices—such as IP phones, cameras, and wireless access points—to the six PoE+ ports to receive both data connectivity and power from the switch. If you intend to use the two Multigig ports for newer devices or APs, connect appropriate multigig NICs or access points to those ports. Power on the device and access the console port or initial IP address to begin initial configuration. With the IP Base licensing, you can configure VLANs to segment traffic, apply QoS policies to prioritize voice and video, and enforce security baselines to protect management and user data. As you finalize settings, save the configuration to ensure your changes persist across reboots. For ongoing management, you can enable SSH, manage devices via the Cisco IOS XE CLI, and integrate with compatible network management tools for monitoring, firmware updates, and centralized policy control.
- Plan the placement: Ensure adequate airflow and access to power, with consideration for cable management and device height.
- Connect uplinks first: Install fiber or DAC cables into the 10G SFP+ ports to establish the core link before connecting edge devices.
- Attach PoE devices: Connect IP phones, cameras, and APs to the six PoE+ ports to begin powering and data transmission.
- Configure quickly: Access the CLI or a management tool to configure VLANs, QoS, and PoE policies that align with your network policy.
- Verify and finalize: Run connectivity tests, verify PoE power delivery, and save the configuration to preserve settings.
Frequently asked questions
- Q: What is the main use case for the Cisco 3560-CX Compact Switch? A: It’s designed for edge deployments where space is limited, offering PoE+ on six ports, Multigig capabilities, and 10G uplinks to extend Cisco switching to open workspaces, classrooms, retail floors, and small offices.
- Q: Does it support PoE on all six ports? A: Yes, all six Ethernet ports provide PoE+ capability to power compatible devices such as IP phones, cameras, and wireless APs.
- Q: What about the Multigig ports? A: The two Multigig ports support higher-speed connections for next‑gen devices and APs, enabling scalable performance without adding bulk to the network furniture.
- Q: What management options are available? A: The switch runs Cisco IOS XE with IP Base, enabling CLI-based management, VLANs, QoS, and security features, along with secure remote access for administration.
- Q: Is this switch suitable for quiet office environments? A: Yes. The fanless design minimizes noise, making it well-suited for open-plan offices, classrooms, clinics, and other spaces where quiet operation is important.
