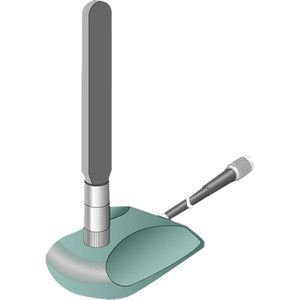

Cisco 3G-ANTM1919D Multi-band Swivel-Mount Dipole Antenna

CiscoSKU: 10213920

Price:
Sale price$95.02

Description

Cisco 3G-ANTM1919D Multi-band Swivel-Mount Dipole Antenna

The Cisco 3G-ANTM1919D Multi-band Swivel-Mount Dipole Antenna is engineered to optimize wireless performance for Cisco 3G High-Speed WAN Interface Card (HWIC) deployments. This compact, versatile antenna delivers reliable signal reception across a broad 806 MHz to 960 MHz range, helping your Cisco networking gear maintain solid connectivity in diverse environments. Designed with a swivel-mount dipole for flexible orientation, it’s a practical choice for office spaces, data closets, and remote sites that require dependable 3G WAN support with minimal installation effort.

  • Multi-band coverage across 806 MHz to 960 MHz, enabling compatibility with multiple 3G networks and regional bands. This broad frequency range supports a variety of service providers, helping to future-proof your Cisco 3G HWIC installations.
  • Swivel-mount dipole design for flexible azimuth and elevation alignment. The adjustable swivel joint lets you fine-tune antenna orientation to maximize signal capture and minimize dead spots as your site layout or network topology evolves.
  • Optimized pattern coverage to improve reliability in typical deployment scenarios. The antenna is engineered to sustain strong uplink and downlink performance, reducing outages and improving overall throughput in challenging indoor and outdoor settings.
  • Designed for seamless integration with Cisco 3G HWICs. This antenna complements Cisco modular routers and gateways, enabling straightforward installation without complex adapters or service interruptions.
  • Easy installation and upright positioning for quick deployment. Its straightforward mounting and orientation process makes it ideal for rack-integrated setups, branch offices, or remote locations where space is at a premium.

Technical Details of Cisco 3G-ANTM1919D

  • Frequency Range: 806–960 MHz – Broad 3G coverage suitable for many regional bands and service providers.
  • Antenna Type: Swivel-Mount Dipole – Flexible alignment to optimize signal reception and coverage patterns.
  • Mounting Style: Swivel-mount for convenient orientation adjustments and stable installation in compact environments.
  • Compatibility: Specifically designed for Cisco 3G HWICs (High-Speed WAN Interface Cards), enabling integrated, reliable 3G connectivity within Cisco-based network infrastructures.
  • Pattern Coverage: Optimized for enhanced signal stability and reduced dead zones in typical enterprise deployments, including office corridors and distributed sites.
  • Construction and Build: Rugged, purpose-built antenna designed to withstand daily use in professional networking environments while maintaining consistent performance.

how to install Cisco 3G-ANTM1919D

Installing the Cisco 3G-ANTM1919D is straightforward and requires minimal downtime. Follow these steps to ensure a secure, effective setup that maximizes 3G WAN performance:

  • Power down the Cisco device hosting the HWIC connector prior to installation to avoid any electrical or RF interference during connection.
  • Identify the correct antenna port on the Cisco 3G HWIC or compatible modem module. Confirm that the connector type is compatible with the antenna’s interface and use any included adapters if required by your hardware model.
  • Attach the swivel-mount dipole antenna to the designated antenna connector, ensuring a snug, secure fit. Avoid overtightening to protect the connector and prevent damage to the RF interface.
  • Position the antenna vertically and adjust the swivel joint to align toward the area where the greatest signal strength is expected. A small adjustment can yield noticeable improvements in link quality, especially in spaces with multipath or interference.
  • Route the coax cable neatly away from heat sources, moving parts, and other potential sources of interference. Secure the cable to prevent strain on the connector and keep air flow unobstructed for ventilation.
  • Power on the device and access the management interface to monitor RF performance indicators. If signal strength or throughput is suboptimal, tweak the antenna orientation in small increments and recheck performance until the desired reliability is achieved.

Frequently asked questions

  • Q: What frequency range does the Cisco 3G-ANTM1919D cover?
    A: It covers 806–960 MHz, enabling compatibility with a broad set of 3G networks and regional bands.
  • Q: Is this antenna compatible with all Cisco 3G HWICs?
    A: It is designed to work with Cisco 3G HWICs, providing an integrated solution for 3G WAN performance within Cisco-based networks. Always verify compatibility with your specific HWIC model.
  • Q: Can I use the antenna indoors?
    A: Yes. The swivel-mount dipole design is suitable for indoor deployments such as offices, data closets, and other enterprise environments where reliable 3G connectivity is required.
  • Q: How do I optimize antenna orientation?
    A: Start with a vertical orientation and adjust the swivel joint to point toward the area where signal strength is strongest. Small positional changes can yield meaningful gains in signal quality and data throughput.
  • Q: What maintenance is required?
    A: The antenna is designed for long-term use in professional settings. Periodic checks for secure mounting and cable integrity are recommended, especially after equipment moves or environmental changes.
