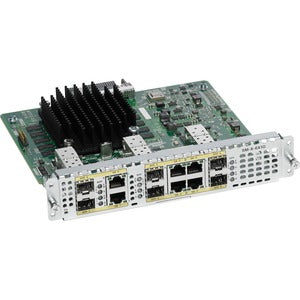

Cisco 6-Port Gigabit Ethernet, Dual-mode GE/SFP, SM-X Module

CiscoSKU: 10717560

Price:
Sale price$7,425.56

Description

Cisco 6-Port Gigabit Ethernet, Dual-mode GE/SFP, SM-X Module

The Cisco 6-Port Gigabit Ethernet, Dual-mode GE/SFP, SM-X Module delivers flexible, high-density WAN connectivity for Cisco 4000 Series Integrated Services Routers (ISRs). Designed to maximize versatility, this pluggable SM-X module provides a mix of gigabit Ethernet copper (RJ-45) and fiber (SFP) interfaces, enabling seamless network evolution from copper to fiber and back without replacing the router. Built for enterprise and service-provider environments, it supports robust performance, scalable deployments, and simplified management for mission-critical applications that demand reliable, scalable WAN access.

  • Flexible port mix for future-proof networks — This 6-port module combines dual-mode GE/SFP capabilities, allowing you to deploy copper RJ-45 or SFP-based fiber connections on the same module to match evolving bandwidth and distance requirements without hardware changes.
  • High-density adherence to enterprise WAN needs — With six ports capable of delivering up to 1 Gbps per port, it enables dense uplinks and downlinks in a single slot, reducing rack space and cabling complexity while increasing total usable bandwidth for branch and campus deployments.
  • Optimized for Cisco 4000 Series ISRs — Engineered to integrate seamlessly with Cisco’s ISR platform, delivering reliable security, routing, and application acceleration features that streamline WAN edge operations and reduce latency for critical business applications.
  • Plug-and-play installation with minimal downtime — The SM-X module design supports easy insertion into supported Cisco routers, enabling rapid deployment and straightforward field upgrades with minimal service interruption.
  • Enterprise-grade reliability and manageability — Cisco components and firmware are designed for long life, with support for common management workflows, CLI configuration, and integration with Cisco DNA Center for centralized policy enforcement and monitoring.

Technical Details of Cisco 6-Port Gigabit Ethernet, Dual-mode GE/SFP, SM-X Module

  • Module type: SM-X pluggable module for Cisco 4000 Series ISRs
  • Ports: 6-port module with dual-mode GE/SFP capability
  • Port types: Mixed copper RJ-45 Ethernet and fiber SFP (SFP transceiver interfaces vary by deployment and SFP choice)
  • Data rate: Up to 1 Gbps per port for standard Ethernet operation
  • Interface support: 1 Gigabit Ethernet per port on copper or fiber paths, depending on SFP configuration
  • Form factor: Pluggable SM-X module designed for compatible Cisco ISR chassis
  • Compatibility: Designed for Cisco 4000 Series Integrated Services Routers; supports common Cisco WAN and security features when plugged into a supported chassis
  • Standards supported: IEEE 802.3 compliant interfaces; SFP interfaces support appropriate fiber standards based on installed transceivers
  • Power and cooling: Standard Cisco module power envelope compatible with ISR cooling design; hot-swappable where supported by the chassis
  • Management: Managed through Cisco IOS XE/IOS software and compatible network management tools; integrates with existing Cisco configurations and monitoring workflows

how to install Cisco 6-Port Gigabit Ethernet, Dual-mode GE/SFP, SM-X Module

  • Power down the Cisco ISR or prepare for a hot-swap if the chassis design supports it, ensuring you follow your organization’s change control process.
  • Locate an available SM-X slot in the router chassis and remove any fill/blanking plate to expose the slot opening.
  • Align the module with the slot and firmly insert until it sits evenly and is fully seated in the backplane connectors.
  • Secure the module with any retention mechanism or screws specified by the chassis design, then reattach the router cover or access panel as required.
  • Install the desired transceivers into SFP ports (if needed) and connect your copper RJ-45 cables or fiber optic links to the corresponding ports. Ensure correct cable types (Cat 5e/6 for copper or appropriate fiber multimode/single-mode with the correct wavelength for fiber) and confirm link integrity.
  • Power on the device and access the Cisco IOS/IOS XE command line or your preferred management interface to configure the interfaces, routing policies, VLANs, and any security or Quality of Service settings for optimal WAN performance.
  • Validate the interfaces with show commands or your monitoring system, verify link status, and test end-to-end connectivity to ensure the module is functioning as intended within the ISR environment.

Frequently asked questions

  • Q: What does “Dual-mode GE/SFP” mean for this module?
    A: Dual-mode GE/SFP indicates the module supports both copper Ethernet (RJ-45) and fiber/SFP-based connectivity, allowing network designers to mix and match port types to fit current needs and future upgrades without replacing the module or router chassis.
  • Q: Which Cisco ISR platforms is this SM-X module compatible with?
    A: It is designed for Cisco 4000 Series Integrated Services Routers. Always verify compatibility with your specific router model and IOS/IOS XE version before purchase and installation.
  • Q: Can I hot-swap this module?
    A: Hot-swapping capabilities depend on the chassis and model. Where supported, the module can be swapped without powering down the entire system, reducing downtime during upgrades or maintenance.
  • Q: How many ports and what speeds does this module support?
    A: The module provides six ports with 1 Gbps per port capability for standard Ethernet operation. The actual speed per port may depend on the installed transceivers and the connected devices.
  • Q: What kind of management tools work with this module?
    A: Cisco IOS/IOS XE software and Cisco management platforms (such as SNMP-based tools and Cisco DNA Center) provide configuration, monitoring, and policy enforcement for the SM-X module as part of the ISR environment.
  • Q: Do I need a special transceiver for SFP ports?
    A: Yes. SFP ports require appropriate SFP transceivers (fiber optics) that match your distance and fiber type (multimode or single-mode) as well as the wavelength supported by your network link.
  • Q: Can I use only copper RJ-45 on all ports?
    A: Depending on the deployment, some ports may be configured for copper while others are configured for fiber. The module’s dual-mode design allows flexible usage as your network evolves.
