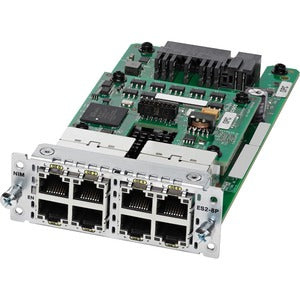

Cisco 8-Port PoE/PoE+ Layer 2 Gigabit Ethernet LAN Switch NIM

Unlock scalable, secure, and effortless network expansion with the Cisco 8-Port PoE/PoE+ Layer 2 Gigabit Ethernet LAN Switch NIM. Designed as a modular Network Interface Module (NIM), this switch brings eight RJ-45 ports into a Cisco chassis, delivering reliable Power over Ethernet (PoE) and PoE+ capabilities alongside robust Layer 2 switching. It’s the ideal upgrade path for offices, retail locations, and campus environments that demand streamlined device deployment—IP phones, wireless access points, security cameras, and other PoE-powered devices can be deployed quickly without chasing separate power outlets. With Cisco’s renowned reliability and management integration, this NIM helps you simplify installation, optimize traffic, and scale as your network grows.

• Eight RJ-45 ports with PoE/PoE+ support allow seamless powering of IP phones, cameras, and wireless access points directly from the switch, reducing cabling clutter and installation time.
• Layer 2 switching provides essential features for efficient traffic management, including MAC learning, VLAN segmentation, and basic quality-of-service (QoS) to prioritize voice and video traffic.
• Modular NIM expansion delivers scalable network growth; slot this module into a compatible Cisco chassis to extend your LAN footprint without replacing existing infrastructure.
• Reliable performance and compatibility—Cisco-grade hardware, designed for steady operation in enterprise environments, with auto-negotiation and common cabling standards to simplify setup.
• Seamless integration with Cisco management ecosystems—configurable via familiar IOS-based tools, SNMP, and standard network management practices for centralized monitoring and control.

Technical Details of Cisco 8-Port PoE/PoE+ Layer 2 Gigabit Ethernet LAN Switch NIM

• Ports: 8 x RJ-45 10/100/1000Base-TX ports with PoE/PoE+ support
• Layer: 2 switching with VLAN support and essential security features
• Power delivery: PoE and PoE+ on supported ports to power compatible devices
• Performance: Full-duplex operation at 1 Gbit/s per port for dependable data transfer
• Form factor: Cisco Network Interface Module designed to slot into compatible chassis for scalable deployment

How to install Cisco 8-Port PoE/PoE+ Layer 2 Gigabit Ethernet LAN Switch NIM

• Verify compatibility: Confirm your Cisco chassis supports the NIM form factor and PoE/PoE+ capability. Review the chassis model, slot availability, and power provisioning to ensure seamless installation.
• Power down and prepare: Before installation, power down the host device and disconnect any connected peripherals. Remove the chassis cover if required, following the manufacturer’s safety guidance for hot-swappable components.
• Seat the NIM: Align the NIM with the designated slot in the chassis, then firmly insert until it seats securely. Ensure the backplane connectors engage fully and the module locks into place.
• Reconnect power and boot: Reassemble the chassis, reconnect power, and boot the system. Allow the device to complete POST (Power-On Self-Test) and the NIM to initialize. Observe status LEDs for healthy operation.
• Configure and enable PoE: Access the Cisco management interface (CLI or GUI) and verify port status. Enable PoE on the desired ports, configure VLANs, QoS, and any required security settings, then save the configuration and monitor performance over time.

Frequently asked questions

• Q: What is the Cisco 8-Port PoE/PoE+ Layer 2 Gigabit Ethernet LAN Switch NIM?
  A: It is a modular network expansion module (NIM) that slots into compatible Cisco chassis, providing eight PoE/PoE+ capable Ethernet ports and essential Layer 2 switching functionality. It extends power-enabled connectivity for IP phones, cameras, access points, and other PoE devices while enabling efficient local network segmentation and traffic management.
• Q: Does this NIM support PoE and PoE+ on all ports?
  A: The module offers PoE/PoE+ on its supported ports to power compatible devices. The exact power budget per port and total budget depend on the chassis and power supply configuration, so consult the product datasheet or Cisco documentation for precise figures in your deployment.
• Q: Is this a Layer 3 switch or Layer 2 only?
  A: This NIM operates as a Layer 2 switch with essential switching features, VLAN support, and security capabilities suitable for network segmentation and traffic management at the data link layer. It is not designed to provide full Layer 3 routing on its own.
• Q: Which Cisco devices support this NIM?
  A: The NIM is designed to slot into compatible Cisco chassis that support modular network interface modules. Compatibility varies by model and generation, so verify your chassis model and slot type in the official Cisco interoperability list or product datasheet before purchase.
• Q: How is power managed for PoE devices, and can I control it per port?
  A: PoE power delivery is managed through the NIM and chassis power configuration. You can typically enable or disable PoE per port and monitor per-port power usage via the management interface, allowing you to optimize energy consumption and device deployment.
