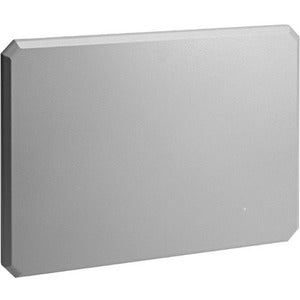

Cisco Aironet Four-Port Dual-Band Polarization-Diverse Antenna

CiscoSKU: 10673109

Price:
Sale price$1,241.57

Description

Cisco Aironet Four-Port Dual-Band Polarization-Diverse Antenna

The Cisco Aironet Four-Port Dual-Band Polarization-Diverse Antenna is a purpose-built outdoor solution designed to maximize the reliability, range, and capacity of enterprise wireless networks. Engineered to operate seamlessly across dual frequency bands—2.4 GHz to 2.5 GHz and 5.15 GHz to 5.925 GHz—it delivers a robust 13 dBi gain that helps extend coverage while maintaining strong signal integrity in challenging environments. This four-port, polarization-diverse antenna is optimized for outdoor deployments and can be mounted on walls, ceilings, poles, or masts, making it an ideal choice for campus-wide deployments, outdoor spaces, warehouses, stadiums, and other high-traffic wireless environments. By combining directional focusing with polarization diversity, it enhances link reliability, reduces multipath fading, and supports scalable wireless networks that demand consistent performance across multiple access points and radio heads. Built to integrate with Cisco Aironet and compatible enterprise equipment, this antenna provides a cohesive, high-performance backbone for modern Wi‑Fi deployments. Whether you’re upgrading an existing network or planning a new outdoor installation, this antenna delivers the range, reliability, and adaptability needed to support demanding data workloads and growing user densities with confidence.

  • High-gain, dual-band capability: Delivers 13 dBi gain across 2.4–2.5 GHz and 5.15–5.925 GHz bands to optimize coverage, capacity, and overall network performance in outdoor environments.
  • Four-port, polarization-diverse design: Supports multiple radios or access points with polarization-diverse elements that reduce multipath fade and improve signal reliability for dense deployments.
  • Outdoor-ready mounting: Built to withstand outdoor installations and compatible with wall, ceiling, pole, and mast mounting for flexible placement in various venues and terrains.
  • Directional performance for targeted coverage: Focuses RF energy toward desired areas while minimizing interference from adjacent channels, ideal for long-range connections and precise coverage shaping.
  • Broad compatibility and enterprise readiness: Optimized for Cisco Aironet ecosystems and widely compatible with enterprise wireless infrastructure, enabling streamlined management and scalable expansion.

Technical Details of Cisco Aironet Four-Port Dual-Band Polarization-Diverse Antenna

  • Frequency range: 2.4 GHz to 2.5 GHz and 5.15 GHz to 5.925 GHz.
  • Gain: 13 dBi.
  • Ports: 4 RF ports for multiple connections to radios or access points.
  • Polarization: Polarization-diverse array to improve reliability in multipath environments.
  • Radiation pattern: Directional antenna pattern to concentrate energy in a chosen bearing.
  • Mounting method: Outdoor installation compatible with wall, ceiling, pole, and mast mounts.
  • Applications: Ideal for wireless data networks deployed outdoors, including campuses, stadiums, industrial sites, and urban environments.

How to install Cisco Aironet Four-Port Dual-Band Polarization-Diverse Antenna

  • Plan the installation by identifying a location with a clear line of sight to the target coverage area and determining the optimal bearing to maximize performance for your wireless network.
  • Prepare the mounting surface and gather the necessary hardware. The four-port antenna is designed for outdoor mounting on walls, ceilings, poles, and masts; ensure you have weather-resistant hardware appropriate for the site and local regulations.
  • Attach the mounting bracket or hardware to the selected surface according to the manufacturer’s guidelines. Use proper torque and secure fasteners to prevent movement due to wind or vibration.
  • Connect the four RF cables from the antenna to the corresponding radios or access points. Use weatherproof connectors and strain-relief where applicable, and route cables to minimize exposure and interference while preserving accessibility for maintenance.
  • Align and calibrate the antenna. Set the intended azimuth/bearing to align with the target coverage zone and verify polarization orientation to capitalize on polarization-diverse benefits. After installation, perform a site survey or test to confirm signal strength, signal-to-noise ratio, and coverage quality across the intended area.

Frequently asked questions

  • Q: What frequency bands does this antenna support?
  • A: It supports dual-band operation across 2.4–2.5 GHz and 5.15–5.925 GHz, making it suitable for contemporary Wi‑Fi deployments that use both 2.4 GHz and 5 GHz spectrums.
  • Q: How many radio connections can this antenna handle?
  • A: The antenna features four RF ports, allowing connections to multiple radios or access points for enhanced capacity and flexible deployment options.
  • Q: Is this antenna suitable for outdoor installations?
  • A: Yes. It is designed for outdoor use with mounting options for walls, ceilings, poles, and masts, providing durability and versatility in harsh environments.
  • Q: What is polarization diversity and why is it important?
  • A: Polarization diversity uses multiple polarization states to combat multipath fading and improve link reliability. This results in more consistent performance in complex outdoor environments where reflections can impact signal quality.
  • Q: Can I use this antenna with non-Cisco equipment?
  • A: While it is optimized for Cisco Aironet ecosystems, many enterprise wireless systems can interface with standard RF connectors and mounting options. Always verify compatibility with your specific radios and connectors before installation.
  • Q: What installation considerations should I keep in mind?
  • A: Consider line-of-sight to the desired coverage area, potential obstructions, prevailing wind loads, cable routing, and weather exposure. Proper alignment and secure mounting are key to achieving the stated gain and performance.
