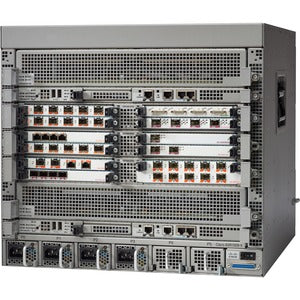

Cisco ASR 1009-X Chassis

CiscoSKU: 11246509

Price:
Sale price$14,872.42

Description

Cisco ASR 1009-X Chassis

The Cisco ASR 1009-X Chassis is a scalable, high-performance edge aggregation platform in the Cisco ASR 1000 Series. It enables service providers and enterprises to aggregate multiple WAN connections and apply encryption, traffic shaping, QoS, and service chaining while delivering line-rate throughput from 2.5 to 200 Gbps. With a design centered on reliability, it combines hardware and software redundancy to maximize uptime and support non-disruptive upgrades in data centers, carrier hotels, and remote PoP locations. Running Cisco IOS XR, the ASR 1009-X offers a capable, policy-driven foundation for MPLS, IPsec VPNs, GRE tunnels, and advanced security features. Its flexible, modular approach makes it suitable for edge deployments, data center interconnect, secure multi-branch connectivity, and evolving WAN architectures, delivering scalable performance as traffic and services grow.

  • High-performance WAN aggregation — The ASR 1009-X consolidates multiple WAN connections and services, delivering line-rate throughput from 2.5 to 200 Gbps while applying encryption and advanced traffic management to maximize efficiency and minimize latency.
  • Industrial-grade reliability — Built with hardware and software redundancy and designed for non-disruptive maintenance, it ensures continuous operation for critical applications, disaster recovery, and mission-critical services.
  • Flexible, modular deployment — Supports a range of service modules and line cards, enabling tailored edge deployments for MPLS, VPN, IPsec, GRE, and more, with room to scale as traffic and service requirements grow.
  • Comprehensive security and policy control — Integrates encryption, VPN capabilities, and granular QoS and policy enforcement to protect data in transit and guarantee service levels across diverse WAN links.
  • Insightful management and automation — Runs Cisco IOS XR with rich telemetry, automation interfaces, and unified management tools that simplify provisioning, monitoring, and proactive optimization.

Technical Details of Cisco ASR 1009-X Chassis

  • Throughput — Line-rate forwarding from 2.5 to 200 Gbps across aggregated WAN connections.
  • Redundancy — Hardware and software redundancy enabling high availability and non-disruptive upgrades.
  • Management — Cisco IOS XR with advanced telemetry, management, and automation capabilities for visibility and control.
  • Scalability — Modular architecture with support for multiple line cards and service modules to scale capacity and services as needed.
  • Security — Integrated encryption, IPsec/VPN functionality, and policy-driven security features for data in transit.
  • Deployment versatility — Suitable for edge aggregation, data center interconnect, and secure multi-branch connectivity in service provider and enterprise networks.

How to Install Cisco ASR 1009-X Chassis

  • Plan placement in a standard 19-inch rack with adequate clearance for cooling and cabling.
  • Mount the chassis securely and connect to a reliable power source; install any required redundant power supplies.
  • Insert necessary line cards, service modules, and fan units as specified for your deployment.
  • Connect WAN interfaces and management network, and configure console access for initial setup.
  • Power on and perform initial bootstrap; upload or upgrade the IOS XR image if needed, and apply licenses.
  • Configure basic network settings, routing, encryption, and VPN/MPLS policies; enable monitoring and telemetry to verify health.

Frequently Asked Questions

  • What is the Cisco ASR 1009-X Chassis? A high-performance WAN aggregation chassis in the Cisco ASR 1000 Series designed to consolidate multiple WAN links and network services with encryption, QoS, and traffic management at line-rate speeds.
  • What throughput does it support? Line-rate forwarding from 2.5 to 200 Gbps across aggregated WAN connections, depending on installed line cards and services.
  • Does it support redundancy? Yes. The chassis offers hardware and software redundancy to ensure high availability and non-disruptive maintenance.
  • What software does it run? Cisco IOS XR, the carrier-grade operating system offering advanced routing, security, telemetry, and automation features.
  • What deployment scenarios is it best suited for? Service providers and large enterprises needing robust WAN edge aggregation, secure interconnects, and reliable multi-branch connectivity.
