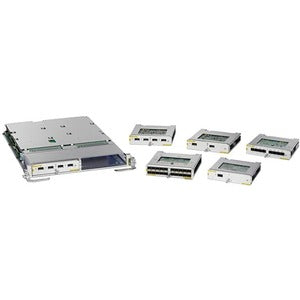

Cisco ASR 9000 20-Port 1GE Modular Port Adapter

CiscoSKU: 11095639

Price:
Sale price$8,881.01

Description

Cisco ASR 9000 20-Port 1GE Modular Port Adapter

Designed for data centers, service providers, and enterprise networks, the Cisco ASR 9000 20-Port 1GE Modular Port Adapter delivers high-density 1 Gigabit Ethernet connectivity in a compact, scalable module. This SFP-based port adapter plugs into the Cisco ASR 9000 router family to provide 20 independent 1GE interfaces, each capable of using 1000BASE-X optical connectivity to create flexible fiber deployments across core, edge, and metro networks. Built on Cisco’s trusted networking platform, this modular port adapter emphasizes reliability, performance, and ease of management, helping you extend your network’s reach without sacrificing uptime or efficiency. Whether you’re expanding a backbone, connecting data centers, or provisioning new enterprise services, the 20-Port 1GE MPA offers the right blend of density, versatility, and value. Its SFP-based design supports a wide range of transceiver types, enabling precise fiber choices for multi-mode and single-mode environments, as well as long-haul and short-reach deployments. With Cisco’s robust hardware and software, this module integrates seamlessly with Cisco IOS XR software and Cisco management tools, delivering consistent performance, traffic visibility, and streamlined operations for mission-critical workloads.

  • High-density connectivity: 20 independent 1 Gigabit Ethernet ports (SFP-based) deliver ample port density in a compact module, enabling you to scale user, uplink, and service interfaces without adding rack space or new chassis blades. This dense 1GE solution is ideal for aggregating access networks, supporting enterprise edge deployments, and extending capacity in service provider backbones, all while maintaining predictable low latency and jitter.
  • Flexible fiber options with 1000BASE-X: Each port uses SFP transceivers for versatile fiber connectivity, including multi-mode and single-mode options. The 1000BASE-X standard supports a wide range of optical distances, making it suitable for data center interconnects, campus networks, and long-distance links. By selecting the appropriate SFP module (LX, SX, or other 1000BASE-X variants), you can tailor the adapter to match your fiber infrastructure and reach requirements.
  • Modular and hot-swappable design: The 20-Port 1GE Modular Port Adapter is designed for easy insertion and removal in Cisco ASR 9000 chassis. Its modular architecture minimizes maintenance windows and reduces service interruptions, enabling quick capacity additions or replacements without major network downtime. This builds resilience into your network architecture, helping you maintain service levels during upgrades or field replacements.
  • Seamless integration with Cisco IOS XR: Built to operate within the Cisco ASR 9000 platform, this MPA benefits from the reliability and feature richness of Cisco IOS XR. Expect robust manageability, telemetry, and security features, along with consistent software support for ongoing performance improvements, monitoring, and troubleshooting. The module pairings with Cisco management tools offer centralized visibility into port health, traffic statistics, and error conditions for efficient network operations.
  • Reliability, performance, and efficiency for large-scale networks: Engineered for service providers and large enterprises, the 20-Port 1GE MPA supports steady throughput under heavy traffic loads and provides predictable performance for diverse applications, from IP transit to enterprise services. Its design emphasizes energy efficiency and long-term value, delivering a scalable upgrade path that protects existing investments while enabling future growth across data centers and metropolitan networks.

Technical Details of Cisco ASR 9000 20-Port 1GE Modular Port Adapter

  • Ports: 20 x 1 Gigabit Ethernet SFP (1000BASE-X) ports for fiber-based connectivity
  • Interface type: SFP (mini-GBIC) Port Adapter, designed for use with Cisco ASR 9000 series routers
  • Form factor: Modular Port Adapter (MPA) designed to plug into expansion slots within the Cisco ASR 9000 chassis
  • Compatibility: Specifically built for Cisco ASR 9000 data networking platforms and optical network deployments
  • Transceiver flexibility: Supports a wide range of SFP modules for both single-mode and multi-mode fiber, enabling tailored reach and fiber type
  • Management: Integrates with Cisco IOS XR software and standard network management tools for monitoring, provisioning, and fault management
  • Reliability features: Hot-swappable capability (where supported by chassis and power design) to minimize downtime during maintenance and upgrades

How to Install Cisco ASR 9000 20-Port 1GE Modular Port Adapter

  • Prepare the chassis: Verify that the Cisco ASR 9000 chassis supports the 20-Port 1GE Modular Port Adapter and ensure you have the correct SFP modules for your fiber links (LX, SX, or other 1000BASE-X variants) as required by your network design.
  • Power considerations: If your chassis supports hot-swapping, you may install the MPA without powering down the entire device. If not, follow standard downtime procedures to minimize impact on service delivery.
  • Access the expansion slot: Locate the appropriate expansion slot in the Cisco ASR 9000 chassis designated for modular port adapters. Remove any blanking plates or filler panels to prepare the slot for the new module.
  • Install the module: Align the Modular Port Adapter with the slot rails and slide it in firmly until it seats securely. Fasten any captive screws or retention mechanisms as required by your chassis design to ensure a stable, vibration-free connection.
  • Attach SFP transceivers and fiber links: Insert the desired SFP transceivers into the MPA ports if not already installed. Connect your fiber optic cables to the SFPs, routing them to your network destinations. Verify that the fiber connectors are clean and seated properly.
  • Power on and verify: If the chassis was powered down, restore power and boot the system. Use the Cisco management interface to confirm port status, link lights, and interface configurations. Check for any fault indicators and validate that all 20 ports report up and carrying traffic as expected.
  • Configure and monitor: Apply the appropriate interface configurations (speed, duplex, VLANs, QoS, and security policies) for each 1GE port as needed. Use Cisco IOS XR telemetry and monitoring tools to track utilization, error rates, and health across the MPA, enabling proactive maintenance and rapid troubleshooting.

Frequently Asked Questions

  • Q: What does the Cisco ASR 9000 20-Port 1GE Modular Port Adapter do? A: It provides high-density 20-port 1 Gigabit Ethernet SFP-based connectivity for Cisco ASR 9000 routers, enabling flexible, scalable fiber connections for data networking and optical networks.
  • Q: Which fiber standards does it support? A: It supports 1000BASE-X transceivers, allowing compatibility with common single-mode and multi-mode SFP modules. The exact reach depends on the SFP type selected (e.g., LX, SX) and the fiber type in use.
  • Q: Is the module hot-swappable? A: Yes, the Modular Port Adapter is designed for hot-swappable installation in compatible Cisco ASR 9000 chassis, reducing downtime during upgrades or maintenance.
  • Q: Do I need to purchase SFPs separately? A: Yes. While the MPA provides the ports, you typically need to supply the appropriate SFP transceivers for your fiber links, based on distance and fiber type.
  • Q: Can this module be managed with standard Cisco management tools? A: Yes. The MPA integrates with Cisco IOS XR and common network management tools, enabling monitoring, provisioning, and performance visibility for each of the 20 ports.
  • Q: What are the ideal use cases? A: This module is well-suited for data center interconnects, aggregation and access layer deployments, metro Ethernet backbones, and other scenarios requiring dense 1GE fiber connectivity within the Cisco ASR 9000 ecosystem.
