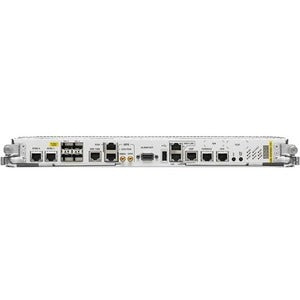

Cisco ASR 9000 Route Switch Processor 880 for Service Edge Spare

The Cisco ASR 9000 Route Switch Processor 880 (RSP 880) is built to empower service providers and large enterprises with carrier-class performance at the edge. Designed to slot into the Cisco ASR 9000 family, this spare part brings the time-tested reliability and feature-rich power of Cisco IOS XR Software to the Carrier Ethernet edge, delivering scalable routing, advanced traffic engineering, and robust control over service delivery. The RSP 880 is engineered for seamless integration into service-edge deployments, enabling non-stop operation, rapid failover, and streamlined maintenance for mission-critical networks.

• Carrier-grade IOS XR software on the edge brings proven resilience and modularity. The RSP 880 leverages Cisco IOS XR to support large-scale routing, service providers’ demanding SLAs, and complex policy enforcement at the edge, ensuring stable and predictable performance under load.
• True software process modularity ensures that each routing protocol, management task, and control plane function runs in isolated, protected memory. This isolation minimizes ripple effects from faults, simplifies troubleshooting, and supports rapid failure containment to keep the network services online.
• Service-edge capabilities for Carrier Ethernet the RSP 880 is purpose-built to handle precise traffic shaping, QoS, deep packet inspection, and advanced MPLS/Tunnels at the edge, enabling reliable delivery of high-value services such as VPNs, VLANs, and dedicatedWAN connections.
• Robust hardware and deployment flexibility designed for integration into the ASR 9000 chassis, the RSP 880 supports high-availability configurations, hot-swappable operation in supported environments, and rapid field replacement to minimize downtime during maintenance or upgrade cycles.
• Future-ready scalability with the same architectural advantages that have powered large-scale service providers, allowing operators to expand capacity, deploy new services, and adapt to evolving traffic patterns without a complete platform replacement.

Technical Details of Cisco ASR 9000 Route Switch Processor 880 for Service Edge Spare

• Product type: Route Switch Processor (RSP) 880 for Cisco ASR 9000 series, designed as a service-edge spare part
• Chassis compatibility: Cisco ASR 9000 family routers, optimized for Carrier Ethernet edge deployments
• Operating system: Cisco IOS XR Software, featuring modular architecture and process isolation
• Key architectural concept: true software process modularity with separate protected memory for each routing protocol and management function
• Reliability features: hot-swappable design in supported chassis configurations, designed for high-availability deployments and rapid maintenance
• Security and policy: supports scalable policy enforcement, advanced QoS, and secure management interfaces aligned with carrier-grade networks
• Performance characteristics: optimized for edge routing, scalable throughput aligned with ASR 9000 capabilities, and efficient handling of Carrier Ethernet service traffic
• Redundancy and failover: designed to participate in redundant RSP configurations to minimize service disruption during component replacement

How to install Cisco ASR 9000 Route Switch Processor 880 for Service Edge Spare

• Prepare the equipment and workspace: confirm you have the correct RSP 880 spare part for your specific ASR 9000 chassis model and gather approved installation tools. Verify that you have access to appropriate maintenance windows and backup configurations prior to replacement.
• Power and safety precautions: in supported environments, follow hot-swappable guidelines and adhere to local safety procedures. If required by your chassis, ensure power to the slot is managed according to vendor recommendations before removal or installation.
• Remove the failed or older RSP (if applicable): carefully unlatch and remove the existing processor module, noting its orientation, slot position, and any interconnects or airflow considerations. Place the removed unit in an anti-static bag for storage or disposal per your facility policy.
• Install the RSP 880 spare: align the processor with the slot guides and gently seat it into the chassis. Ensure connectors engage fully and secure the module with the appropriate latch or screws as specified by the chassis documentation. Confirm physical stability and proper seating before powering on.
• Power up and initialize: restore power to the system and allow the RSP 880 to initialize. Use the command-line interface or management console to verify recognition of the new RSP, check LED indicators, and confirm that the device boots into the proper IOS XR context.
• Verify system health and service continuity: run a set of verification commands to confirm routing protocol readiness, interface status, and feature activation. Check for any alarms or fault indicators in the management dashboard and validate that traffic is being processed as expected at the edge.
• Post-install configuration (if required): apply any site-specific policies, QoS profiles, MPLS/VPN settings, and security configurations that pertain to your network design. Validate through traffic tests and service tests to ensure expected performance.
• Document the installation: record the RSP part number, slot, timestamp, and verification results in your change-management system for auditability and future maintenance planning.

Frequently asked questions

• Q: What is the Cisco ASR 9000 Route Switch Processor 880 used for? A: It is a spare RSP designed for the Cisco ASR 9000 family, specifically targeting service-edge deployments to deliver scalable routing, advanced traffic engineering, and reliable Ethernet edge services with IOS XR capabilities.
• Q: What software does the RSP 880 run? A: It runs Cisco IOS XR Software, which provides modular processing, protected memory for routing protocols, and carrier-grade reliability at scale.
• Q: Is the RSP 880 hot-swappable? A: The RSP 880 is designed to support hot-swappable installation in compatible ASR 9000 chassis, enabling minimal downtime during maintenance or replacement in service-edge environments.
• Q: What kinds of networks benefit most from the RSP 880? A: Service providers and large enterprises employing Carrier Ethernet edge services, MPLS VPNs, QoS-enabled edge routing, and high-availability service delivery scenarios.
• Q: How does the modular IOS XR architecture help operators? A: By isolating each process in protected memory, IOS XR minimizes cross-process impact from faults, simplifies troubleshooting, and allows independent updates and policy changes without destabilizing the entire routing stack.
