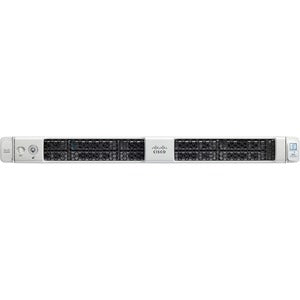

Cisco C220 M5 1U Rack Server – Dual Intel Xeon Gold 5120, 64GB RAM, 12Gb/s SAS Controller
The Cisco C220 M5 1U Rack Server is a compact, high-performance server designed to fit dense data center racks without compromising on compute power, memory, or storage flexibility. Built to extend Cisco’s Unified Computing System (UCS) portfolio, this 1U server blends two Intel Xeon Gold 5120 processors at 2.20 GHz with robust memory capacity and scalable I/O options. It’s an ideal platform for virtualization, databases, and enterprise workloads that demand reliable performance in a compact footprint. The base configuration includes 64 GB of RAM, while the architecture supports significant memory expansion up to 128 GB using 24 DIMM slots, delivering the headroom needed for memory-intensive applications and consolidated workloads. A 12Gb/s SAS controller anchors storage throughput, with the capability to connect up to 10 SAS/SATA drives, providing flexible options for boot, data, and backup storage in a single, space-efficient chassis.
- Powerful dual‑processor performance in a 1U chassis: Equipped with two Intel Xeon Gold 5120 processors at 2.20 GHz, delivering solid multi-threaded performance and reliability for virtualization, databases, and cloud workloads in a compact 1U form factor.
- Expansive memory capacity for demanding workloads: 24 DIMM slots support 2666MHz memory and capacity up to 128GB, enabling large virtual machine densities, in-memory databases, and data-intensive applications while maintaining excellent memory bandwidth.
- Flexible storage connectivity and scalability: A 12Gb/s SAS controller provides high-throughput storage I/O with support for up to 10 SAS/SATA drives, allowing you to tailor storage performance and capacity to your workload needs.
- Expansion and I/O options to grow with your environment: Two PCIe 3.0 slots enable adding accelerators, network adapters, or SAS controllers to boost performance and uptime without changing the chassis.
- Enterprise-grade management and reliability: Designed to integrate with Cisco UCS Manager and CIMC, offering centralized, scalable management, streamlined deployment, and consistent infrastructure policies across data centers.
Technical Details of Cisco C220 M5 1U Rack Server
- Model: Cisco C220 M5 1U Rack Server
- Form Factor: 1U rack server for dense data center deployments
- Processors: 2 x Intel Xeon Gold 5120 @ 2.20 GHz
- Memory: 64 GB RAM installed; supports up to 128 GB (24 DIMMs, 2666MHz)
- Memory Slots: 24 DIMM slots for flexible memory configurations
- Storage Controller: 12Gb/s SAS Controller for high-throughput storage I/O
- Drive Support: Up to 10 SAS/SATA drives
- Expansion Slots: 2 x PCIe 3.0 slots for memory, accelerators, or additional adapters
- Networking and Management: Designed to integrate with Cisco UCS Manager and CIMC for centralized management and policy-driven deployment
how to install Cisco C220 M5 1U Rack Server
Installing the Cisco C220 M5 is a straightforward process designed for rapid deployment in modern data centers. Begin by preparing your rack with the appropriate rails and ensuring proper cable management and clearance for airflow. Mount the 1U chassis into the rack using the included rails, then connect power and management cables. After securing power, power on the server and access the Cisco Integrated Management Controller (CIMC) or the Cisco UCS Manager interface for initial configuration. Update firmware and drivers to the latest stable versions to ensure optimal compatibility with your operating system and virtualization stack. Configure the RAID or storage settings as needed for your deployment and install your operating system or virtualization platform (such as VMware, Hyper-V, or KVM). Finally, apply your infrastructure policies to enable centralized monitoring, firmware updates, and lifecycle management through UCS Manager, CIMC, or your chosen management tool, enabling consistent performance and easier administration across the data center.
Tips for a smooth deployment:
- Have the correct rack rails and power distribution in place before installation.
- Document firmware levels and ensure CIMC/UCS Manager access is available for centralized management.
- Plan storage layout (boot vs. data) in advance to optimize performance and redundancy.
- Update drivers and firmware to the latest versions to maximize stability and security.
- Test virtualization workloads in a staged environment before production rollout.
Frequently asked questions
- Q: What workloads is the Cisco C220 M5 best suited for? A: It is well-suited for virtualization, databases, file/print services, and other compute-intensive enterprise workloads that benefit from dual Xeon performance and scalable memory in a compact 1U form factor.
- Q: How much memory can this server support? A: The system ships with 64 GB of RAM and supports up to 128 GB across 24 DIMM slots at 2666MHz, allowing for memory-intensive configurations.
- Q: How many PCIe slots are available? A: The server provides two PCIe 3.0 expansion slots for adapters, accelerators, or additional I/O controllers.
- Q: What storage options does it offer? A: It includes a 12Gb/s SAS controller and supports up to 10 SAS/SATA drives, enabling flexible boot, data, and archival configurations.
- Q: How is this server managed? A: It is designed to integrate with Cisco UCS Manager and the Cisco Integrated Management Controller (CIMC), providing centralized, policy-driven management, streamlined provisioning, and lifecycle automation for data centers.
- Q: Is this server suitable for a dense virtualization environment? A: Yes. Its dual Xeon Gold processors, substantial memory capacity, and UCS integration make it an effective backbone for virtualized workloads, consolidating servers, and improving data-center efficiency.
