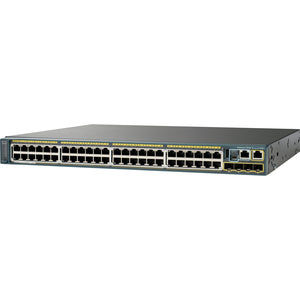

Cisco Catalyst 2960S-48LPD-L Ethernet Switch

The Cisco Catalyst 2960S-48LPD-L Ethernet Switch is a powerful Layer 2 edge switch engineered for reliability, security, and effortless scalability in growing business networks. Designed to deliver a borderless networking experience, this 48-port Poe-enabled switch combines easy-to-use management, solid security, and energy-conscious operation. Whether you’re expanding an office, supporting a campus, or provisioning a distributed storefront, the 2960S-48LPD-L is built to simplify day-to-day administration while delivering dependable, high-performance connectivity for IP phones, wireless access points, and critical business applications.

• 48 PoE+ ports for simple, scalable device deployment: Power IP phones, wireless access points, and surveillance cameras directly from the switch with PoE+. This reduces the need for multiple power cables and minimizes clutter while delivering reliable power to devices across the network edge.
• FlexStack-Plus for effortless scalability: Built-in stacking technology lets you manage up to eight switches as a single, logical unit. With a single IP address and centralized management, you can scale capacity quickly to meet expanding office footprints or campus deployments without complex reconfigurations.
• Layer 2 performance with robust security and quality of service: Advanced Layer 2 switching supports VLAN segmentation, traffic prioritization, and ACL-based access control to ensure consistent performance and secure, segregated data flows for voice, video, and data.
• Energy-conscious design for sustainability and efficiency: The Catalyst 2960S family emphasizes energy efficiency and smarter power usage, helping you reduce operating costs while maintaining dependable performance in office environments.
• Easy management with multiple access methods: Configure, monitor, and troubleshoot with a familiar combination of CLI, GUI (web-based), and SNMP management methods, enabling swift setup and ongoing maintenance for IT teams of all sizes.

Technical Details of Cisco Catalyst 2960S-48LPD-L Ethernet Switch

• Model: Cisco Catalyst 2960S-48LPD-L
• Ports: 48 x 10/100/1000 PoE+ ports for edge connectivity
• Uplink: 4 x 1-Gigabit SFP uplink ports for flexible core connections
• PoE Power Budget: Up to 370 W to support a wide range of PoE devices
• Stacking: FlexStack-Plus capable, supporting up to 8 switches in a single stack with centralized management
• Switching Capacity and Forwarding: High-performance Layer 2 switching with stable, predictable data paths
• Security Features: 802.1X authentication, dynamic ARP inspection, IP-MAC-port binding, ACL-based controls
• Quality of Service: Traffic prioritization for voice, video, and critical data through well-defined QoS policies
• Management: Web-based GUI, CLI, and SNMP for flexible administration and monitoring
• Energy Efficiency: Designed for efficient operation with Power over Ethernet and energy-conscious features

How to Install Cisco Catalyst 2960S-48LPD-L Ethernet Switch

Installing the Cisco Catalyst 2960S-48LPD-L is a straightforward process designed to minimize downtime and align with common data-center and office rack configurations. Follow these practical steps to bring your edge network online quickly and reliably:

• Plan the deployment: Determine the switch’s location in a well-ventilated 19-inch rack or cabinet. Ensure adequate airflow and unobstructed access to ports, uplinks, and management interfaces. Confirm the PoE device requirements to size the power budget appropriately.
• Rack mounting: Use the supplied rack-mount hardware to secure the switch in the rack. Aligning the unit properly with adjacent switches in a stack improves cable management and simplifies future maintenance.
• Power and grounding: Connect the switch to a reliable 100-240V AC power source. Verify that the power outlet is properly grounded and that power redundancy is considered if uptime is critical.
• Connectivity setup: Attach Ethernet devices (IP phones, APs, cameras) to the 48 PoE+ ports. If you’re using uplinks to a core switch or distribution layer, insert the 4 x 1-Gigabit SFP uplinks and connect fiber or copper as appropriate for your environment.
• Initial configuration: Use console access for first-time setup or leverage the web GUI for a more visual approach. Set up VLANs to segment traffic by department or device type, configure basic security policies (802.1X, port security), and define QoS rules to prioritize voice and critical data.
• FlexStack-Plus configuration: If you plan to stack, connect the stack cables between switches and enable FlexStack-Plus on each member. Use the stack management interface to designate the master switch and verify a stable stack with synchronized configurations and policies.
• Security hardening: Implement access controls, disable unused services, enable port security, and consider adding dynamic ARP inspection and IP-MAC-port binding to prevent spoofing and unauthorized access.
• Monitoring and ongoing management: Configure SNMP traps, syslog servers, and NetFlow or similar analytics if available. Regularly review port utilization, PoE power draw, and stack health to maintain performance and prevent downtime.

Frequently asked questions

• Q: What is the role of the Cisco Catalyst 2960S-48LPD-L in a modern network?
  A: It serves as a reliable Layer 2 edge switch that aggregates PoE devices, provides secure access at the network edge, and scales through FlexStack-Plus to meet growing office and campus needs.
• Q: How many devices can be powered by PoE on this model?
  A: Up to 370 W of PoE power budget is available to support a mix of IP phones, cameras, and wireless access points across the 48 PoE+ ports.
• Q: Can multiple switches be managed as a single unit?
  A: Yes. FlexStack-Plus allows you to stack up to eight Catalyst 2960S switches in a single managed entity, simplifying configuration, monitoring, and maintenance with a unified policy set.
• Q: What are the key security features?
  A: The switch includes 802.1X authentication, dynamic ARP inspection, IP-MAC-port binding, and ACL-based access controls to enforce security at the edge and protect critical devices and data flows.
• Q: Which management methods are supported?
  A: The device supports a web-based GUI, command-line interface (CLI), and Simple Network Management Protocol (SNMP) for comprehensive configuration, monitoring, and troubleshooting.
• Q: Is this switch suitable for voice and video traffic?
  A: Yes. With Quality of Service (QoS) features and priority handling for voice and video traffic, it helps ensure clear calls and smooth media experiences even in mixed traffic environments.
• Q: Does it support energy-saving technologies?
  A: The switch is designed with energy-efficient capabilities to optimize power usage, especially in environments with dense PoE deployments, helping reduce operational costs.
