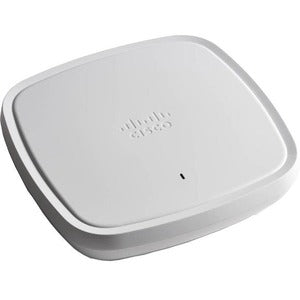

Cisco Catalyst 9120AXE Dual Band Indoor Wireless Access Point

The Cisco Catalyst 9120AXE Dual Band Indoor Wireless Access Point is engineered for the modern enterprise, delivering robust Wi-Fi 6 (802.11ax) performance in dense environments. Designed to handle the surge of connected devices—from laptops and smartphones to IoT sensors—the 9120AXE combines high throughput, intelligent automation, and enterprise-grade security to keep networks fast, reliable, and protected. This indoor AP is built to scale with your organization, offering resilient coverage, simplified management, and seamless roaming across large office spaces, classrooms, healthcare facilities, and hospitality environments. With its sleek, compact form factor and support for PoE power, the 9120AXE integrates smoothly into existing network infrastructures while providing the performance needed to support today’s demanding workloads and tomorrow’s growth.

• High-performance Wi-Fi 6 experience: Up to 5.38 Gbps of theoretical throughput to support a multitude of concurrent devices, immersive applications, and bandwidth-intensive tasks across 2.4 GHz and 5 GHz bands.
• Advanced efficiency for dense deployments: Supports OFDMA, MU-MIMO, multi-user spatial reuse, and Target Wake Time to maximize capacity, reduce latency, and extend battery life for client devices in crowded environments.
• Intelligent, secure, and scalable: Built for enterprise-grade security and policy-based management, with integration options for Cisco DNA Center and scalable cloud or on-premises management to simplify deployment and ongoing operations.
• Flexible indoor deployment: Suitable for ceiling or wall mounting in offices, campuses, classrooms, and hospitality settings, with PoE+ power support to minimize wiring and simplify installation.
• Reliable user experience and roaming: Features robust client roaming, band steering, and network resilience to maintain seamless connectivity as users move between APs and across floors.

Technical Details of Cisco Catalyst 9120AXE Dual Band Indoor Wireless Access Point

• Model: Cisco Catalyst 9120AXE
• Class: Indoor Dual-Band Wireless Access Point
• Wireless Standards: 802.11ax (Wi‑Fi 6)
• Frequency Bands: 2.4 GHz and 5 GHz
• Maximum Theoretical Data Rate: Up to 5.38 Gbps
• Interfaces: PoE+ capable Ethernet connectivity for streamlined power and data delivery
• Antenna: Integrated, high-efficiency internal antennas suitable for typical enterprise environments
• Key Technologies: OFDMA, MU‑MIMO, beamforming, BSS Coloring, and Target Wake Time for improved efficiency and performance
• Security: Enterprise-grade security features including modern encryption standards and secure boot options
• Management: Compatible with Cisco DNA Center and compatible cloud-first management workflows for scalable operations
• Deployment: Ceiling or wall-mountable, optimized for indoor environments with durable, compact design

How to install Cisco Catalyst 9120AXE Dual Band Indoor Wireless Access Point

• Plan your deployment: Assess the workspace to determine optimal AP placement for maximum coverage and minimal interference. Create site surveys or heat maps to identify central locations with clear paths to high-density areas.
• Prepare mounting and power: Choose ceiling or wall mounting hardware, and ensure a PoE+ capable switch or injector is available to provide both power and data via Ethernet.
• Mount the AP: Secure the 9120AXE to the selected mounting point using the included hardware. Ensure there is adequate clearance around the unit to allow for airflow and optimal radio performance.
• Connect and power: Run an Ethernet cable from the PoE+ switch or injector to the AP and power on. Verify link status and basic connectivity to the wider network.
• Initial configuration: Access the AP through your network management platform (e.g., Cisco DNA Center or the local web UI) to configure SSIDs, security policies, and basic operating parameters. Enable essential features such as WPA3 security, 802.1X authentication, and VLAN tagging as needed.
• Optimize performance: Enable roaming assistance, set channel plans to minimize interference, configure QoS for critical applications, and apply RF optimization settings like band steering and transmit power controls appropriate for the environment.
• Monitor and adjust: Use the management platform to monitor client connections, health, and throughput. Make iterative adjustments to placement, power, and channel assignments to maintain optimal performance as the network grows.
• Document and maintain: Record deployment details, IP addressing, SSIDs, and security settings for future audits and scaling. Schedule regular firmware updates and security patches to keep the network protected.

Frequently asked questions

• What is the Cisco Catalyst 9120AXE? It is an indoor dual-band Wi-Fi 6 (802.11ax) access point designed for enterprise networks, delivering high throughput, better efficiency in dense environments, and scalable management options.
• What bands does it support? The 9120AXE operates on the 2.4 GHz and 5 GHz bands, leveraging Wi‑Fi 6 technologies to improve performance and capacity.
• Can it be powered by PoE? Yes. The device supports Power over Ethernet (PoE+), simplifying installation by delivering both data and power over a single Ethernet cable.
• How do I manage and monitor this access point? It can be managed through Cisco DNA Center for policy-based automation and analytics, or via compatible on-premises or cloud management workflows, depending on your deployment.
• Is this model suitable for high-density environments? Yes. With features like OFDMA, MU-MIMO, and smart roaming, it is designed to provide reliable performance in offices, campuses, classrooms, and similar settings with many connected devices.
