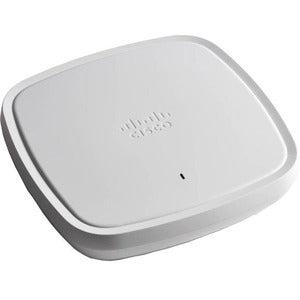

Cisco Catalyst 9120AXI 802.11ax 5.38 Gbit/s Wireless Access Point

The Cisco Catalyst 9120AXI is the next generation of enterprise wireless access points, engineered to deliver exceptional Wi-Fi 6 performance in high-density environments. Designed for resilience, security, and intelligent network integration, this 802.11ax AP accelerates digital workplaces with reliable coverage, low latency, and scalable capacity. Whether you are outfitting a sprawling campus, a busy corporate campus, a smart warehouse, or a modern classroom, the 9120AXI combines cutting-edge technology with Cisco’s trusted reliability to support demanding applications—from HD video conferencing to real-time IoT analytics—while simplifying management through Cisco DNA Center and advanced security features. Its ability to handle increasing device loads, enhance user experiences, and optimize roaming makes it a cornerstone for future-ready networks.

• Wi‑Fi 6 performance and capacity: Harness the power of 802.11ax to serve more devices at once with OFDMA and MU‑MIMO, reducing airtime contention and delivering smoother experiences in crowded spaces such as offices, lecture halls, and retail floors.
• High throughput for modern workloads: Up to 5.38 Gbps of aggregate wireless throughput combines the 2.4 GHz and 5 GHz bands, ensuring fast access to cloud apps, collaboration tools, high‑definition video, and immersive AR/VR experiences.
• Secure, intelligent management: Built for enterprise security with robust encryption, secure boot, and firmware integrity; seamlessly integrates with Cisco DNA Center for policy-based automation, analytics, and proactive assurance across the network.
• Flexible deployment with PoE power: Supports Power over Ethernet (IEEE 802.3at) for centralized power and simplified cabling; designed for ceiling or wall mounting, compatible with existing Cisco wired infrastructure for scalable, low‑touch provisioning.
• Advanced visibility and reliability: Features spectrum awareness and interference mitigation to sustain performance in challenging RF environments; enables location‑based services and data-driven decision making to optimize network operations.

Technical Details of Cisco Catalyst 9120AXI 802.11ax 5.38 Gbit/s Wireless Access Point

• Maximum data rate: Up to 5.38 Gbps aggregate wireless throughput across 2.4 GHz and 5 GHz bands.
• Standards: 802.11ax (Wi‑Fi 6) with backward compatibility to 802.11a/b/g/n/ac for legacy devices.
• Frequency bands: Dual‑band operation with simultaneous 2.4 GHz and 5 GHz support to maximize capacity and minimize interference.
• Antenna configuration: Advanced MU‑MIMO with OFDMA for efficient spectrum use in dense environments; optimized for high user density and mission‑critical apps.
• Security: Comprehensive security features including WPA3‑Enterprise, strong encryption, secure boot, image signing, and policy‑driven access control to protect users and devices on the network.
• Power and mounting: PoE+ (IEEE 802.3at) powering enables flexible placement and simplified cabling; suitable for ceiling or wall mounting to optimize coverage.
• Management and analytics: Cisco DNA Center‑enabled management for centralized policy, assurance, and automation; compatible with Cisco wireless controllers and APIs for seamless integration with existing networks.
• Environment and durability: Enterprise‑grade enclosure designed for indoor installations with reliable performance in a variety of office, classroom, and retail settings.
• Roaming and user experience: Enhanced roaming capabilities and QoS features to maintain seamless connections for voice and video applications during transitions between access points.
• IoT and location services: Built‑in support for location‑based services and IoT integrations to support asset tracking, occupancy analytics, and smart building initiatives.

How to Install Cisco Catalyst 9120AXI

• Plan the deployment with a network site survey to determine coverage goals, channel plan, and channel width settings that minimize interference and maximize capacity.
• Prepare mounting and cabling: install the appropriate Cisco mounting kit for ceiling or wall installation; route Cat5e/Cat6a cables to a PoE+ switch or power injector, ensuring proper cable management and labeling for future maintenance.
• Connect power and network: attach the AP to a PoE+ capable switch (IEEE 802.3at) or using an approved power injector; connect the Ethernet uplink to a suitable VLAN if required by your network design.
• Adopt and configure: use Cisco DNA Center or a compatible wireless controller to adopt the AP, assign SSIDs, security policies, captive portals, and QoS rules; enable 2.4 GHz and 5 GHz radio settings, band steering, and airtime fairness as needed.
• Apply security and firmware: ensure the AP runs a current firmware image, enable WPA3‑Enterprise, configure secure access, and enforce certificate validation to protect devices and users.
• Test, optimize, and monitor: verify link quality, throughput, roaming, and guest access; fine‑tune transmit power, channel width, and load balancing to achieve optimal performance across the deployment.

Frequently asked questions

• Q: What environments is the Catalyst 9120AXI best suited for?
  A: It is designed for indoor enterprise deployments requiring high density and robust security, including offices, campuses, classrooms, retail spaces, and healthcare facilities where reliable wireless is critical.
• Q: Does the 9120AXI support PoE power?
  A: Yes. It supports Power over Ethernet (IEEE 802.3at) for flexible power delivery from compatible switches, reducing cable clutter and simplifying installation.
• Q: Can I manage this AP with Cisco DNA Center?
  A: Absolutely. The 9120AXI is designed to integrate with Cisco DNA Center for centralized policy management, assurance, and automation, while also supporting traditional controllers and standalone operation.
• Q: What security features are included?
  A: The AP includes WPA3‑Enterprise, strong encryption, secure boot, image signing, and other enterprise‑grade security measures to protect data and devices on the network.
• Q: How does Wi‑Fi 6 improve performance in crowded spaces?
  A: Wi‑Fi 6 introduces OFDMA, MU‑MIMO, Target Wake Time, and improved scheduling, allowing more devices to be served simultaneously with lower latency and more efficient spectrum use.
• Q: Is external antenna support available?
  A: The 9120AXI is designed for flexible deployment, with mounting options and integrated radio design that supports integration with appropriate enterprise antennas as defined by Cisco guidelines.
