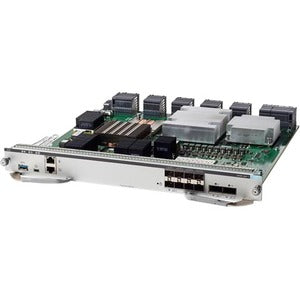

Cisco Catalyst 9400 Series Redundant Supervisor 1 Module

The Cisco Catalyst 9400 Series Redundant Supervisor 1 Module is engineered for enterprises that demand unwavering network reliability, uncompromising security, and scalable performance in a modern, IoT-driven, mobile, and cloud-enabled environment. This supervisor module is designed to sit at the heart of your Catalyst 9400 chassis, delivering a resilient control plane that keeps critical applications online even in the face of maintenance or component failures. Built to support automated policies, intelligent telemetry, and secure data planes, it helps you simplify operations while accelerating your journey to a fabric-enabled data center or campus network. In an era where IoT proliferation and edge computing stress traditional networks, this module provides the robust foundation needed to automate, secure, and simplify—without sacrificing performance or uptime. If your goals include reducing mean time to repair, enhancing threat visibility, and enabling cloud-enabled networking, the Redundant Supervisor 1 Module is designed to help you achieve them with confidence.

• Redundancy and high availability: The Redundant Supervisor 1 Module is built for non-disruptive maintenance and rapid failover, ensuring continuous control plane operation. In deployment scenarios that demand 24/7 uptime, the module supports hot-swapping in compatible chassis configurations, enabling quick replacements without taking the entire switch offline. This capability minimizes downtime during routine maintenance and hardware refreshes, keeping mission-critical applications running smoothly.
• Security-first architecture: Security is embedded at the hardware and software levels, with features designed to shield IoT devices, mobile users, and cloud-connected workloads. Expect secure boot, trusted hardware-based encryption acceleration, and policy-driven segmentation that aligns with Cisco’s security ecosystem. The module helps you enforce consistent security policies across wired, wireless, and cloud-connected segments, reducing attack surfaces and improving compliance across the network.
• IoT, mobility, and cloud readiness: As networks scale to accommodate a growing number of IoT endpoints, mobile devices, and cloud-connected services, this supervisor module provides the reliability and programmability to manage large, diverse environments. Integrated with Cisco DNA Center and Cisco Security solutions, it enables centralized policy, simplified provisioning, and enhanced visibility—streamlining operations for edge devices, sensors, and mobile users while ensuring secure, policy-driven access.
• Performance and resilience: The module is designed to support robust control-plane performance and scalable management for Catalyst 9400 switches. By delivering deterministic behavior under load and during failover events, it helps maintain QoS, security policies, and telemetry streams even during peak traffic or hardware transitions. Enterprises gain predictable performance in campus and data-center networks where latency, jitter, and policy consistency matter most.
• Manageability and analytics: In environments that rely on observability, the Redundant Supervisor 1 Module offers rich telemetry, streaming data, and integration with Cisco management ecosystems. This enables proactive monitoring, faster troubleshooting, and data-driven capacity planning. Through seamless integration with Cisco DNA Center and associated analytics platforms, operators gain actionable insights into device health, security posture, and network utilization—driving informed decisions and automated remediation where possible.

Technical Details of Cisco Catalyst 9400 Series Redundant Supervisor 1 Module

• Overview: Redundant Supervisor 1 Module designed for Cisco Catalyst 9400 Series chassis, providing a scalable, secure, and highly available control plane for mission-critical networks. Built to support modern security, IoT, mobility, and cloud-driven traffic, it serves as a key component in a resilient, fabric-ready infrastructure.
• Form factor and compatibility: Modular, hot-swappable insertion into compatible Catalyst 9400 chassis. Specifically intended for Catalyst 9400 Series switches that require redundant supervisory capabilities to maximize uptime and simplify maintenance windows. Works in concert with the chassis’ power, line cards, and fabric modules to deliver a unified operating environment.
• Management and software: Runs Cisco IOS XE with multi-layer policy, security, and automation features. Designed to integrate with Cisco DNA Center for closed-loop automation, policy-based management, and enhanced visibility across the network. Supports Cisco security services, policy enforcement, and telemetry workflows essential for modern enterprise networks.
• Security features: Hardware-assisted encryption acceleration, secure boot, and integrity checks to protect firmware integrity and data-in-motion. The module enforces consistent security policies across devices and segments, facilitating compliance with corporate and regulatory requirements while enabling threat intelligence sharing within Cisco’s security ecosystem.
• Reliability and availability: Built for high availability with rapid failover between redundant supervisory modules. Designed to minimize disruption during maintenance, software upgrades, or component replacement, helping to ensure continuity of services for critical applications and users.
• Performance characteristics: Optimized to manage control-plane tasks and policy enforcement with low latency, ensuring stable operation under varied traffic patterns. Supports scalable management of large campus and data-center networks, with robust support for QoS, segmentation, and policy-driven networking across multiple devices.
• Telemetry and visibility: Enhanced observability through analytics, monitoring, and telemetry feeds. Enables proactive health checks, performance monitoring, and centralized reporting, supporting proactive maintenance and faster issue resolution across the network.

How to install Cisco Catalyst 9400 Series Redundant Supervisor 1 Module

• Confirm compatibility: Verify that your Catalyst 9400 chassis and IOS XE software version support a Redundant Supervisor 1 Module and the desired redundancy configuration. Review Cisco’s compatibility matrix and release notes to ensure a smooth installation path.
• Prepare the environment: Schedule a maintenance window if needed and ensure you have the correct replacement module, safety grounding, and ESD protection. Confirm that the chassis power, cooling, and interconnects are within spec to prevent post-installation issues.
• Power-down considerations: Depending on your deployment, hot-swappable replacement may be supported. If your environment requires minimal risk, follow your organization’s change control process. If hot-swapping is approved, you may replace the existing supervisor without powering down the chassis, preserving uptime for attached line cards and services.
• Remove the existing supervisor (if applicable): Gently detach the current redundant supervisor module according to Cisco’s service procedure, ensuring minimal disturbance to connected modules and cables. Properly store the removed module for potential reseating or replacement returns.
• Install the new module: Align the module with the chassis backplane and carefully seat it into the slot. Confirm that it engages with the backplane and that any required securing screws or latches are properly fastened. Reconnect any management cables or console access as needed, then restore power according to your maintenance plan.
• Initial startup and validation: Power on and allow the system to boot. Verify that the new supervisor is recognized, the redundancy pairing is established, and the control plane comes online without errors. Use the CLI or GUI management tools to confirm chassis health, module status, and baseline telemetry is flowing.
• Configuration and policy synchronization: If you’re replacing an existing module, ensure the new supervisor inherits or re-applies the correct policies, security settings, QoS configurations, and firmware levels. Validate that all critical services—routing, security, and management—operate consistently with your prior configuration.
• Post-install validation: Run basic connectivity tests, verify uplink status, and confirm that telemetry streams are active. Check for any alerts in your management console and perform a quick failover test to ensure the redundancy mechanism engages as expected.

Frequently asked questions

• Q: What is the primary purpose of the Cisco Catalyst 9400 Series Redundant Supervisor 1 Module? A: It provides a highly available, secure, and programmable control plane for Catalyst 9400 switches. The module enables rapid failover, non-disruptive maintenance, and enhanced policy enforcement to support secure, scalable networks.
• Q: Is the Redundant Supervisor 1 Module hot-swappable? A: Yes. In supported chassis configurations, the module is designed for hot-swappable replacement to minimize downtime during maintenance or hardware refreshes.
• Q: What software and security features does it support? A: It runs Cisco IOS XE with integrated security features, such as hardware-assisted encryption acceleration and secure boot, and it integrates with Cisco DNA Center for centralized policy, telemetry, and automation capabilities.
• Q: Which networks benefit most from this module? A: Large enterprises with campus and data-center networks needing strong uptime, IoT and mobile device management, and cloud connectivity benefit most. It is especially valuable in environments demanding high reliability, security, and scalable policy management across diverse devices.
• Q: Do I need additional licenses for full functionality? A: Depending on your deployment, some features may require Cisco security, analytic, or DNA Center licenses to unlock enhanced automation, telemetry, and policy capabilities. Always verify licensing requirements with Cisco for your specific software version and use case.
