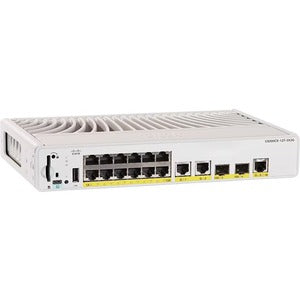

Cisco Catalyst C9200Cx 12P 2X2G Ethernet Switch Poe 9000 Compact 12 Port 240W Essentials

Discover enterprise-grade performance in a compact footprint with the Cisco Catalyst C9200CX-12P-2X2G Ethernet Switch. Built for edge, campus, and branch deployments, this 12-port PoE switch blends the reliability and security of the Catalyst family with modern hardware and software innovations. Its fixed-configuration design targets spaces where desk or wall real estate is at a premium while still delivering robust PoE power, resilient uplinks, and policy-driven management. Ideal for classrooms, retail environments, healthcare facilities, small to mid-size campuses, and edge data networks, the C9200CX-12P-2X2G enables faster, smarter provisioning and consistent policy enforcement across the network with energy efficiency and a lower total cost of ownership.

• Power over Ethernet that scales with your edge devices: With PoE/PoE+ support aligned to IEEE 802.3af/at, this compact switch can power IP phones, wireless access points, cameras, and IoT sensors directly from its ports, eliminating the need for nearby power drops and reducing cable clutter while maintaining strong network performance.
• Edge-ready performance in a compact chassis: The C9200CX-12P-2X2G sits comfortably at the edge of the campus or storefront, delivering reliable, low-latency data handling for data, voice, video, and real-time collaboration. Its modern architecture prioritizes critical traffic for a smooth user experience even during peak usage.
• Flexible, resilient uplinks for scalable connectivity: Equipped with 2 high-speed uplink ports, this model provides reliable access to the core, data center, or upstream distribution layers. Automatic failover and robust traffic segmentation help minimize downtime and bottlenecks while supporting growing network demands.
• Policy-driven management with Cisco DNA Center compatibility: Seamless integration with Cisco DNA Center enables centralized policy enforcement, automation, and simplified operations. Modern IPv4/IPv6 routing and policy-based automation ensure secure, consistent configurations across edge devices and services.
• Energy-efficient, cost-conscious design: By combining a compact form factor with an efficient PoE budget, the C9200CX-12P-2X2G helps organizations lower energy consumption and operating costs while delivering the reliability and security expected from Cisco.

Technical Details of Cisco Catalyst C9200CX-12P-2X2G

• Product family: Cisco Catalyst 9200 Series Fixed-Configuration Ethernet Switch
• Model: Cisco Catalyst C9200CX-12P-2X2G
• Ports: 12 Power over Ethernet (PoE) ports for device connectivity
• Uplink ports: 2 high-speed uplink ports for flexible connection to core, data center, or distribution layers
• PoE budget: 240 W total PoE budget to power a wide range of edge devices
• PoE standard support: IEEE 802.3af (PoE) and IEEE 802.3at (PoE+) for scalable power delivery
• Form factor: Compact, fixed-configuration switch designed for space-constrained deployments
• Networking features: IPv4/IPv6 routing, QoS for prioritizing voice/video, and policy-based automation
• Management and integration: Designed to integrate with Cisco DNA Center for centralized management and automation
• Ideal deployments: Edge, classrooms, retail spaces, healthcare facilities, small to mid-size campuses, and smart building applications

How to install Cisco Catalyst C9200CX-12P-2X2G

Installing the Cisco Catalyst C9200CX-12P-2X2G is straightforward and designed for rapid deployment at the network edge. Begin by identifying a secure, well-ventilated location with adequate cooling and access to power. Ensure you have a clean plan for network topology, including where the 12 PoE ports will connect edge devices and how the 2 uplinks will connect to the core network or data center.

Step-by-step guidance for a smooth setup:

• Unbox and examine the switch for any shipping damage. Verify the model matches the C9200CX-12P-2X2G and that the PoE budget aligns with your edge device requirements.
• Mount the switch in a suitable rack or place it on a stable surface as per your environment’s needs. Ensure there is adequate airflow and no obstructions to exhaust vents.
• Connect the 12 PoE ports to edge devices such as IP phones, APs, cameras, or IoT sensors. Plan cabling to minimize clutter and maximize reliability.
• Link the 2 high-speed uplink ports to the core, data center, or upstream distribution layer. Consider redundant paths to enhance availability and network resilience.
• Power on the device and access the management interface. Configure basic settings (IP addressing, management VLAN, and admin credentials) and establish policy-driven automation through Cisco DNA Center if you are using it.
• Enable PoE on the ports as needed and monitor power usage to ensure the 240 W budget suffices for all connected devices. Validate connectivity by testing edge devices and verifying QoS settings for voice and video traffic.
• Perform a final health check, confirm firmware is up to date, and document your configuration for ongoing maintenance. Consider implementing monitoring and alerting to detect uplink failures or PoE budget anomalies promptly.

For ongoing operations, take advantage of Cisco DNA Center’s automation capabilities to implement consistent security policies, streamlined device provisioning, and scalable management across multiple edge deployments. This approach helps you accelerate deployments, enforce uniform policies, and reduce the time to troubleshoot or scale as your network grows.

Frequently asked questions

• What is the Cisco Catalyst C9200CX-12P-2X2G? It is a fixed-configuration, 12-port PoE Ethernet switch in the Cisco Catalyst 9200 Series designed for edge, campus, and branch deployments. It delivers enterprise-grade performance with robust security, QoS, and integrated management capabilities.
• How many PoE ports does it have and what is the PoE budget? The switch provides 12 PoE ports with a total PoE budget of 240 W, enabling you to power a range of edge devices without external power drops.
• Does it support PoE and PoE+? Yes, the device supports PoE (IEEE 802.3af) and PoE+ (IEEE 802.3at) to accommodate different device power needs.
• What about uplinks? It offers 2 high-speed uplink ports for flexible connections to the core, data center, or upstream distribution layers, with reliability features such as automatic failover to minimize downtime.
• Can I manage this switch with Cisco DNA Center? Yes. The C9200CX-12P-2X2G is designed to integrate with Cisco DNA Center for centralized policy enforcement, automation, and easier management across edge deployments.
• What deployments is this switch best suited for? It is ideal for environments with space constraints and a need for reliable, secure connectivity at the edge—such as classrooms, retail checkouts, healthcare facilities, small to mid-size campuses, and smart buildings—where PoE powering of devices and consistent policy enforcement are critical.
