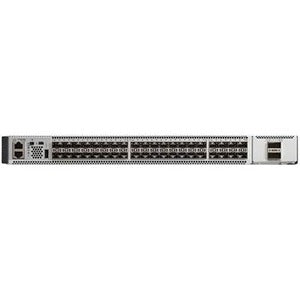

Cisco Catalyst C9500-16X-2Q Layer 3 Switch

The Cisco Catalyst C9500-16X-2Q Layer 3 Switch stands at the forefront of enterprise-grade core and aggregation networking. Built on an x86 CPU, this fixed, high-performance switch is designed to deliver scalable, secure, and programmable networking for large campuses, data centers, and branch consolidation. As part of the venerable Catalyst 9500 family, it combines robust hardware with Cisco IOS XE software to provide a feature-rich platform for advanced routing, switching, security, and analytics. The C9500-16X-2Q is engineered for mission-critical traffic, offering reliable throughput, resilient operation, and a modern approach to network management that fits seamlessly with modern IT initiatives like zero-trust security, IoT, cloud connectivity, and SD-Access architectures. With a focus on simplicity of deployment and day-two operations, this switch enables IT teams to deploy, automate, and scale with confidence while maintaining visibility and control across a growing network landscape.

• Unmatched performance and scalable Layer 3 routing: Engineered for enterprise cores and distribution layers, the C9500-16X-2Q handles demanding workloads with hardware-accelerated IPv4/IPv6 routing, policy-based routing, and advanced QoS. Cisco IOS XE provides a rich feature set for dynamic routing protocols (OSPF, EIGRP, BGP), multicast, and robust ACLs, delivering predictable, line-rate performance even under heavy traffic. This makes it ideal for data-rich campuses, data centers, and high-density LANs where ultra-low latency and high throughput are non-negotiable.
• Flexible port and uplink configuration for modern networks: The model ships with 16 fixed front-panel ports designed for versatile 10/25-Gbps access and aggregation, complemented by 2x 40G QSFP+ uplinks for high-capacity connectivity to core fabrics or data centers. This combination supports dense user and device connections while preserving ample headroom for uplink-intensive applications such as virtualization, cloud access, and inter-campus connections. The hardware design emphasizes future-proofing with scalable throughput and straightforward expansion as networks grow.
• Advanced security and policy controls: Security is woven into the Cisco Catalyst platform, from hardware-assisted segmentation to comprehensive threat prevention and policy enforcement. Features such as granular ACLs, DHCP snooping, IP source guard, dynamic ARP inspection, and optional encryption capabilities deliver a strong security posture at the edge and core. With TrustSec and zero-trust-inspired principles, traffic is consistently authenticated and encrypted where required, reducing risk without compromising performance.
• Programmability, telemetry, and ecosystem integration: Cisco IOS XE on the Catalyst 9500 series offers robust programmability through REST APIs, NETCONF/RESTCONF, Python scripting, and streaming telemetry. This enables seamless automation, centralized policy enforcement, and real-time analytics. The switch is designed to integrate with Cisco DNA Center and other third-party management tools, providing centralized provisioning, policy management, and telemetry-driven insights for proactive network operations and accelerated mean time to repair (MTTR).
• Reliability, efficiency, and ease of management: Built for mission-critical deployments, the C9500-16X-2Q features redundant power options, efficient cooling, hot-swappable components, and a streamlined management experience. Cisco’s proven reliability reduces downtime risk, while energy efficiency and modular design help optimize operational costs. From initial deployment to ongoing maintenance and upgrades, this switch offers a straightforward management model with clear visibility and strong security posture across your campus and data-center footprints.

Technical Details of Cisco Catalyst C9500-16X-2Q Layer 3 Switch

• Product family: Cisco Catalyst 9500 Series fixed core and aggregation switches
• Model: C9500-16X-2Q
• CPU: x86-based multi-core architecture designed for enterprise-grade performance and programmability
• Forwarding: Line-rate Layer 3 forwarding with hardware acceleration for IPv4/IPv6 routing
• Ports: 16 fixed front-panel ports (capable of 1/10/25-Gbps classes) and 2x 40G QSFP+ uplinks
• Software: Cisco IOS XE with rich REST/NETCONF APIs and telemetry capabilities
• Security features: ACLs, DHCP snooping, IP source guard, dynamic ARP inspection, and integrated security policies
• Reliability: Hot-swappable fans and power supplies with redundancy options for failover
• Management and analytics: Centralized management through Cisco DNA Center compatibility and streaming telemetry for proactive monitoring
• Form factor: Fixed 1U rack-mountable chassis designed for data-center and campus cores

How to install Cisco Catalyst C9500-16X-2Q Layer 3 Switch

Installing the Cisco Catalyst C9500-16X-2Q is a straightforward process designed to minimize downtime and accelerate deployment. Start by selecting a suitable 19-inch rack location with adequate ventilation and clearance for cabling. Install the chassis in the rack using the included mounting hardware, ensuring proper grounding and rack stability. Connect the included power cables to a reliable power outlet or Power Distribution Unit (PDU) and verify that the redundant power options are configured if your deployment calls for high availability.

Next, attach the 16 fixed front-panel ports and the 2x 40G uplinks to the appropriate network segments (access, distribution, or core) as defined in your network design. Begin with console access for initial setup, either via the console port or SSH depending on your security policy. Power on the switch and follow Cisco’s guided initial configuration to establish basic IP addressing, access methods, and security settings. Update the firmware to the recommended IOS XE release if required and apply your organization’s baseline configurations for routing, QoS, and security policies.

Configure Layer 3 routing protocols (such as OSPF, EIGRP, or BGP) to enable optimal path selection and reachability across your campus or data-center topology. Implement quality of service (QoS) policies to prioritize latency-sensitive applications like video conferencing or critical business applications, while ensuring bandwidth fairness across users and devices. Enable security features at the edge, including ACLs and continuous monitoring, to protect against threats and ensure compliant traffic handling. Finally, validate connectivity with end-to-end tests, verify route advertisements, and confirm redundancy paths work as designed. After initial validation, automate daily operations using RESTCONF/NETCONF, scripting, and telemetry to keep the network healthy with minimal manual intervention.

For ongoing maintenance, monitor the switch’s performance, health indicators, and firmware version via your preferred network management platform. Plan for regular software updates to maintain security, fix vulnerabilities, and access new features. If scaling is required, consider consulting Cisco’s resources for additional uplink capacity or expansion options within the Catalyst 9500 family to maintain a consistent, high-performance network.

Frequently asked questions

• What is the Cisco Catalyst C9500-16X-2Q Layer 3 Switch? It is a fixed-core/aggregation Layer 3 switch from Cisco’s Catalyst 9500 series, designed for enterprise networks requiring high performance, robust security, and programmable networking. It combines an x86-based CPU with IOS XE to deliver advanced routing, security, and telemetry at scale.
• How many ports does it have and what uplinks are available? It provides 16 fixed front-panel ports with multi-rate capabilities and 2x 40G QSFP+ uplinks, offering a balanced mix of access and core connectivity suitable for campus and data-center deployments.
• What software runs on this switch? The C9500-16X-2Q runs Cisco IOS XE, which supports rich programmability through REST APIs, NETCONF/RESTCONF, Python scripting, and streaming telemetry for proactive network monitoring.
• Is this switch suitable for security-focused deployments? Yes. It includes enterprise-grade security features such as ACLs, DHCP snooping, IP source guard, dynamic ARP inspection, and the ability to implement advanced segmentation and TrustSec policies to enforce access control and data protection across the network.
• What about reliability and maintenance? The switch is designed with hot-swappable components (including power supplies and fans) and supports redundant power options. This, combined with Cisco’s familiar management tools, helps ensure high availability and easier ongoing maintenance.
• Can I scale this switch as my network grows? Yes. The combination of fixed ports and high-speed uplinks, along with IOS XE programmability and ECO-friendly hardware, allows you to grow your network by layering additional Catalyst 9500 switches or expanding to larger Cisco deployment options as needed.
