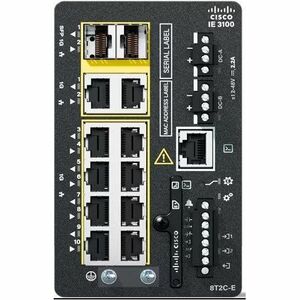

Cisco Catalyst IE3100 Rugged Series: 8-Port GE Copper + 2 GE Combo Uplink (NE)

The Cisco Catalyst IE3100 Rugged Series delivers reliable Gigabit Ethernet connectivity in a compact, fixed-form-factor switch designed for extended enterprise and industrial applications. Built to withstand demanding environments, this rugged, space-efficient device brings enterprise-grade features to edge locations, manufacturing floors, kiosks, and remote sites where space is at a premium. It combines solid performance with flexible uplink capabilities to help you future-proof your industrial network while simplifying management and monitoring in harsh conditions.

• 8 x 10/100/1000BASE-T copper ports plus 2 GE combo uplinks for scalable edge connectivity. These copper ports support standard Ethernet devices such as sensors, controllers, computers, and IP cameras, while the two combo uplinks give you convenient options to connect upward to core switches or distribution layers using either SFP-based fiber or copper paths, enabling easy adaptation to changing network needs without swapping hardware.
• Rugged, compact fixed form factor designed for industrial environments. The IE3100 is engineered to operate reliably in space-constrained installations and challenging conditions typical of industrial facilities, outdoor enclosures, and embedded networking pockets. Its sturdy chassis and robust construction provide dependable performance where traditional switches might struggle, helping reduce downtime and maintenance costs.
• enterprise-grade feature set for secure, efficient networks includes VLAN segmentation, quality of service (QoS), ACLs, and secure management. These capabilities help isolate traffic, prioritize critical control data or video streams, protect network resources, and simplify policy enforcement across edge and field devices, delivering consistent performance in mixed traffic scenarios common to industrial and extended enterprise networks.
• Flexible deployment options for tight spaces with mounting versatility suitable for DIN-rail and wall-mount installations. The compact footprint fits into cramped equipment cabinets, cabinets under desks, or small enclosure spaces, making it a practical choice for modernization projects or site retrofits where room is limited but reliability remains essential.
• Easy, secure management for ongoing reliability supports multiple management approaches, including CLI, web-based GUI, and SNMP. This combination enables rapid initial provisioning, straightforward day-to-day operation, remote monitoring, and integration with centralized network management systems, contributing to lower operational overhead and faster issue resolution on the edge.

Technical Details of Cisco Catalyst IE3100 w/8 Ports GE Copper and 2 GE Combo uplinks, NE

• Ports: 8 x 10/100/1000BASE-T RJ-45 copper ports
• Uplink: 2 x GE combo uplinks (supporting either RJ-45 copper or SFP-based fiber)
• Form factor: Fixed, rugged industrial switch
• Mounting: DIN-rail and wall-mount capable
• Management: CLI, web-based UI, and SNMP for centralized monitoring and configuration
• Security: Basic enterprise-grade security features with access control and policy-enforcement options

How to Install Cisco Catalyst IE3100 w/8 Ports GE Copper and 2 GE Combo uplinks

• Choose a locations that provides adequate ventilation and protection from excessive dust, moisture, and vibration. Ensure the surface is level and sturdy enough for mounting the unit.
• Mount the switch on a DIN-rail or wall-mount bracket according to your installation needs. Secure the device firmly to prevent movement during operation in harsh environments.
• Connect power: supply the appropriate DC power source compatible with the IE3100 model. Ensure power is off before making connections, then power up and verify that the device boots normally.
• Connect network cabling: plug your edge devices (sensors, controllers, workstations) into the 8 copper RJ-45 ports. Attach your uplink devices to the 2 GE combo uplinks using either SFP modules or copper cables as required by your topology.
• Initial configuration: access the device via CLI or the web UI. Set up basic management parameters, including device name, IP address (static or DHCP as appropriate), and management VLAN. Apply initial security settings and define QoS/VLAN policies as needed.
• Verify connectivity: test reachability from edge devices to the core network. Confirm VLAN isolation, QoS behavior, and uplink performance. Check the switch's status indicators and logs to ensure there are no port errors or misconfigurations.
• Document and secure: save the configuration, back up running configurations, and record the hardware and software revision details for future reference and troubleshooting. Schedule periodic health checks to maintain reliability in field deployments.

Frequently asked questions

• Q: Does this model support PoE? A: The provided data for this IE3100 variant does not specify PoE support. If PoE is required, verify the exact SKU and product specifications for PoE capability before purchasing or deploying.
• Q: What environments is the IE3100 best suited for? A: It is designed for rugged, space-constrained industrial and extended enterprise environments, including manufacturing floors, outdoor kiosks, edge locations, and remote sites where reliable Gigabit Ethernet connectivity is needed in a compact form factor.
• Q: How do I manage the switch? A: Management is possible via CLI, a web-based graphical user interface, and SNMP. This enables straightforward provisioning, policy implementation, monitoring, and integration with centralized management systems.
• Q: Can I use the two combo uplinks simultaneously? A: The two GE combo uplinks provide flexible options (RJ-45 or SFP) and can be configured to support diverse uplink topologies as required by your network design, enabling scalable connectivity at the edge.
