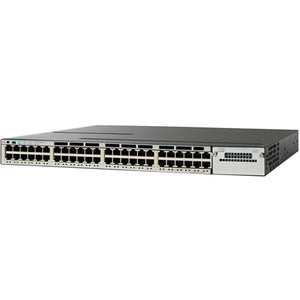

Cisco Catalyst WS-C3750X-48PF-L Stackable Ethernet Switch

The Cisco Catalyst WS-C3750X-48PF-L represents the pinnacle of enterprise-class switching, delivering scalable, secure, and reliable performance for campus networks and data-center access layers. Built on Cisco’s proven Catalyst platform, this 48-port Power over Ethernet (PoE+) switch is designed to power modern devices, streamline deployment, and simplify network management through advanced stacking capabilities. Ideal for organizations that require robust IP phone, wireless access point, and video surveillance support, the WS-C3750X-48PF-L blends high availability with energy-conscious design, enabling a resilient network that grows with your business needs.

• Power over Ethernet (PoE+) on all 48 ports enables hassle-free deployment of IP phones, wireless access points, cameras, and other PoE devices. With PoE+, you can consolidate power budgets, reduce cabling complexity, and accelerate device rollout while maintaining centralized power management and control.
• Stackable architecture with StackWise Plus technology allows multiple Catalyst switches to operate as a single, logical unit. This simplifies management, increases overall bandwidth between switches, and provides fault-tolerant scalability as your network grows—without the complexity of managing multiple independent devices.
• Multilayer switching and security features empower you to segment networks, enforce policies, and optimize traffic. Integrated routing, QoS, VLANs, ACLs, and security controls help guarantee reliable voice, video, and data performance while protecting critical resources from unauthorized access.
• Energy efficiency and sustainable design reduce operating costs. The Catalyst 3750-X series incorporates energy-management capabilities and efficient hardware design to minimize power consumption, helping you meet green IT goals while maintaining performance and reliability.
• Comprehensive management and reliability with Cisco IOS Software, familiar CLI and GUI options, and interoperable features such as SNMP, IPv6 readiness, and wide ecosystem support. This ensures easier deployment, ongoing maintenance, and compatibility with existing Cisco networks and security policies.

Technical Details of Cisco Catalyst WS-C3750X-48PF-L

• Model: WS-C3750X-48PF-L
• Form factor: 1U rack-mountable switch for enterprise deployment
• Ports: 48 x Ethernet ports operating at 10/100/1000 Mbps with PoE+ capability on each port
• Uplink: 4 x Gigabit SFP uplink ports to connect to core or distribution layers
• Stacking: Supports Cisco StackWise Plus technology to form a single, scalable stack with other Catalyst 3750-X switches
• Power: Internal power supply with PoE power budget allocated to PoE ports (no external power distribution required for basic PoE configurations)
• Layer support: Multilayer switching with IPv4/IPv6 routing capabilities for efficient traffic handling and network segmentation
• Software ecosystem: Cisco IOS Software with enterprise-grade features for security, QoS, and management

How to Install Cisco Catalyst WS-C3750X-48PF-L

Installing the Cisco Catalyst WS-C3750X-48PF-L is a straightforward process designed to minimize downtime and maximize reliability. Begin by selecting a suitable 19-inch rack, ensuring adequate ventilation and clearance for proper airflow. Mount the switch securely in the rack, then connect the device to a grounded power source. After power is connected, place any PoE devices on the same network to be powered through the 48 PoE+ ports, planning their location and cable runs to minimize cable clutter and interference. Connect uplink ports to your distribution or core switches using the 4 x Gigabit SFP uplinks, and verify link activity.

Once the hardware is in place, access the switch through the console port or a secure management path. Begin with a baseline configuration for administrative access, VLAN planning, and basic security. Create a dedicated management VLAN, assign IP addressing, and enable SSH or HTTPS for secure remote management. Configure stacks by connecting StackWise cables between switches in the same stack, then use the Cisco IOS commands to designate a stack master and verify stack status. For PoE devices, confirm PoE budgets align with device requirements and enable any necessary PoE-related policies to manage power distribution efficiently.

Implement QoS and traffic prioritization to ensure latency-sensitive applications such as IP phones and video conferences receive priority over general data traffic. Create VLANs to segment traffic by department or function, and configure trunk ports between switches to carry multiple VLANs across the stack. Security hardening is essential; enable features like 802.1X for endpoint authentication, access control lists for traffic filtering, and strong management authentication for all administrative interfaces. Regular firmware updates, backups of configurations, and monitoring via SNMP will help maintain a stable and secure network environment.

For ongoing operation, plan a maintenance routine that includes monitoring PoE usage, reviewing stack health, and validating routing and VLAN configurations after changes in the network. The Catalyst 3750-X series is designed to provide a familiar, scalable, and secure platform for growing networks, so standard Cisco documentation and best practices apply when deploying the WS-C3750X-48PF-L in your environment.

Frequently asked questions

• Q: Is the WS-C3750X-48PF-L stackable with other Catalyst switches?
• A: Yes. The WS-C3750X-48PF-L supports StackWise Plus, enabling multiple Catalyst 3750-X switches to operate as a single logical device for simplified management, increased bandwidth between stack members, and resilient operation.
• Q: Does this switch provide PoE on all ports?
• A: Yes. All 48 ports deliver PoE+ capability, which allows you to power common network devices such as IP phones, wireless access points, and surveillance cameras directly from the switch.
• Q: What routing capabilities does the switch offer?
• A: The WS-C3750X-48PF-L provides multilayer switching with IPv4 and IPv6 routing options, enabling efficient traffic management, inter-VLAN routing, and scalability for growing networks.
• Q: What security options are available?
• A: The switch includes enterprise-grade security features such as access control lists (ACLs), device authentication, and encrypted management to protect sensitive data and control access to network resources.
• Q: How do I manage and monitor the switch?
• A: Management is supported through Cisco IOS Software with CLI and GUI options, plus standard network management protocols like SNMP. This provides centralized visibility, firmware updates, and configuration backups for reliable operation.
• Q: Is IPv6 supported?
• A: Yes. The Catalyst 3750-X family includes IPv6-ready features, enabling modern network deployments that adopt IPv6 addressing and related routing capabilities.
