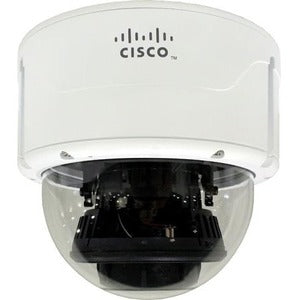

Cisco CIVS-IPC-8630 HD Network Camera

Experience unparalleled surveillance capabilities with the Cisco CIVS-IPC-8630 HD Network Camera. Designed specifically for outdoor environments, this high-definition video camera offers advanced functionality, superior image quality, and seamless integration with your existing security systems. Whether you are monitoring a commercial property or enhancing your home security, the Cisco 8630 will deliver exceptional performance and reliability.

• True High-Definition (HD) Video: Capture crisp and clear video with a resolution of up to 1920 x 1080. This ensures that every detail is visible while optimizing bandwidth usage through advanced compression formats like H.265, H.264, or MJPEG.
• P-Iris Lens Technology: Enjoy superior control over the lens aperture with the P-Iris lens technology. This feature significantly enhances image sharpness and quality compared to traditional DC iris lenses, providing clearer and more accurate images.
• Wide Dynamic Range (WDR): The camera features an impressive 140 dB dynamic range, making it ideal for environments with varying lighting conditions. This ensures that both bright and dark areas are captured clearly, providing a balanced view of any scene.
• Day and Night Operation: Equipped with an infrared filter, the Cisco 8630 automatically switches to night mode in low-light conditions. This functionality can be configured for manual, automatic, or scheduled control, enhancing flexibility based on your specific monitoring needs.
• Integrated Infrared Illuminator: The smart IR illuminator lights up areas up to 50 meters away, providing clear visibility in complete darkness. This feature enhances security monitoring by ensuring that no detail goes unnoticed even in the dead of night.

Technical Details of Cisco CIVS-IPC-8630 HD Network Camera

• Resolution: 1920 x 1080 (HD)
• Compression Formats: H.265, H.264, Motion JPEG (MJPEG)
• Dynamic Range: 140 dB (True WDR)
• Infrared Range: Up to 50 meters
• Video Stream Configuration: Individual resolution, quality, and frame-rate settings
• Audio: Bidirectional full-duplex audio
• Power Options: Power over Ethernet (PoE) 802.3at (Class 4), 12VDC, 24VAC
• Privacy Regions: Supports up to five user-defined privacy regions

How to Install Cisco CIVS-IPC-8630 HD Network Camera

Installing the Cisco CIVS-IPC-8630 camera is straightforward. Follow these steps for a seamless installation:

1. Location Selection: Choose a suitable location for the camera, ensuring it covers the desired surveillance area and is within reach of power and network connections.
2. Mounting the Camera: Use the included mounting bracket and hardware to securely attach the camera to the wall or ceiling.
3. Connect Power and Network: Connect the camera to a power source using PoE, 12VDC, or 24VAC. For network connectivity, use an Ethernet cable to connect to your network switch or router.
4. Configure the Camera: Access the camera's web interface by entering its IP address into a web browser. Follow the on-screen prompts to configure your camera settings, including video resolution, streaming options, and privacy regions.
5. Test the Camera: Check the video feed to ensure proper installation and adjust the camera angle as needed for optimal coverage.

Frequently Asked Questions

• What is the maximum resolution of the Cisco CIVS-IPC-8630? The camera supports a maximum resolution of 1920 x 1080 pixels, providing high-definition video quality.
• Can I integrate it with existing security systems? Yes, the camera's open standards-based design allows for easy integration with various access control systems and ONVIF-compatible devices.
• Is it suitable for outdoor use? Absolutely! The Cisco 8630 is designed for outdoor environments and comes in a weatherproof enclosure, ensuring durability against the elements.
• How does the infrared illumination work? The built-in infrared illuminator ensures visibility in low-light conditions, illuminating areas up to 50 meters away for clear night-time monitoring.
• What power options does the camera support? The camera supports Power over Ethernet (PoE), 12VDC, and 24VAC power connections, offering flexibility in installation.
