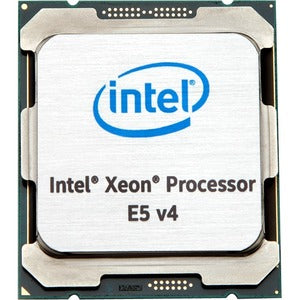

Cisco Intel Xeon E5-2600 v4 E5-2699A v4 Docosa-core (22 Core) 2.40 GHz Processor Upgrade

Upgrade your Cisco data center with the Intel Xeon E5-2600 v4 family’s powerhouse performance in a single 22-core package. The E5-2699A v4 variant delivers dense multi-threaded throughput, enhanced memory bandwidth, and enterprise-grade reliability—tagged with a 2.40 GHz base clock that belies its capability in demanding workloads. Built on the 14nm Broadwell-EP architecture, this processor is designed for virtualization, high-volume databases, analytics, and other compute-intensive tasks that demand speed, efficiency, and scalability. When deployed in compatible Cisco servers and infrastructure, it unlocks greater virtual machine density, faster query responses, and smoother operation of mission-critical applications without a dramatic increase in power draw.

• Massive multi-threaded performance: With 22 cores and 44 threads, this CPU excels at virtualization, database workloads, and parallel processing tasks. Enterprises benefit from higher VM density, faster context switching, and improved throughput for workloads like SQL Server, Oracle, and SAP HANA in the data center.
• Large, fast cache for data-intensive workloads: A generous 55 MB of L3 cache reduces memory latency and accelerates data access for large analytical queries, in-memory databases, and real-time processing.
• Efficiency at scale thanks to a 14nm process: The 14nm Broadwell-EP design delivers better performance-per-watt, enabling cooler operation in dense rack deployments and reducing total cost of ownership for 24/7 Cisco workloads.
• Flexible I/O and memory capabilities: 40 PCIe lanes and support for DDR4 memory (ECC options) provide the bandwidth and expandability needed for high-speed storage, accelerators, and large memory configurations—crucial for data-heavy enterprise applications.
• Enterprise-grade reliability and compatibility: Built for server-class reliability, this Xeon upgrade supports ECC memory, Intel reliability, availability, and serviceability (RAS) features, and compatibility with Cisco server platforms to help ensure uptime and long-term support for critical workloads.

Technical Details of Cisco Intel Xeon E5-2600 v4 E5-2699A v4 Docosa-core (22 Core) 2.40 GHz Processor Upgrade

• Model: Intel Xeon E5-2699A v4
• Cores / Threads: 22 cores / 44 threads
• Base Frequency: 2.40 GHz
• Turbo Frequency: Up to 3.60 GHz (turbo mode varies by workload and cooling)
• Cache: 55 MB L3 cache
• Lithography: 14nm
• Socket: LGA 2011-v3
• Memory Support: DDR4-2133/2400 ECC Registered/Unbuffered (RDIMM/LRDIMM), up to 1 TB per socket with compatible DIMMs
• Memory Channels: 4-channel memory controller per socket
• PCIe Lanes: 40 PCIe 3.0 lanes
• Integrated I/O: Intel QPI (QuickPath Interconnect) with high-speed interconnect options between CPU and chipset
• TDP: 120 W
• Security & Features: Intel AES-NI, VT-d, VT-x, Intel TXT, ECC support, and other enterprise RAS features
• Recommended Use: High-end virtualization hosts, dense database servers, large-scale analytics, and Cisco-based data-center deployments requiring robust compute density

How to Install Cisco Intel Xeon E5-2600 v4 E5-2699A v4 Docosa-core (22 Core) 2.40 GHz Processor Upgrade

Installing this processor upgrade should be performed by qualified personnel following proper static precautions and system-specific guidelines. The steps below provide a general method for upgrading in compatible Cisco server environments:

1) Prepare the system and verify compatibility: Ensure your Cisco server supports Intel Xeon E5-2600 v4 processors, has the appropriate socket (LGA 2011-v3), and that the motherboard BIOS is updated to a version that supports the E5-2600 v4 family. Power down the system, unplug the power cords, and discharge static electricity using a grounded wrist strap.

2) Remove the existing processor and cooling solution: Access the CPU socket by removing the server cover and any cooling assembly mounted atop the processor. Release the CPU socket lever and carefully lift out the existing CPU. Clean any old thermal material from the heatsink area if needed, following the manufacturer’s guidance for thermal interface handling.

3) Install the new CPU: Align the processor with the socket using the notches or golden triangle indicators to ensure correct orientation. Place the CPU gently into the socket and secure the lever, ensuring even seating without bending pins or bending the CPU contacts. If your system uses a preload or contact paste, verify whether it is pre-applied or if fresh thermal paste is required; apply according to the server’s service manual and thermal guidelines.

4) Reattach the cooling solution: Reinstall the heatsink/fan assembly, ensuring proper thermal paste coverage and even mounting pressure as specified by the cooler manufacturer. Reconnect all power and fan cables, and verify there are no obstructions to airflow inside the chassis.

5) BIOS and firmware checks: Reassemble the server, power on, and enter the BIOS/UEFI. Confirm that the new processor is recognized, enable any required virtualization or performance-enhancing features (such as VT-d/VT-x and required memory settings), and apply the appropriate performance/tuning profiles. Save changes and boot into the operating system. It may be necessary to install or update microcode patches and firmware to ensure maximum stability and performance.

6) Run validation tests: After installation, run CPU stability tests, memory checks, and workload-specific benchmarks to confirm that the upgrade delivers the expected performance. Monitor temperatures and fan behavior during initial operation to ensure cooling is adequate in your Cisco environment.

Frequently asked questions

• Is this processor compatible with my Cisco server? The Intel Xeon E5-2600 v4 family is designed for servers using the LGA 2011-v3 socket and supports PCIe 3.0 and DDR4 memory. Compatibility depends on the server’s motherboard compatibility list and the BIOS version. Always confirm with Cisco’s hardware support or your system integrator before upgrading.
• What workloads benefit most from the 22-core E5-2699A v4? This CPU is ideal for virtualization hosts (many VMs per socket), large relational databases, data analytics, in-memory workloads, and multi-threaded enterprise applications that demand foreground and background processing with high core counts.
• How much memory can I install? With DDR4 DIMMs, you can typically reach up to 1 TB per socket when using supported DIMMs (64 GB modules in a fully populated configuration). This makes the processor well-suited for memory-intensive workloads when paired with the right Cisco server platform.
• What advantages does this upgrade offer compared to older generations? The E5-2600 v4 family provides improved performance per watt, higher core counts, larger caches, and advanced virtualization features, enabling greater VM density, faster data processing, and better overall efficiency in a modern data center.\n
• What considerations are needed for enterprise reliability? Look for ECC memory support, RAS features, and BIOS/firmware updates to maintain stability. In Cisco environments, verify compatibility with the server’s service agreements and ensure proper thermal and power provisioning to sustain continuous operation.
