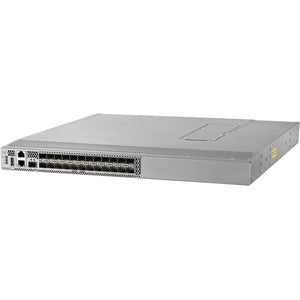

Cisco MDS 9124V 64-Gbps 24-Port Fibre Channel Switch

The Cisco MDS 9124V 64-Gbps 24-Port Fibre Channel Switch is engineered to deliver ultra-fast SAN connectivity for all-flash arrays and high-performance hosts. With 24 ports capable of up to 64 Gbps per port, this switch creates a scalable, low-latency fabric that accelerates data access, reduces bottlenecks, and supports the most demanding enterprise workloads. Built for data centers that demand reliability, visibility, and intelligent management, the MDS 9124V combines Cisco’s architectural sophistication with state-of-the-art analytics and telemetry to keep storage networks running smoothly as demands evolve. This model comes with exhaust optics (24 x 32G SW Optics) and is designed to fit into modern data-center environments where cooling efficiency and footprint optimization matter. Whether you’re expanding an existing SAN or building a modern fabric from the ground up, the MDS 9124V is designed to deliver the performance and insight needed to sustain mission-critical operations.

• Blazing performance for demanding workloads — The MDS 9124V provides 24 high-speed Fibre Channel ports delivering up to 64 Gbps per port. This level of bandwidth supports all-flash arrays, large-scale virtualization, and I/O-intensive databases with low latency and predictable throughput. By increasing fabric capacity and reducing contention, this switch helps accelerate data-intensive operations, shorten backup windows, and improve recovery times. The result is a SAN that keeps pace with today’s data-center requirements while providing room to grow for tomorrow’s workloads.
• Integrated analytics and telemetry for proactive management — Built-in analytics and telemetry give operators continuous insight into fabric health, traffic patterns, and performance hotspots. Real-time visibility supports proactive tuning of zoning, QoS policies, and fabric provisioning. With telemetry-driven alerts and historical data, administrators can forecast capacity needs, optimize resource utilization, and minimize MTTR. This level of observability is especially valuable in all-flash deployments where even small delays can ripple through the storage stack.
• Data-center ready design with efficient cooling — The exhaust-based optics configuration and robust cooling approach are designed to fit dense data-center racks. The MDS 9124V’s architecture emphasizes reliability, predictable thermal performance, and energy efficiency, helping to maintain steady operation in high-demand environments. Its cooling-oriented design reduces hot spots and supports long, uninterrupted run times, contributing to lower total cost of ownership while maintaining performance integrity in the face of sustained I/O pressure.
• Advanced fabric management and secure, scalable operation — This switch supports core SAN fabric features that storage teams rely on, including zoning and class-based QoS to isolate traffic classes and guarantee performance for critical workloads. Centralized management through Cisco DCNM and CLI simplifies provisioning, configuration backups, and ongoing fabric changes. With telemetry-backed health checks and policy-driven QoS, administrators can enforce service levels, optimize fabric efficiency, and scale the SAN fabric as needs evolve without sacrificing control or security.
• All-flash-ready deployment with enterprise-grade reliability — Engineered for flash-first storage architectures, the MDS 9124V delivers scalable throughput for all-flash arrays and high-performance hosts. The 24-port fabric supports rapid data movement, accelerating data protection operations and backups while supporting virtualization, databases, and analytics workloads. The 24 32G SW Optics (Exhaust) configuration is purpose-built to balance performance with cooling efficiency, ensuring dependable operation in modern data centers that prioritize speed and reliability.

Technical Details of Cisco MDS 9124V

• Ports: 24 x 64-Gbps Fibre Channel ports for high-bandwidth SAN connectivity
• Optics: 24 x 32G SW Optics Exhaust configuration included
• Performance: Up to 64 Gbps per port with low latency to support all-flash arrays and high-performance hosts
• Analytics and telemetry: Built-in analytics and telemetry for real-time fabric visibility and proactive management
• Fabric features: Enterprise-grade SAN fabric capabilities including zoning and QoS to guarantee performance
• Cooling and design: Exhaust-focused cooling design suitable for dense data-center deployments
• Management: Compatible with Cisco management tools (e.g., Cisco DCNM) for centralized fabric administration

How to Install Cisco MDS 9124V

preparing your environment and performing a clean, reliable installation starts with confirming rack space and power readiness. Begin by ensuring you have adequate rack space and proper cooling in your data center, along with a stable power supply and a management network capable of supporting your SAN operations. Mount the MDS 9124V in a suitable rack, ensuring the chassis is secured and there is adequate airflow around the appliance. Connect the switch to your management network and attach the required Fibre Channel cables to the switch ports, routing them toward storage arrays and host HBAs as part of your initial fabric layout. After physical installation, power on the device and connect to the console port or management interface to begin the configuration process.

Initial configuration should establish a reliable management plane and baseline fabric settings. Access the switch via CLI or Cisco DCNM and set up essential parameters such as hostname, management IP address, and administrative credentials. Configure your SAN fabric domain, including VSAN-like constructs if applicable, and define basic zoning and service policies. Enable telemetry collection, which will start streaming fabric health and performance data to the management platform for ongoing monitoring. Plan your QoS strategy to classify traffic by workload, storage tier, or application, ensuring critical workloads receive the bandwidth and latency guarantees they require. Validate connectivity by performing fabric membership checks, verifying that storage targets and hosts appear as expected, and running throughput tests to confirm the 64-Gbps per-port performance is achieved under representative workloads.

As you expand your fabric, use Cisco DCNM or the CLI to add storage targets, map zones, and extend the fabric with additional switches if needed. Keep firmware aligned with Cisco’s recommended release train to ensure compatibility with your storage arrays and host systems, and maintain a regular schedule for firmware and software health checks. Finally, establish ongoing backup configurations for switch configurations and maintain a change-management process to track modifications to zoning, QoS, and security policies. With careful planning and disciplined maintenance, the MDS 9124V will deliver consistent performance and robust reliability across the SAN fabric.

Frequently asked questions

• Q: What workloads is the Cisco MDS 9124V best suited for?

  A: It is designed for high-performance SAN environments, including all-flash array deployments, large-scale virtualization, and databases that require low latency and high throughput. Its 24 64-Gbps ports and built-in analytics make it well-suited for data centers prioritizing speed, reliability, and visibility across the storage fabric.

• Q: Does the 9124V support advanced analytics and telemetry?

  A: Yes. The switch includes integrated analytics and telemetry to monitor fabric health, traffic patterns, and performance hotspots in real time, enabling proactive optimization and capacity planning.

• Q: How does the exhaust optics configuration affect cooling?

  A: The exhaust-based optics design helps manage thermal performance in dense rack environments by directing heat away from critical components, supporting stable operation under heavy I/O workloads.

• Q: Can I manage the MDS 9124V with Cisco DCNM?

  A: Yes. Cisco DCNM provides centralized fabric management for provisioning, monitoring, and troubleshooting, complementing CLI-based administration for a scalable SAN deployment.

• Q: Is this switch suitable for new installations or only for upgrades?

  A: It supports both new SAN deployments and expansions of existing fabrics. Its high port count and robust analytics are advantageous for building out a modern, scalable storage network from the ground up, as well as integrating into established environments.

• Q: What kind of support and updates are available for the MDS 9124V?

  A: Cisco provides ongoing software updates, security patches, and firmware releases aligned with the Cisco appliance lifecycle. Regular updates help maintain performance, security, and compatibility with evolving storage architectures.
