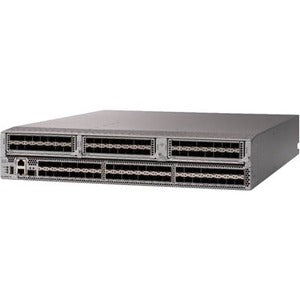

Cisco MDS 9396T 32G 2 RU Fibre Channel Switch

The Cisco MDS 9396T 32G 2 RU Fibre Channel Switch is engineered to provide the high-speed connectivity your Storage Area Network (SAN) demands. With its state-of-the-art features and robust architecture, this switch ensures outstanding performance, scalability, and reliability, making it the perfect solution for medium to large departmental SANs. Whether you are upgrading your existing network infrastructure or deploying a new system, the MDS 9396T guarantees seamless integration and a design that prepares you for the future.

• High-Speed Connectivity: Embrace ultra-fast 32-Gbps Fibre Channel connectivity, ensuring low-latency performance under all traffic conditions. This architecture not only delivers predictable throughput but also maintains consistent latency, making it critical for mission-critical applications.
• Scalable Design: The semi-modular architecture allows you to start with as few as 48 ports and expand in increments of 16 ports, providing flexibility and scalability to grow your infrastructure as your organizational needs change. Configure up to 96 ports efficiently.
• Seamless Integration with NVMe: Being NVMe-ready means that the MDS 9396T can transition effortlessly to Fibre Channel Non-Volatile Memory Express (FC-NVMe) workloads, bypassing the need for any hardware upgrades. Your investment is safeguarded, and migration to advanced storage solutions is simplified.
• Intelligent Network Services: The switch is equipped with advanced features such as slow-drain detection, Virtual SAN (VSAN) support, and Access Control Lists (ACLs). These features significantly enhance intelligent frame processing and facilitate the development of enterprise-wide storage networks.
• Comprehensive Diagnostic Tools: With sophisticated diagnostic capabilities including Inter-Switch Link (ISL) diagnostics, HBA diagnostics, and built-in Cisco Call Home functionality, the MDS 9396T ensures reliable operation while enabling rapid issue resolution.

Technical Details of the Cisco MDS 9396T 32G 2 RU Fibre Channel Switch

• Model: MDS 9396T
• Ports: 96 Fibre Channel ports
• Speed: 32 Gbps per port
• Form Factor: 2 rack units (RU)
• NVMe-ready: Yes
• Management: Comprehensive telemetry and analytics
• Power Supply: Dual redundant power supplies
• Dimensions: 3.5 x 17.5 x 26.5 inches
• Weight: Approximately 35 lbs

How to Install the Cisco MDS 9396T 32G 2 RU Fibre Channel Switch

1. Select the Installation Site: Identify a suitable location in your data center that meets environmental requirements for temperature and airflow.
2. Install the Rails: Attach the mounting rails to the switch and secure them into the rack.
3. Mount the Switch: Carefully insert the switch into the mounted rails until it clicks into position. Ensure it is firmly mounted to prevent any hazards.
4. Connect Power: Connect the dual power supply connectors and ensure they are linked to a reliable power source.
5. Connect Fibre Channel Ports: Utilize compatible transceivers based on your desired port configurations and connect them to your storage and host devices.
6. Configure the Switch: Access the management interface to configure zoning, VSANs, and any additional settings necessary for your network setup.
7. Test the Configuration: Conduct diagnostics to ensure all connections function properly before activating the switch.

Frequently Asked Questions

• What is the maximum number of ports I can configure on the Cisco MDS 9396T? You can configure the switch with up to 96 ports, starting from a minimum of 48.
• Does the MDS 9396T support backward compatibility with older Fibre Channel transceivers? Yes, it supports existing 16 or 8 Gbps transceivers, ensuring you protect your investment.
• What types of environments are best suited for the MDS 9396T? It is optimal for medium to large departmental SANs and can also be utilized in high-density hyperscale server environments.
• Can I implement advanced security features with the MDS 9396T? Yes, it offers traffic encryption options and robust access controls to ensure compliance with stringent security requirements.
• How do I troubleshoot issues with the MDS 9396T? Utilize its comprehensive diagnostic tools and Cisco Call Home capability to facilitate efficient problem resolution.
