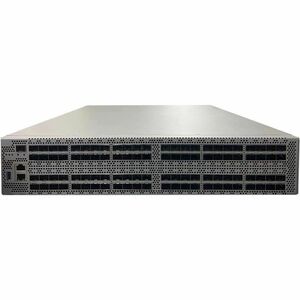

Cisco MDS 9396V 64G 2RU Fibre Channel Switch — 48 Active Ports, High-Performance SAN

The Cisco MDS 9396V 64-Gbps Fibre Channel switch delivers enterprise-grade SAN performance with ultra-low latency, scalable fabric density, and robust reliability. Designed for demanding data centers, this 2RU switch combines high-bandwidth Fibre Channel with intelligent management features to simplify deployment, streamline operations, and protect your storage investments. With 48 active ports out of a 96-port architecture, it provides flexibility for growth, while maintaining the reliability and deterministic performance essential for mission-critical databases, virtualization, and large-scale backup workflows.

• Extreme performance and low latency: The Cisco MDS 9396V supports 64-Gbps Fibre Channel bandwidth per port, enabling high-speed storage access and rapid data movement across the fabric. This translates to faster provisioning, improved IOPS for databases, and smoother replication for disaster recovery, all while maintaining predictable latency that storage workloads demand.
• Redundant power and cooling for mission-critical reliability: Equipped with 2 hot-swappable PSUs and 3 hot-swappable fans, this switch is engineered for continuous operation in data center environments. Redundant power ensures fabric availability even if one supply or cooling component cycles offline, while intake cooling optimizes airflow for consistent performance under load.
• Efficient 2RU form factor with dense port density: The 2RU footprint maximizes rack space utilization, offering substantial port capacity (96 ports across the switch with 48 active ports in operation by default). This design supports large fabric topologies without sacrificing data-center space or cooling efficiency, making it an ideal choice for growing SANs and consolidated storage pools.
• Advanced SAN features for simplified management and flexibility: The MDS 9396V leverages Cisco SAN-OS capabilities and integrates smoothly with Cisco management tools to streamline provisioning, zoning, and fabric automation. Features such as NPIV, versatile zoning, and fabric services help IT teams maintain secure, scalable SANs while reducing manual configuration effort and risk of misconfiguration.
• Future-ready for scalability and integration: Built to support enterprise-grade storage architectures, this switch integrates with existing Cisco MDS deployments and other SAN components. Its architecture enables seamless fabric expansion, multi-site replication readiness, and compatibility with virtualization-aware storage services, ensuring long-term value as workloads evolve and storage technologies advance.

Technical Details of Cisco MDS 9396V 64G 2RU FC Switch

• Model: Cisco MDS 9396V
• Form factor: 2U rack-mount switch
• Port configuration: 96-Port Fibre Channel switch with 48 active ports (architecture supports up to 96 ports); high-density design for large SAN fabrics
• Bandwidth: 64 Gbps Fibre Channel per port (high-speed fabric for rapid storage access)
• Power and cooling: 2 hot-swappable power supplies (PSUs) for redundancy and 3 hot-swappable fans; intake cooling configuration
• Management: Cisco SAN-OS with compatibility for Cisco management ecosystems; supports Cisco DCNM and scriptable fabric automation
• Key capabilities: NPIV support, zoning and fabric services, scalable SAN topology support, low-latency switching designed for database and virtualization workloads
• Security and reliability: Redundant components, modular architecture, and mature SAN security features to help protect data in flight and ensure fabric stability
• Compatibility: Designed to integrate with the Cisco MDS family of switches and storage arrays, providing a cohesive, scalable storage network
