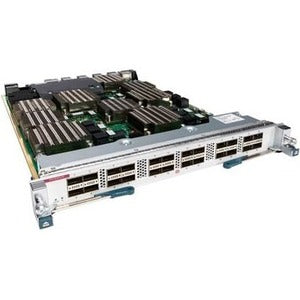

Cisco Nexus 7000 M3-Series 24-Port 40 Gigabit Ethernet Module

The Cisco Nexus 7000 M3-Series 24-Port 40 Gigabit Ethernet Module is the ultimate network solution designed to elevate your data center performance and scalability. Built with the latest Cisco Nexus M3-Series switch-on-a-chip (SoC) application-specific integrated circuits (ASICs), this module provides a power-efficient and flexible packet engine perfect for any public or private cloud environment. Its modular design ensures you can enjoy high-speed connectivity while maintaining robust security features, making it a stellar addition to your network infrastructure.

• High-Performance ASIC Technology: The advanced M3-Series SoC integrates multiple powerful ASICs, allowing seamless management of 1, 10, 40, and 100 Gigabit Ethernet ports within port groups. This ensures optimal performance and effective resource allocation across your network.
• Advanced Security Features: Equipped with support for MAC Security (MACsec) at wire rate, this module offers 128- and 256-bit encryption on all ports at all speeds. This hardware-level support for security protocols guarantees data confidentiality and integrity, meeting the IEEE 802.1AE (MACsec) standard.
• Versatile Scalability: The module's integrated hardware capability for Cisco TrustSec® security simplifies management and enhances scalability through enhanced security access control lists (SACLs) using security-group tags (SGTs). It effectively enforces security policies directly in hardware.
• Distributed Services at Scale: Featuring a high-performance onboard fabric services accelerator (FSA), this I/O module supports distributed services like Bidirectional Forwarding Detection (BFD) and Cisco NetFlow, ensuring high performance and responsiveness as your network expands.
• Flexible Virtualization: The Virtual Device Context (VDC) capability allows users to partition one I/O module into multiple virtual switches. Each port group powered by a single M3-Series ASIC can be seamlessly integrated into one VDC, resulting in enhanced resource management and isolation.

Technical Details of Cisco Nexus 7000 M3-Series 24-Port 40 Gigabit Ethernet Module

• Port Configuration: 24 x 40 Gigabit Ethernet ports
• Supported Technologies: 40GBase-X, 10GBase-SR, 1GBase-SX
• Encryption: 128- and 256-bit MACsec
• VDC Capability: Yes
• Dimensions: 1.5U form factor
• Power Consumption: Optimized for energy efficiency
• Compatibility: Designed for Cisco Nexus 7000 Series switches

How to Install the Cisco Nexus 7000 M3-Series 24-Port 40 Gigabit Ethernet Module

Installing the Cisco Nexus 7000 M3-Series module is a straightforward process. Follow these steps for a successful installation:

1. Ensure that your Cisco Nexus 7000 chassis is powered down and unplugged before proceeding.
2. Remove the existing module (if applicable) from the chassis by loosening the retaining screws and gently pulling it out.
3. Align the new Cisco Nexus 7000 M3-Series module with the slot in the chassis, ensuring that the connectors line up correctly.
4. Firmly insert the module into the slot until you hear a click, indicating that it is securely seated.
5. Tighten the retaining screws to secure the module in place.
6. Reconnect power to your chassis and power it on.
7. Access the console interface to verify that the new module is recognized and functioning correctly.

Frequently Asked Questions

• What types of ports does the Cisco Nexus 7000 M3-Series module support? The module supports 1, 10, 40, and 100 Gigabit Ethernet ports, providing versatile connectivity options for various network configurations.
• Is the module compatible with all Cisco Nexus 7000 Series switches? Yes, the Cisco Nexus 7000 M3-Series 24-Port 40 Gigabit Ethernet Module is designed specifically for compatibility with the Cisco Nexus 7000 Series chassis.
• What security features does this module offer? The module includes advanced security features such as MACsec encryption, Cisco TrustSec® security capabilities, and hardware-based enforcement of security policies, ensuring robust protection for your network.
• Can the module support virtual device contexts (VDC)? Yes, the Cisco Nexus 7000 M3-Series module supports VDC capability, allowing multiple virtual switches to be created from a single I/O module for improved resource management.
• How does the onboard fabric services accelerator (FSA) enhance performance? The FSA supports high-performance distributed services such as BFD and Cisco NetFlow, ensuring that your network can scale efficiently while maintaining optimal performance.
