Description

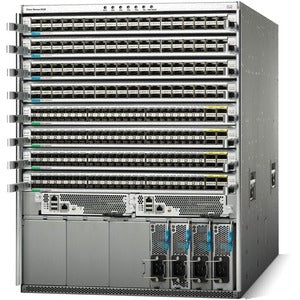

Discover unmatched data center performance with the Cisco Nexus 9500 9508 Layer 3 Switch, a cornerstone of modern, scalable networks. Built for multinode architectures and deployment across bare-metal, virtual, and cloud environments, this modular, fabric-enabled platform delivers line-rate routing, exceptional agility, and seamless integration with contemporary data center architectures. Designed for large-scale enterprises, service providers, and cloud providers, the Nexus 9500 9508 is engineered to handle the evolving demands of modern applications—from microservices to big data analytics—while delivering operational simplicity, robust security, and advanced automation capabilities.
-
High-performance, scalable fabric architecture: The Nexus 9500 9508 switches leverage a modular, fabric-based architecture that enables scalable, non-blocking forwarding across multiple line-card densities. This design supports massive throughput, low latency, and predictable performance for data center spine-and-leaf deployments. With flexible port densities and forward-looking fabric capabilities, the switch accommodates growing workloads without compromising efficiency or reliability.
-
Layer 3 routing at scale with advanced EVPN/VXLAN: Built for modern networks, the 9500 9508 provides robust Layer 3 routing capabilities, IPv4/IPv6 support, and advanced control-plane features. It supports MP-BGP EVPN for VXLAN overlays, enabling seamless multi-tenant segmentation, efficient traffic isolation, and scalable data center interconnects. This makes it an ideal backbone for large-scale virtualization, cloud integration, and software-defined networking strategies.
-
Extreme reliability and availability: The switch is engineered for uninterrupted service with redundant power, hot-swappable components, and ISSU-capable software upgrades. Its resilient architecture minimizes downtime during maintenance or upgrades, helping organizations maintain service level expectations while adjusting capacity to changing demands.
-
Comprehensive security and intelligent management: Cisco’s NX-OS-based feature set combines advanced security controls, role-based access, secure management interfaces, and telemetry-driven observability. Integrated security policies, access controls, and monitoring reduce risk and simplify governance, while rich management APIs support automation and integration with existing IT workflows.
-
Deployment versatility for modern data centers: The Nexus 9500 9508 is designed to support bare-metal, virtualized, and cloud-native environments. It integrates smoothly with data center fabrics, virtualization platforms, and orchestration tools, enabling consistent policies, unified management, and accelerated application deployment across hybrid architectures.
Technical Details of Cisco Nexus 9500 9508 Layer 3 Switch
- Model: Cisco Nexus 9500 9508 Layer 3 Switch
- Series: Nexus 9500 family
- Architecture: Modular fabric-based platform designed for scalable spine-leaf deployments
- Forwarding: Line-rate Layer 3 routing with IPv4/IPv6 support
- Routing protocols: BGP, OSPF, IS-IS, MP-BGP EVPN for VXLAN overlays
- Port options: High-density 1/10/40/100G interfaces (SKU-dependent line cards and fabric modules)
- High availability: Redundant power supplies, hot-swappable components, ISSU software upgrades
- Management: NX-OS with programmable APIs, security features, telemetry, and integration with Cisco DC ecosystem
- Security: RBAC, secure management, authentication, and policy enforcement for data-plane and control-plane
- Integration: Flexible with on-premises, hybrid, and cloud deployments; supports VXLAN EVPN and seamless interconnects
How to Install Cisco Nexus 9500 9508 Layer 3 Switch
- Confirm site readiness: Ensure adequate space, weight capacity, cooling, and power to support the chassis, line cards, and fabric modules.
- Rack and mount: Install the Nexus 9508 chassis in a suitable 19-inch rack, ensuring proper alignment and vibration isolation. Install necessary fans and maintain clear airflow around the chassis.
- Power and redundancy: Connect power supplies to redundant power sources and verify proper power sequencing. Confirm that recommended PDU and cabling are used for reliability and safety.
- Connect management and fabric: Attach management interfaces and fabric modules according to the installation guide. Establish the control-plane connectivity between supervisor modules (or equivalent control-plane components) to enable cluster-wide management.
- Initial software load: Load the recommended NX-OS version and perform a baseline configuration. Validate that the device boots correctly and that management interfaces are reachable from your network management system.
- Basic configuration: Configure hostname, management IP, and essential security settings. Enable Layer 3 routing features, define routing protocols (e.g., OSPF/BGP), and establish EVPN/VXLAN as required by your topology.
- Validation and testing: Verify fabric health, perform basic connectivity tests across spine-leaf paths, and confirm management plane reachability. Validate redundancy by simulating failover of power, links, or control-plane components.
- Policy and automation: Apply standard security policies, access controls, and QoS rules. Integrate with your existing orchestration and automation tools to enable consistent, repeatable deployments.
Frequently Asked Questions
-
Q: What is the primary purpose of the Cisco Nexus 9500 9508 Layer 3 Switch?
A: It is a modular, fabric-based switch designed to serve as a high-performance backbone for data centers, providing scalable Layer 3 routing, VXLAN EVPN overlays, and seamless integration with bare-metal, virtual, and cloud environments. -
Q: Does it support EVPN VXLAN for multi-tenant environments?
A: Yes. The Nexus 9500 9508 supports MP-BGP EVPN for VXLAN overlays, enabling scalable, isolated tenant networks and efficient data plane connectivity across large-scale deployments. -
Q: How does the platform handle availability and maintenance?
A: It provides redundant power supplies, hot-swappable components, and ISSU-capable software upgrades to minimize downtime and maintain service continuity during maintenance and scaling. -
Q: What kind of management and automation features are included?
A: The switch runs NX-OS with rich APIs, telemetry, and security features, facilitating automation, centralized management, and integration with Cisco DCN and third-party orchestration tools. -
Q: In what deployment scenarios is the Nexus 9500 9508 most effective?
A: It is most effective in large data centers with spine-leaf topologies, multi-tenant environments, hybrid cloud architectures, and environments requiring high-throughput Layer 3 routing and flexible VXLAN-based overlays.
