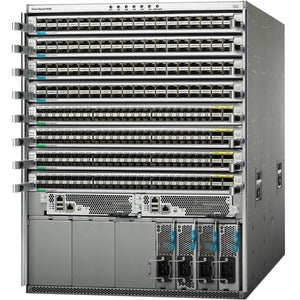

Cisco Nexus 9508 Switch Chassis

In the fast-evolving landscape of modern data centers, applications no longer live in a single silo. They span virtualized environments, cloud resources, and traditional on-premises infrastructure. The Cisco Nexus 9508 Switch Chassis is purpose-built to meet these complex realities with a modular, scalable, and highly reliable platform that acts as the backbone of enterprise and service provider networks. This chassis combines high performance with flexible deployment options, enabling you to design spine-leaf architectures, support multi-tenant environments, and future-proof your investment as workloads grow and traffic patterns shift. Built to optimize uptime, simplify management, and accelerate operational efficiency, the Nexus 9508 is a cornerstone for organizations pursuing continuous delivery, reliable storage access, and accelerated application performance across hybrid architectures.

• Modular design for scalable data center performance: The Nexus 9508 is engineered for growth, featuring an 8-slot chassis that accommodates a variety of line cards, fabric modules, and supervisor options. This modularity lets you tailor capacity and performance to your evolving workloads, from mid-market deployments to large-scale data centers, without sacrificing flexibility or requiring a forklift upgrade later.
• High-density, flexible port options for future-ready networks: With modular line cards and scalable uplink options, this chassis supports dense 40 GbE and 100 GbE connectivity, enabling efficient spine-leaf designs and providing headroom for today’s requirements and tomorrow’s expansion. The architecture is designed to handle burst traffic, virtualization overlays, and high-performance storage access with ease.
• Resilient, enterprise-grade reliability: Cisco engineering emphasizes redundancy as a baseline—hot-swappable power supplies, redundant cooling fans, and robust fault isolation to minimize downtime. The chassis supports non-stop forwarding and seamless component replacement, allowing maintenance windows to be scheduled with minimal impact on critical applications.
• NX-OS powered management with automation and security: The Nexus 9508 runs Cisco NX-OS, offering a feature-rich operating system that supports automation, policy-based management, and scalable orchestration. Integrate with data center fabrics and automation platforms for streamlined provisioning, consistent policy enforcement, and improved visibility across the network.
• Comprehensive security, monitoring, and operational visibility: Built to support secure admin access, role-based policies, and granular telemetry, the chassis provides deep insights into health, performance, and security posture. Centralized monitoring helps IT teams detect anomalies early, enforce compliance, and optimize network behavior across vast deployments.

Technical Details of Cisco Nexus 9508 Switch Chassis

• Product type: Chassis for modular data center switching
• Slot count: 8-slot chassis designed for flexible card and fabric configurations
• Form factor: 19-inch rack-mountable chassis suitable for standard data center racks
• Power and cooling: Supports redundant, hot-swappable power supplies and cooling fans to maximize uptime
• Management interface: Cisco NX-OS with support for automation, telemetry, and programmable interfaces for integration with DC orchestration tools
• Networking capabilities: Flexible line card options enable scalable 40 GbE and 100 GbE connectivity suitable for spine-leaf and large-scale topologies

How to install Cisco Nexus 9508 Switch Chassis

Installing a Nexus 9508 chassis is a systematic process that prioritizes safety, airflow, and proper configuration. Begin by preparing the installation site: ensure a clean, level, and vibration-free rack with adequate clearance for cooling, cable management, and future expansion. Verify power availability and ensure that the facility’s electrical infrastructure meets the chassis’s requirements. Grounding and electrostatic discharge precautions should be observed at all times to protect sensitive components.

• Step 1 — Unpack and inspect: Remove the chassis and components from the packaging and visually inspect for any shipping damage. Confirm that all listed parts, including the power supplies, fans, supervisor modules, line cards, and accessories, are present and undamaged before proceeding.
• Step 2 — Rack installation and positioning: Lift the chassis using proper equipment, align it with the rack rails, and secure it according to your data center’s standards. Ensure sufficient clearance around the unit for airflow and cable management, and verify that the chassis is level to prevent strap or alignment issues during component installation.
• Step 3 — Install power supplies and cooling: Insert redundant power supplies into their designated bays and connect them to the facility power feeds. Install cooling fans if required and verify that the chassis fans are operating within normal temperature ranges. Proper power redundancy is critical for maintaining uptime and simplifying maintenance windows.
• Step 4 — Install supervisor and line cards: Slide the supervisor modules into their slots and secure them, then install the chosen line cards and fabric modules as dictated by your topology. Follow Cisco’s documented guidelines for seating depth and stacking order to ensure proper signaling and fabric interconnects.
• Step 5 — Cable provisioning and connectivity: Route and label data, management, and uplink cables to minimize cross-talk and maximize airflow. Connect uplinks to switches and storage networks as designed for your spine-leaf topology, ensuring that cable lengths and types align with supported interfaces.
• Step 6 — Initial power-up and POST: Power on the chassis and monitor the Power-On Self-Test (POST) results. Confirm that all modules initialize correctly, fans ramp appropriately, and redundant power supplies share load as intended.
• Step 7 — Basic configuration and firmware alignment: Establish initial management access via console or out-of-band management, update firmware if required, and apply baseline configurations for management, security, and monitoring. Validate connectivity to core services and ensure that the chassis communicates with your centralized management tools.
• Step 8 — Validation and monitoring: Run health checks, verify interface status, and confirm that routing or switching policies are properly propagated across the chassis and connected devices. Implement monitoring with SNMP, NetFlow, or your preferred telemetry solution to maintain ongoing visibility.

Frequently asked questions

• What is the Cisco Nexus 9508 Switch Chassis best used for? It is designed for large-scale data centers and enterprise networks that require modular, high-density switching with centralized management. It supports spine-leaf architectures, virtualization, storage networking, and multi-tenant environments, providing a versatile foundation for modern application deployment.
• Does the Nexus 9508 support Cisco ACI or other orchestration tools? Yes, it is compatible with Cisco’s data center interconnect and orchestration ecosystems. It can participate in policy-based automation and centralized fabric management, enabling consistent configuration and rapid scaling across the data center.
• What are the key reliability features? The chassis offers redundant hot-swappable power supplies and cooling, fault isolation, and non-stop forwarding capabilities to minimize downtime during maintenance or component failures.
• What should I consider when planning port density? Port density depends on your chosen line cards and fabric modules. The Nexus 9508 is designed to accept a range of high-density 40 GbE and 100 GbE options, allowing you to tailor performance and capacity to your specific workload mix and growth projections.
• What kind of maintenance and support can I expect? Cisco and authorized partners typically provide ongoing software maintenance, hardware support, and regular firmware updates. Warranty terms vary by region and reseller, so consult your supplier for the exact coverage and service level agreements applicable to your deployment.
