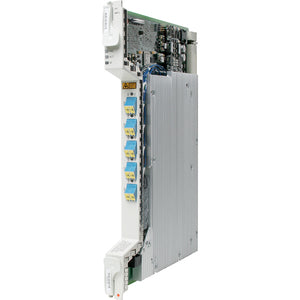

Cisco Optical Amplifier Module
The Cisco Optical Amplifier Module for the ONS 15454 MSTP is a high-performance, C-band amplifier card engineered to extend the reach and increase the capacity of metro, regional, and long-haul networks. Designed to integrate seamlessly with Cisco’s ONS 15454 MSTP intelligent DWDM architecture engine, this amplifier card optimizes signal quality across multiple wavelengths while reducing the need for constant manual tuning. It supports dynamic channel management within a densely packed DWDM system, helping service providers scale bandwidth, improve spectral efficiency, and maintain robust link budgets. Ideal for operators seeking to maximize fiber utilization in evolving transport networks, the module provides reliable amplification, streamlined management, and a clear path to future DWDM growth.
- Extend reach and increase capacity: This C-band optical amplifier module boosts weak signals, compensates for fiber losses, and enables longer spans across metro, regional, and long-haul deployments. By enhancing the signal-to-noise ratio across multiple channels, it helps you preserve high-quality transmission over greater distances and through challenging fiber paths, reducing the need for repeaters and regenerators and lowering operational costs over time.
- Intelligent DWDM integration with MSTP architecture: Built to work within the ONS 15454 MSTP intelligent DWDM ecosystem, the amplifier supports automated gain control, channel-power normalization, and OSNR optimization across channels. The result is stable, predictable performance as traffic patterns change, with less manual intervention and faster service provisioning. It coordinates with the MSTP engine to maintain balanced amplification and reliable protection switching across the network.
- Deployment flexibility for diverse networks: Whether deployed in metro rings, regional backbones, or long-haul trunks, the module adapts to various topologies. Its design supports hot-swapping in compatible Cisco shelves, minimizing downtime during upgrades or maintenance. A compact form factor and standard fiber interfaces simplify installation in dense data centers and sector cabinets, while scalable channel configurations accommodate ongoing DWDM growth.
- Reliability and proactive management: Built for continuous operation, the amplifier features health monitoring and fault indicators that feed into Cisco management systems. Operators can observe key parameters such as gain levels, input/output power, and overall link health to ensure consistent performance. Robust thermal management, redundancy options, and clear serviceability contribute to a low total cost of ownership in demanding telecom environments.
- Performance and compatibility across Cisco ONS 15454 MSTP ecosystems: As part of the Cisco DWDM framework, the amplifier delivers consistent channel performance with a focus on low noise figure and stable gain. It uses standard OSS, connectors, and transponder compatibility to integrate with existing mux/demux and ROADMs, enabling simplified network design and reduced spare parts inventory while delivering scalable capacity gains.
Technical Details of Cisco Optical Amplifier Module
- Specifications: Not publicly listed in this document. For exact values such as gain range, noise figure, saturation power, input/output power, connectors, dimensions, and power consumption, refer to the distributor catalog using the product UPC or SKU in your region.
How to install Cisco Optical Amplifier Module
Installing the Cisco Optical Amplifier Module within a Cisco ONS 15454 MSTP shelf should be performed by qualified personnel following standard telecom practices. Before starting, verify compatibility with your chassis, slot, and power arrangements, and ensure you have the appropriate ESD precautions in place. Use the following general steps as guidance for hot-swappable, field-ready deployment:
Step 1: Prepare the chassis and verify compatibility. Confirm that the ONS 15454 MSTP shelf and backplane support the optical amplifier module family, and check that you have the correct slot available for installation. Ensure the system is in a standby or maintenance window if required by your network policy.
Step 2: Power down or enable safe-swap mode if applicable. If your deployment supports hot-swapping, follow your vendor’s guidance to prepare the slot for removal or insertion without disrupting adjacent modules. Ground yourself to prevent electrostatic discharge and handle the module carefully by its edges.
Step 3: Install the amplifier module into the designated slot. Align connectors, slide the module into the backplane with a gentle, even push, and secure it using the standard latching or mounting mechanism. Confirm that the module is seated firmly and that any heat sinks or airflow channels are unobstructed.
Step 4: Connect input and output fiber paths. Use the appropriate single-mode fiber connectors and verify the fiber polarity and cleanliness of the contact surfaces. Route the fibers to minimize bend radius and avoid strain on connectors. Ensure that fiber trays, patch cords, and splice closures are properly secured and labeled.
Step 5: Power up and initialize. Reconnect power to the shelf and monitor the management interface for module recognition, health status, and initial calibration signals. Use Cisco management tools to verify that the amplifier is registered, channels are correctly enumerated, and the gain settings are within recommended ranges for your network.
Step 6: Validate performance and monitor ongoing health. After installation, perform a practical link test to verify OSNR, gain across representative channels, and overall link margin. Establish ongoing monitoring of input/output power, temperature, and fault indicators to ensure reliable operation and rapid fault isolation in the event of a fault.
Frequently asked questions
-
Q: What is the Cisco Optical Amplifier Module used for?
A: It is an amplifier card designed for Cisco ONS 15454 MSTP networks to boost optical signals in the C-band, extending reach and increasing capacity across metro, regional, and long-haul links.
-
Q: In which network environments is this module most beneficial?
A: It is beneficial for dense WDM metro rings, regional backbones, and long-haul links where fiber loss and channel counts require reliable amplification with minimal management overhead within the MSTP intelligent DWDM framework.
-
Q: Is the amplifier hot-swappable?
A: Yes, it is designed to integrate with Cisco ONS 15454 MSTP shelves in a way that supports field replacement with minimal downtime, subject to your system’s maintenance procedures and vendor guidance.
- Q: How does this module affect operating costs?
- Q: What management tools are used to monitor the amplifier?
A: By enabling longer spans, reducing regeneration needs, and simplifying network management through MSTP integration, the module can lower capital and operational expenditures over the life of the network.
A: The amplifier is managed within Cisco’s ONS 15454 MSTP management framework, leveraging standard SNMP-based monitoring and the MSTP engine for centralized visibility of gain, OSNR, power levels, and health status.
