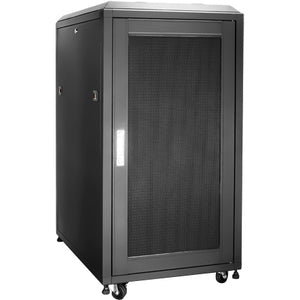

Claytek 22U 800mm Depth Rack-mount Server Cabinet
The WN Series Claytek cabinet is the pinnacle of secure, high-performance rack housing designed for demanding data centers, server rooms, and network deployments. Built with a robust combination of aluminum and steel, this 22U, 800 mm deep rack enclosure delivers the perfect balance of strength, accessibility, and thermal efficiency. Its vented doors and integrated cooling fans are engineered to promote optimal airflow across densely populated racks, helping to sustain reliable performance and reduce equipment warm-up during peak workloads. Security is a core focus—the cabinet is fully lockable from the front and rear doors as well as the side panels—giving you peace of mind against unauthorized access while still allowing technicians fast, unobstructed service when needed. The WN Series is designed to support scalable IT environments, delivering a durable, corrosion-resistant finish and a modular design that accommodates current gear and future expansion with minimal effort. This cabinet is an ideal solution for housing servers, storage devices, patch panels, and a wide range of network devices in a compact, organized, and visually clean enclosure.
- Optimized 22U capacity in an 800 mm deep form factor: Provides generous vertical space for modern servers, storage arrays, and network components while preserving airflow and straightforward cable management. Ideal for dense rack deployments where space efficiency matters.
- Rugged aluminum/steel construction: A durable chassis combines lightweight aluminum with a sturdy steel frame to withstand daily rack use in data centers, edge locations, and telecommunication facilities without sacrificing maneuverability during setup.
- Effective cooling and airflow: Vented front and rear doors paired with integrated cooling fans promote consistent airflow, helping dissipate heat from hot-swappable drives, high-density blades, and busy switches, ultimately extending hardware lifespan.
- Full security and access control: Front and rear doors, along with side panels, are all lockable to prevent tampering while still offering convenient maintenance access when required by IT staff or authorized contractors.
- 19-inch equipment compatibility and modularity: Designed to support standard 19-inch equipment with adjustable mounting rails and accessory-ready design, enabling flexible configurations, tidy cabling, and future upgrades.
Technical Details of Claytek 22U 800mm Depth Rack-mount Server Cabinet
- U-Height: 22U
- Depth: 800 mm
- Construction: Aluminum body with steel chassis for strength and lighter weight
- Doors and panels: Ventilated front and rear doors; removable side panels
- Security: Front, rear doors and side panels are fully lockable to prevent unauthorized access
- Ventilation and cooling: Integrated cooling fans and vented panels to improve airflow and heat dissipation
- Rail system: Includes adjustable 19-inch mounting rails compatible with standard rack equipment
- Finish: Durable powder-coated surface designed for high-use data center environments
- Compatibility: Suitable for standard 19-inch equipment, including servers, storage, switches, and patch panels
How to install Claytek 22U 800mm Depth Rack-mount Server Cabinet
- Choose a stable, level installation location with adequate floor loading capacity and sufficient clearance for airflow and cable routing around the cabinet.
- Unpack the cabinet and verify all components are present, including the rails, cage nuts, screws, doors, and side panels, before beginning assembly or installation.
- Install the adjustable 19-inch mounting rails at the desired height using the provided hardware, ensuring rails are horizontally level to support equipment securely.
- Mount your equipment from bottom to top, using cage nuts and screws to secure each device; plan for proper air intake and exhaust paths and allow space for cable management behind equipment.
- Attach side panels and secure doors; route power, data, and management cables cleanly with cable organizers to maximize cooling efficiency and ease maintenance access.
Frequently asked questions
-
Q: What does 22U capacity mean?
A: It denotes the vertical space inside the cabinet, measured in rack units (1U = 1.75 inches). A 22U cabinet provides ample room for multiple servers, storage devices, and network gear while leaving space for cabling and airflow.
-
Q: Is the cabinet secure?
A: Yes. The cabinet features lockable front and rear doors as well as lockable side panels to ensure unauthorized access is prevented; keys or compatible locking systems can be used for secure operation.
-
Q: Is it compatible with standard 19-inch equipment?
A: Absolutely. The cabinet is designed to accommodate standard 19-inch rack gear and accessories with adjustable rails that simplify installation and future upgrades.
-
Q: How does the cooling system work?
A: The cabinet uses vented doors and integrated cooling fans to promote airflow through the enclosure, helping to manage heat from dense equipment configurations and maintain reliable operating temperatures.
-
Q: Can I add accessories later?
A: Yes. The WN Series supports a range of compatible accessories such as cable management trays, fan trays, power distribution units (PDUs), and lockable rails to tailor the enclosure to specific deployments.
