Description

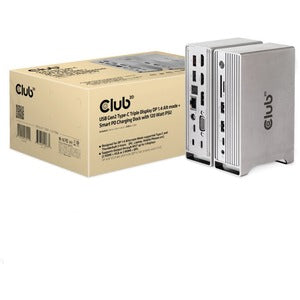

The Club 3D CSV-1568 USB Gen2 Type-C Docking Station is a premium all-in-one hub designed to transform a single USB-C port into a powerful workstation companion. Built for today’s multi-display setups and demanding peripherals, this docking station combines video output, fast data transfer, reliable power delivery, wired networking, and high-quality audio into a compact chassis. With DP Alt Mode and MST support, it is capable of driving multiple displays while keeping your laptop powered and connected. The 120-watt power supply ensures robust PD charging for laptops and other devices, so you can work, create, and collaborate without worrying about battery life. Whether you’re a creator, coder, designer, or business professional, this dock is engineered to streamline your workflow and elevate productivity.
- Quad video outputs with MST for multiple displays - The CSV-1568 provides four video outputs and can drive up to three displays simultaneously via MST mode, enabling expansive desktop real estate for data analysis, design work, or immersive multimedia setups. DP Alt Mode on the USB-C host delivers reliable, high-bandwidth video transmission for crisp, smooth visuals across compatible monitors.
- Four USB data ports for peripherals and storage - Expand your accessory ecosystem with four high-speed data ports (including USB-A options) to connect keyboards, mice, external drives, dongles, and other essential peripherals. This arrangement keeps your primary laptop ports free for critical tasks while the dock handles the rest.
- Smart PD charging up to 120W - The dock ships with a 120W power supply to deliver robust Power Delivery to your host laptop and downstream devices. This ensures fast recharging, sustained performance during intensive workloads, and the ability to run demanding software without interruption.
- Gigabit Ethernet and integrated audio - A dedicated Ethernet port provides reliable, low-latency network connectivity ideal for professional workflows, video conferencing, and large file transfers. An integrated audio path supports microphone and headphone use, delivering clean digital-to-analog conversion for calls and multimedia projects.
- All-in-one design with easy setup - The CSV-1568 consolidates power, video, data, networking, and audio into a single, plug-and-play dock. Its streamlined form factor is designed to fit neatly on a desk, reducing cable clutter while delivering enterprise-grade connectivity. Compatible with a wide range of USB-C laptops and devices, it makes docking effortless and efficient for home offices and corporate environments alike.
Technical Details of Club 3D CSV-1568 Docking Station
- USB Interface: USB Gen2 Type-C upstream connection with DP Alt Mode for external display support.
- Video Outputs: Four video outputs with MST capability; up to three displays active simultaneously under MST mode, depending on host capabilities and display configuration.
- Display Technology: DP-based video transmission designed for high-resolution, smooth visuals across compatible monitors.
- Power Delivery: Integrated 120W power supply for PD charging to the host device and connected peripherals.
- USB Ports: Four USB data ports positioned for convenient access to peripherals and storage devices.
- Networking: Gigabit Ethernet for stable, high-speed wired connectivity.
- Audio: Integrated audio path for microphone and headphones, enabling clear voice capture and playback.
- Platform Compatibility: Designed to work with USB-C hosts that support DP Alt Mode and Power Delivery, providing broad compatibility across Windows, macOS, and ChromeOS devices.
- Build and Design: Compact, durable enclosure intended for desk use with minimal footprint and cable management benefits.
how to install Club 3D CSV-1568 Docking Station
- Place the docking station on your workspace and ensure it is near a power outlet. Connect the included 120W power adapter to the dock and plug it into a reliable power source to enable full PD charging and operation.
- Connect your USB-C laptop or device to the docking station’s USB-C upstream port using a USB-C cable that supports DP Alt Mode and Power Delivery. This enables video, data, and charging through a single cable.
- Attach your monitors to the dock’s DisplayPort outputs. If you are using MST, arrange the displays according to your preferred layout. Confirm that the monitors are set to the correct input source to receive the signal from the dock.
- Connect USB peripherals—keyboard, mouse, storage drives, and other devices—to the dock’s USB ports. This keeps your laptop’s own ports free for other tasks and ensures fast, stable data transfer.
- Connect Ethernet and any audio devices (headphones or external speakers) to the respective ports on the dock. Turn on your laptop and wait for it to recognize the new display and USB devices; most setups will be plug-and-play without requiring drivers.
Frequently asked questions
-
Q: How many displays can I run with the CSV-1568?
A: The dock supports four video streams and can drive up to three displays simultaneously via MST mode, with the exact configuration depending on the host computer’s capabilities and graphics adapter.
-
Q: Does this docking station charge my laptop?
A: Yes. It includes a 120W power supply designed to deliver Power Delivery to the connected host device and support charging for connected peripherals as needed.
-
Q: Which systems are supported?
A: The CSV-1568 is designed for broad compatibility with USB-C hosts that support DP Alt Mode and PD. It works with most Windows, macOS, and ChromeOS devices that provide USB-C with video output and power delivery.
-
Q: Is the setup plug-and-play?
A: In most cases, yes. The dock is designed to be driver-free on modern operating systems, offering a straightforward, plug-and-play experience for quick deployment.
-
Q: Can I use the dock for high-speed data transfers?
A: The dock provides multiple USB data ports for peripherals and storage, enabling efficient data transfer alongside video and charging tasks. Performance will depend on the connected devices and host capabilities.
