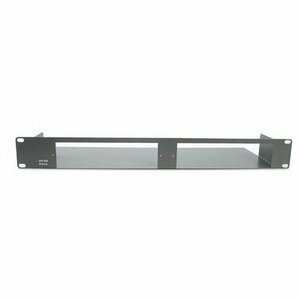

D-Link DPS-800 2-Slot Chassis for DPS-200/300/500/500DC – Solid Metal Housing for Reliable Expansion

The D-Link DPS-800 2-Slot Chassis is a premium, rugged housing designed to securely hold and organize DPS-200, DPS-300, DPS-500, and DPS-500DC modules. Built with a solid metal chassis, it provides dependable expansion for power and distribution needs in network environments. This 2-slot chassis combines durability, modularity, and a streamlined design to support growing deployments—from small offices to SMBs—without compromising on performance or reliability.

• Premium all-metal construction: Crafted from solid metal with a durable finish, the DPS-800 chassis delivers exceptional rigidity, vibration resistance, and long-term durability in challenging environments. A robust housing helps protect internal components and ensures stable operation in rack or desktop setups.
• 2-slot modular versatility: Designed to accommodate two DPS-200/300/500/500DC modules, enabling flexible power distribution configurations. This compact chassis makes it easy to scale as your network grows, keeping essential components organized and accessible.
• Secure, clean integration: The front-loading design and secure latching system simplify maintenance while preserving a clean, professional appearance in equipment rooms. Front-access slots minimize downtime during module installation or replacement.
• Thermal and airflow efficiency: Ventilated panels and thoughtful internal layout promote airflow, helping to manage heat generated by DPS modules. Efficient cooling supports stable performance and extends the lifespan of individual power distribution components.
• Flexible deployment options: The DPS-800 supports both desktop and rack-mount deployments with versatile mounting options and cable management accommodations. Whether placed on a workbench or integrated into a rack, it delivers reliable, organized power distribution for your network infrastructure.

Technical Details of D-Link DPS-800 2-Slot Chassis

• Model: DPS-800 2-slot Chassis
• Compatibility: DPS-200, DPS-300, DPS-500, DPS-500DC modules
• Housing material: Solid metal construction with protective finish
• Slots: 2-slot chassis for modular expansion
• Design characteristics: Front-accessible slots, secure latching, reinforced panels
• Mounting options: Desktop or rack-mount compatible (with appropriate hardware or accessories)
• Ventilation: Ventilated panels to support effective cooling and airflow
• Installation convenience: Lightweight, durable design with straightforward access to modules for quick upgrades

How to install D-Link DPS-800 2-Slot Chassis

Installing the DPS-800 is a straightforward process that enhances your network’s power distribution capabilities while keeping equipment organized and accessible. Follow these general steps to install the chassis with your DPS-200/300/500/500DC modules:

1. Prepare the workspace: Power down and unplug any connected devices. Ensure you have a clear, clean workspace with adequate ventilation. If you’re mounting in a rack, have the appropriate rack ears or mounting hardware ready.
2. Position the chassis: Place the DPS-800 on a stable surface or align it with the rack rails if you’re mounting it in a 19-inch rack. Confirm the orientation so that the front-facing slots align with your intended module access points.
3. Install modules: Slide the DPS-200, DPS-300, DPS-500, or DPS-500DC modules into the two available slots. Ensure each module seats fully with a secure connection. Avoid forcing modules; they should click or sit firmly into place.
4. Secure and route cabling: Use the chassis’s cable management options to organize any power or data cabling. Keep cables away from vents to maintain optimal airflow and reduce heat buildup.
5. Mount and finalize: If using a rack, secure the DPS-800 in place with the appropriate screws. Check that doors or panels close cleanly and that all modules are firmly seated. Recheck all connections before powering on.
6. Power up and test: Reconnect power and test each DPS module to confirm proper operation. Verify that indicators or LEDs reflect normal status and that the system recognizes both installed modules.

Frequently asked questions

• What does the DPS-800 chassis do? It provides a robust, dual-slot housing for DPS-200/300/500/500DC modules, enabling scalable power distribution and organized modular deployment in both desktop and rack environments.
• Is the DPS-800 compatible with all DPS modules? Yes, it is designed to accommodate DPS-200, DPS-300, DPS-500, and DPS-500DC modules, offering a compact, secure housing for expansion.
• Can I mount the DPS-800 in a rack? The DPS-800 is designed for versatile deployment, including desktop use and rack-mount setups with the appropriate mounting hardware.
• Does the chassis improve cooling? The chassis features vented panels and an airflow-friendly internal layout to help manage heat produced by the installed modules, supporting stable performance.
• How many modules can I install? The DPS-800 supports two DPS modules, allowing you to build a compact yet effective power distribution configuration.
• Is there any special maintenance required? Regular inspection of module seating, connectors, and cable routing is sufficient. Keep the chassis clean and free of dust to maintain optimal airflow.

Whether you are expanding a small office network, upgrading a server room, or seeking a reliable chassis for modular DPS power distribution, the DPS-800 2-Slot Chassis offers a balance of durability, modularity, and practical design. The solid metal housing provides an enduring shell for critical components, while the two-slot configuration keeps your DPS modules neatly organized and easily accessible for routine maintenance or upgrades. Its compatibility with DPS-200/300/500/500DC ensures a seamless integration path for a variety of deployments, enabling you to tailor your power distribution to match current needs and future growth.
