Description

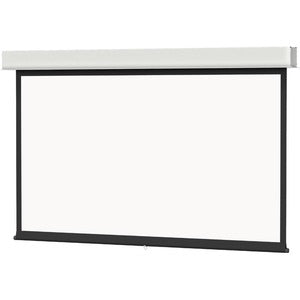

Da-Lite Advantage Manual With CSR Series Projection Screen - Ceiling-Recessed with Plenum-Rated Case - 113in Screen
Experience brilliant, uniform image quality with the Da-Lite Advantage Manual CSR Series Projection Screen. Engineered for seamless ceiling installations, this model combines the clean look of a recessed housing with the practical benefits of a built-in trim that hides rough openings. The 113-inch diagonal screen delivers a commanding, cinematic viewing experience for classrooms, conference rooms, lecture halls, and home theater setups alike. The CSR (Ceiling Recessed with Plenum) design ensures safe, code-compliant installation in plenum spaces, while the manual pull-down mechanism provides easy, reliable operation for daily use. With its durable construction and premium projection surface, the Da-Lite Advantage CSR Series is built to stand up to frequent use and deliver sharp, accurate images over time.
- Ceiling-recessed with built-in trim: The Advantage CSR Series eliminates the need for finishing trim after installation. Its integrated ceiling trim conceals the rough opening, delivering a professional, clean aesthetic straight out of the box.
- 113-inch diagonal screen for flexible viewing: Large enough to fill mid-to-large rooms, the 113" screen supports engaging presentations, immersive films, and impactful demonstrations without sacrificing clarity.
- Plenum-rated housing for safe ceiling installations: The plenum-rated case is designed to meet building and safety codes in air-handling spaces, making it suitable for classrooms, auditoriums, and corporate environments where code compliance matters.
- Manual pull-down operation: A dependable, quiet manual system provides smooth, controlled screen deployment and retraction, with secure locking at any desired height for precise image alignment.
- Premium projection surface for crisp images: The matte white projection surface delivers bright, uniform brightness with wide viewing angles, ensuring legible text and vivid color reproduction across the screen.
Technical Details of Da-Lite Advantage Manual With CSR Series Projection Screen - 113in
- Screen Diagonal: 113 inches
- Projection Surface: Matte white that provides neutral color rendition and wide viewing angles
- Operation: Manual pull-down with locking mechanism
- Housing: Plenum-rated ceiling-recessed case for safe installation in air handling spaces
- Series: CSR (Ceiling Recessed with Plenum) – part of the Da-Lite Advantage family
- Installation Type: Ceiling-recessed with built-in trim to conceal rough opening
- Brand: Da-Lite
How to Install Da-Lite Advantage CSR Series Projection Screen
- Plan the rough opening in the ceiling to accommodate the CSR housing with the integrated trim. Verify structural support and confirm clearance for the plenum-rated case and the retracted screen.
- Turn off power in the installation area and locate ceiling joists to determine the best mounting points. Mark the opening and ensure it aligns with the screen’s housing dimensions.
- Carefully cut the ceiling opening to the required specification. Remove any debris and verify clean edges to ensure a snug fit for the housing and trim.
- Install the CSR housing into the ceiling opening. Secure it with the manufacturer’s mounting brackets and hardware, ensuring the unit is square and level for proper operation and appearance.
- Route any required wiring for ancillary devices (if applicable) and ensure cables are neatly organized and do not interfere with the screen operation or the plenum environment.
- Fit the integrated ceiling trim and secure it to conceal the rough opening. Confirm a seamless transition between the ceiling surface and the screen housing for a professional finished look.
- Unpack the screen, align it with the housing, and attach the mounting components as specified by Da-Lite documentation. Ensure the screen retracts smoothly without obstruction.
- Test operation by pulling the screen down to the desired height and releasing it to confirm secure locking and smooth retraction. Check alignment, image height, and vertical centering from the seating area.
- Final checks: inspect for any visible gaps around the trim, verify plenum compliance if required by local codes, and ensure the installation is clean, secure, and ready for daily use.
Frequently Asked Questions
- What is the Da-Lite Advantage CSR Series? A manual projection screen designed for ceiling-recessed installations with a plenum-rated housing. It features integrated ceiling trim to conceal openings and provide a clean, professional appearance after installation.
- What screen size is included in this model? This model features a 113-inch diagonal projection screen, suitable for mid-to-large rooms and audiences.
- Is the housing plenum-rated? Yes. The CSR Series housing is plenum-rated to meet building and safety codes in air-handling spaces, making it appropriate for classrooms, theaters, and conference rooms.
- What type of projection surface does it use? The screen uses a matte white projection surface designed for bright, uniform image quality with wide viewing angles and accurate color reproduction.
- How is the screen operated? The screen is manually operated, providing reliable, quiet deployment and retraction with a secure locking mechanism at any height.
